8. To remove the coils from the burner
assembly:
a) Remove the burner assembly.
b) Disconnect the 2-wire and 3-wire con
-
nectors from the coil pins.
c) Remove the two screws from the
bracket, and lift the two coils off their
cores.
9. To remove the ignitor from the burner
assembly:
a) Remove the burner assembly.
b) Disconnect the 2-wire connector from
the ignitor harness.
c) Loosen the 5/16
˝ hex-head ignitor
screw, and remove the ignitor from the
bracket.

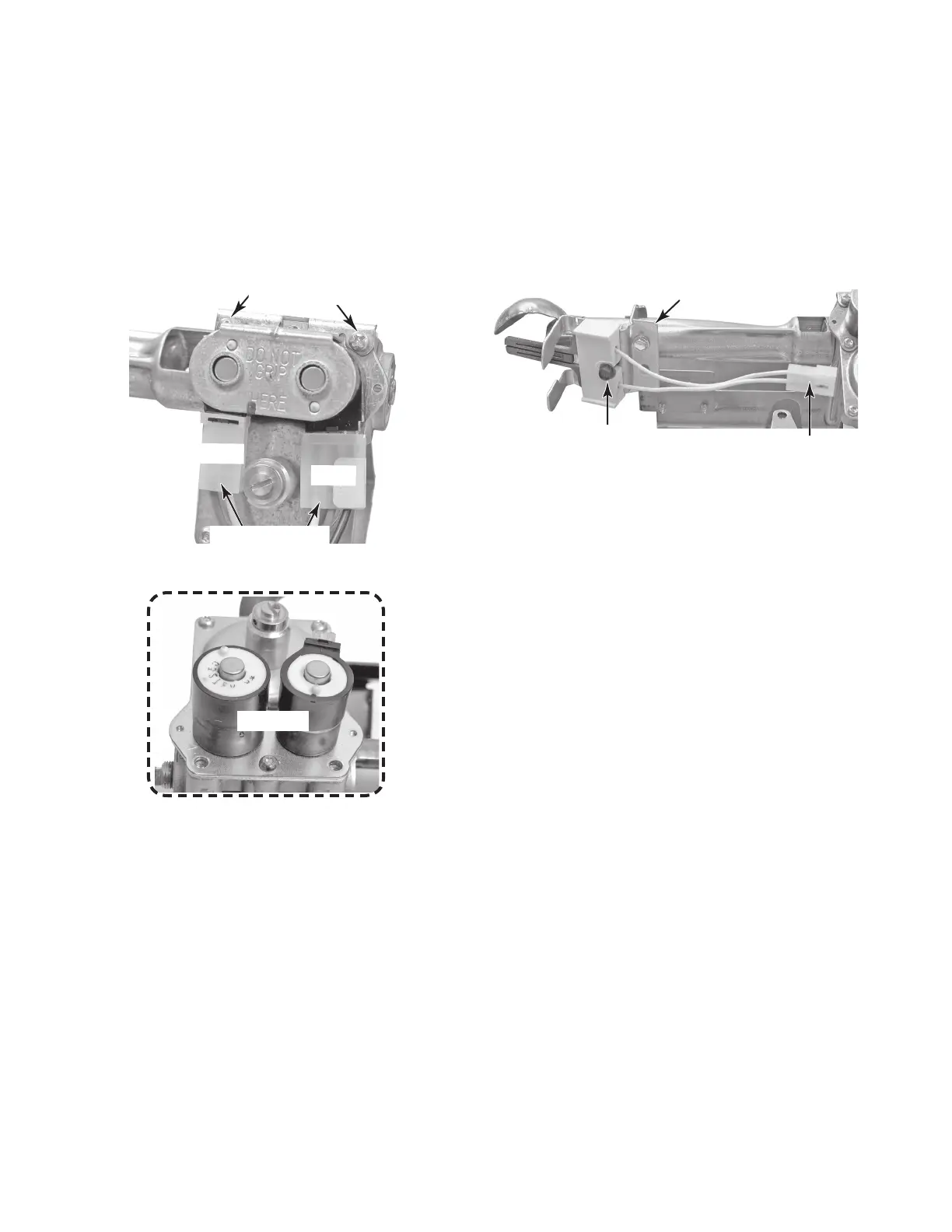

2 Coils
Ignitor Screw
Bracket
3-Pin
2-Pin
Coil Screws
Coil Connectors
Coil Assembly
Connector
To Next Page
