3. Connect ground wire (green or bare) of
direct wire cable to external ground con
-
ductor screw. Tighten screw.
5. Tighten strain relief screw.
6. Insert tab of terminal block cover into slot
of dryer rear panel. Secure cover with
hold-down screw.
7. You have completed your electrical con-
nection. Now go to “Venting Require
-
ments.”

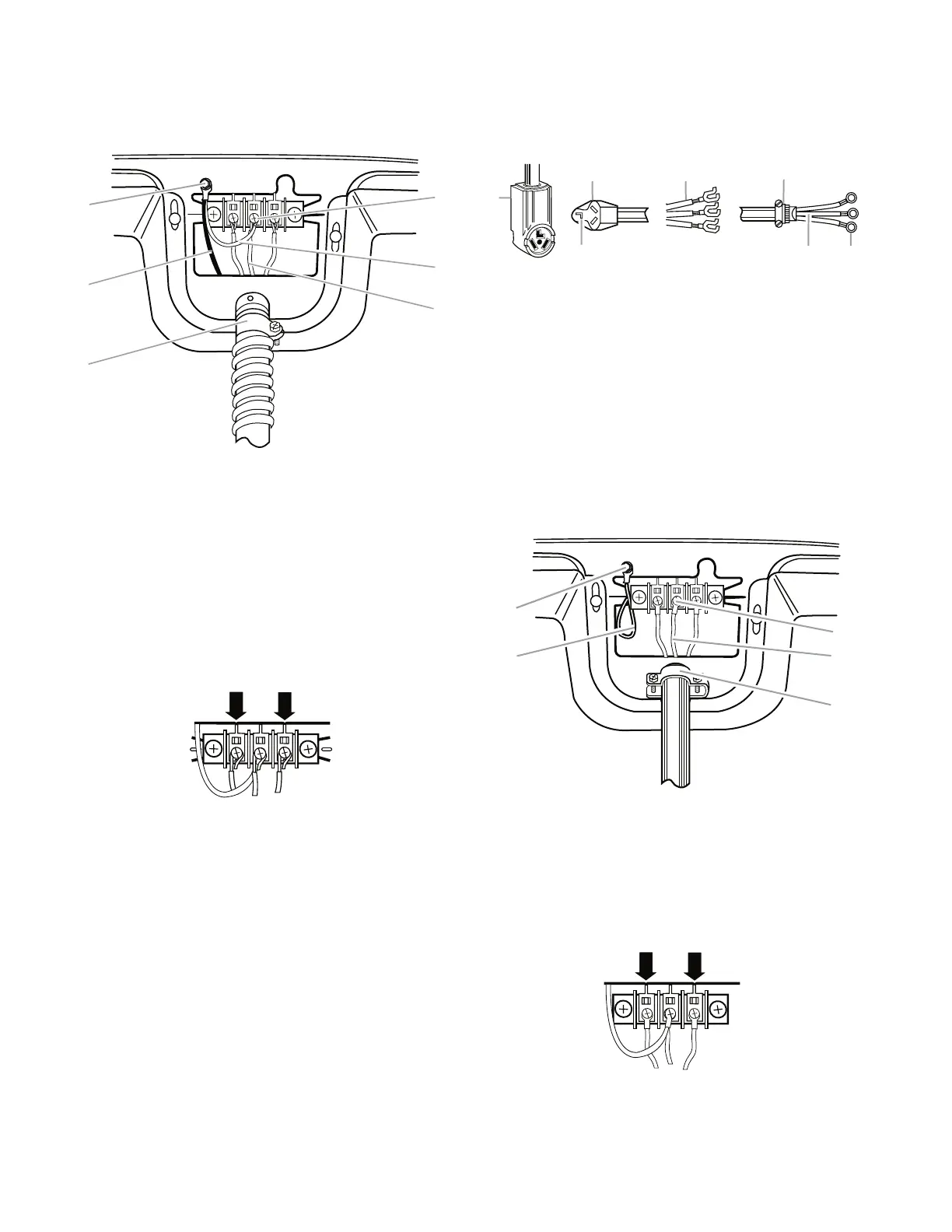

A. External ground conductor screw
B.
Ground wire (green or bare) of power supply cord
C.
¾" (1.9 cm) UL listed strain relief
D. Center silver-colored terminal block scre
w
E. Neutral ground wire
F. Neutral
wire (white or center wire)
A
B
C
D
E
F
4. Place the hooked ends of the other di-
rect wire cable wires under the outer ter
-
minal block screws (hooks facing right).
Squeeze hooked ends together. Tighten
screws.
3-wire connection: Power supply cord
Use where local codes permit connecting
cabinet-ground conductor to neutral wire.
A. 3-wire receptacle (NEMA type 10-30R)
B. 3-wire plug
C. Neutral
prong
D. Spade terminals with upturned ends
E.
³⁄
4
" (1.9 cm) UL listed strain relief
F. Ring terminal
s
G. Neutral wire (white or center wire)
A
B
D
C
E
F
G
1. Loosen or remove center silver-colored
terminal block screw.
2. Connect neutral wire (white or center
wire) of power supply cord to the center,
silver-colored terminal screw of the ter-
minal block. Tighten screw.
A. External ground conductor screw
B. Neutral ground wire
C. Center silver-colored terminal block scre
w
D. Neutral wire (white or
center wire)
E.
³⁄
4
" (1.9 cm) UL listed strain relief
A
B
C
D
E
3. Connect the other wires to outer terminal
block screws. Tighten screws.
