4-15

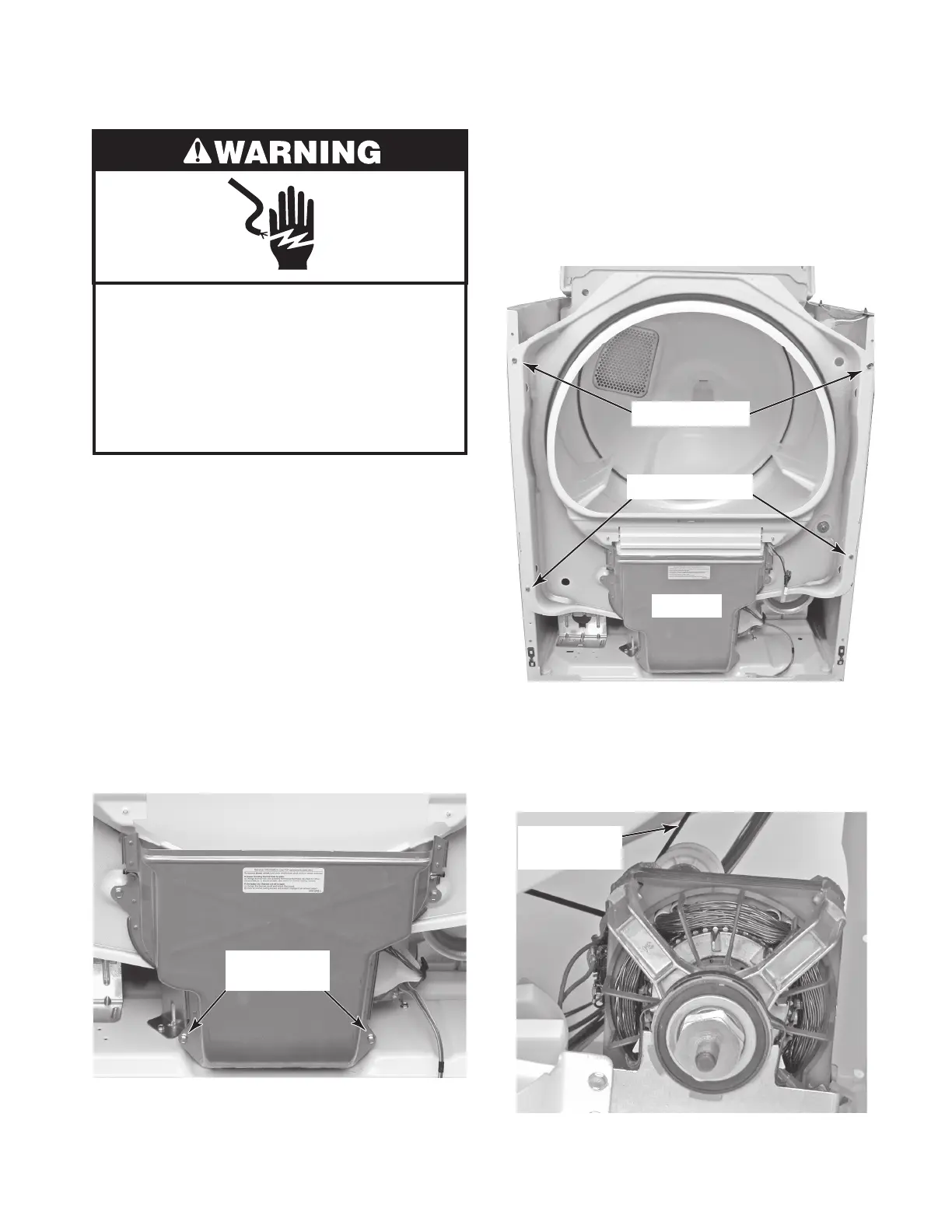

REMOVING THE BELT, DRUM, & ROLLERS
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug dryer or disconnect power.
2. Turn off gas supply to dryer.
3. To remove the belt and drum:
a) Open the dryer door and remove the
lint filter screen (see step 3 on page
4-5).
b) Remove the cabinet front (see page
4-6 for the procedure).
c) Disconnect the moisture sensor con
-
nector (see step 5 on page 4-5) from
the harness connector.
d) Remove the two bottom 5/16
˝ hex-
head screws from the blower air duct.
e) Loosen the two top screws and re
-
move the two bottom 5/16
˝ hex-head
screws from the front bulkhead, then
carefully remove the bulkhead and
bottom air duct from the front of the
unit.
Loosen Screws
Remove Screws
f) Reach around the back of the drive
motor and push the idler wheel arm to
relieve the spring tension on the belt,
then slide the belt off the idler and mo-
tor pulleys.
Remove Belt
From Pulleys
Bottom Air
Duct Screws
Air Duct
Continued on the next page.
