6-3
DIAGNOSTIC: Door Switch
Opening the door should cause a beep and
an alphanumeric number to be displayed.
Closing the door should cause a beep and
88
to be displayed.
If opening the door fails to cause a beep
and a number and letter to be displayed,
go to TEST #7.
DIAGNOSTIC: Moisture Sensor
Open the door and locate two metal strips
on the face of the lint screen housing. Bridge
these strips with a wet cloth or a finger.
If a beep is heard and an alphanumeric
number is displayed on the console, the
sensor is OK.
If not, or if a beep tone is heard before bridg-
ing the moisture strips, go to TEST #5.
•
•
•
Turns off all indicators and
exits diagnostic mode.
Start button turns on Dryer.

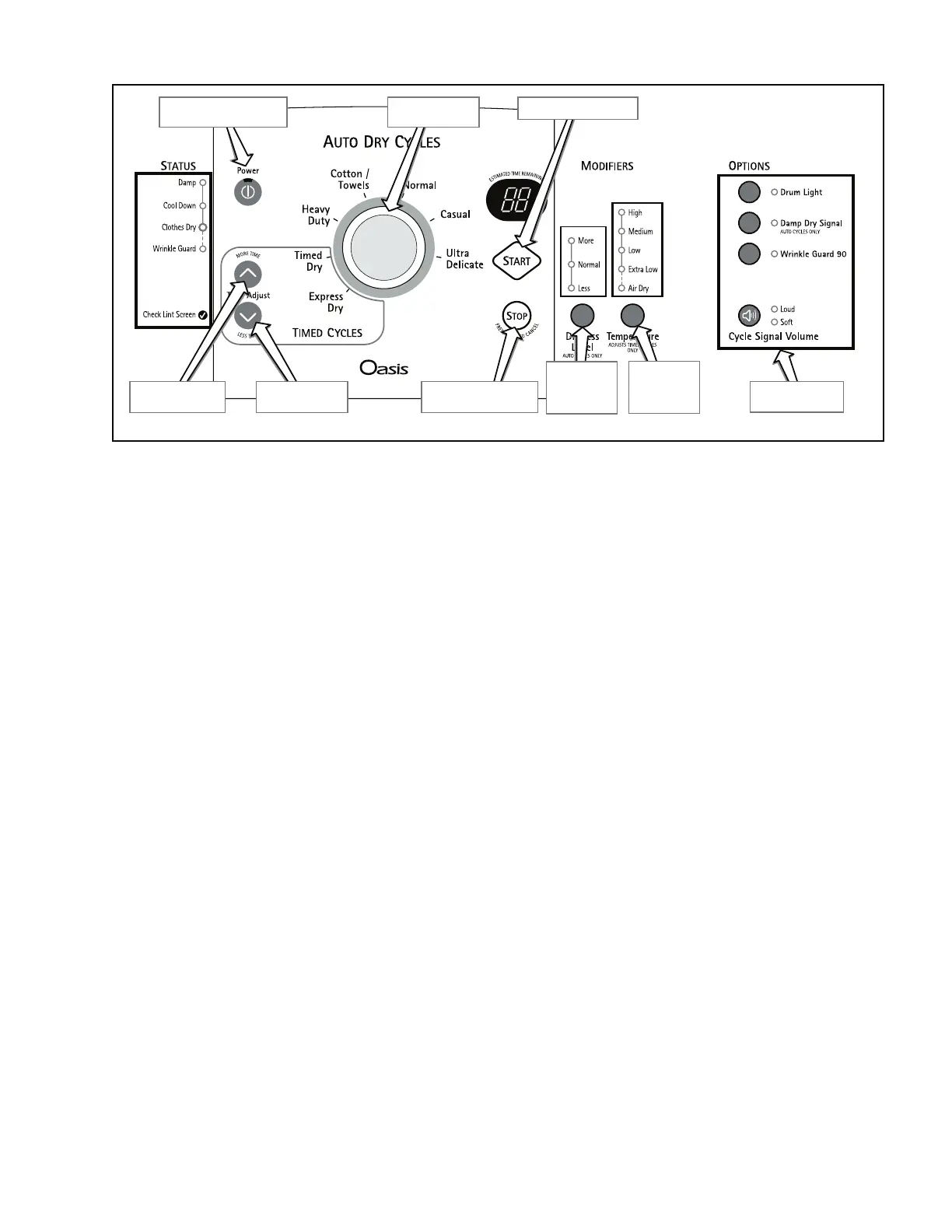

Figure 2.
“ Time”Less controls
right digit of display.
“More Time” controls
left digit of display.
Power button controls Status
indicators at left
Each button controls
its own indicators.
Rotating knob turns
off indicators
Dryness Level
button controls
all indicators
above button.
Temperature
bu
tton controls
all indicators
above button.
CONSOLE DIAGNOSTICS
DIAGNOSTIC: Motor, Heater,
And Console ID
Close the door. Press the Start button. The
motor and heater will turn on, and the display
will show one of the following console IDs:
A0, A2, A6, A7, A8, A9, or AA.
If none of the Console IDs above are dis-
played, replace the user interface assem
-
bly. See Accessing & Removing the Elec
-
tronic Assemblies.
If the motor does not turn on, go to TEST
#3a.
If no heat is detected, go to TEST #4.
•
•
•
To Next Page
