5-5

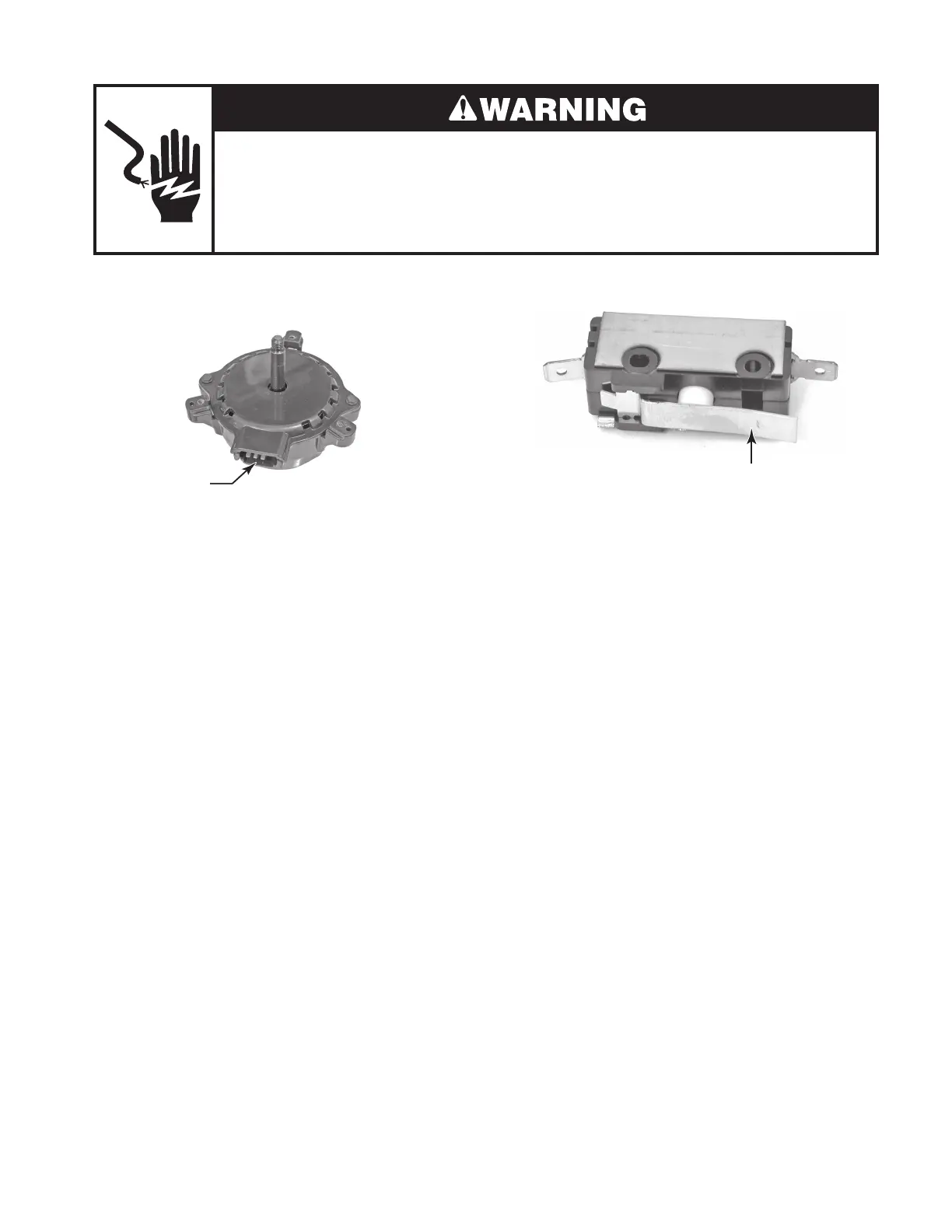

BELT SWITCH (N.O.)
Belt Switch Actuator
Refer to page 4-21 for the procedure for ac-
cessing the belt switch.
1. Unplug dryer or disconnect power.
2. Turn off gas supply to dryer.
3. Disconnect the two blue wires from the belt
switch terminals.
4. Set the ohmmeter to the R x 1 scale.
5. Touch the ohmmeter test leads to belt
switch terminals. The meter should indi
-
cate a closed circuit (0
Ω).
6. Press the switch actuator, and the meter
should indicate an open circuit (infinite).
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
BLOWER MOTOR
(DUAL MOTOR MODELS)
Refer to page 4-19 for the procedure for ac-
cessing the blower motor.
1. Unplug dryer or disconnect power.
2. Turn off gas supply to dryer.
3. Disconnect the connector from the motor
terminals.
4. Set the ohmmeter to the R x 1 scale.
5. Touch the ohmmeter test leads to any two
motor terminals. The meter should indicate
between 45 and 65
Ω.
Terminals
To Next Page
