5-4

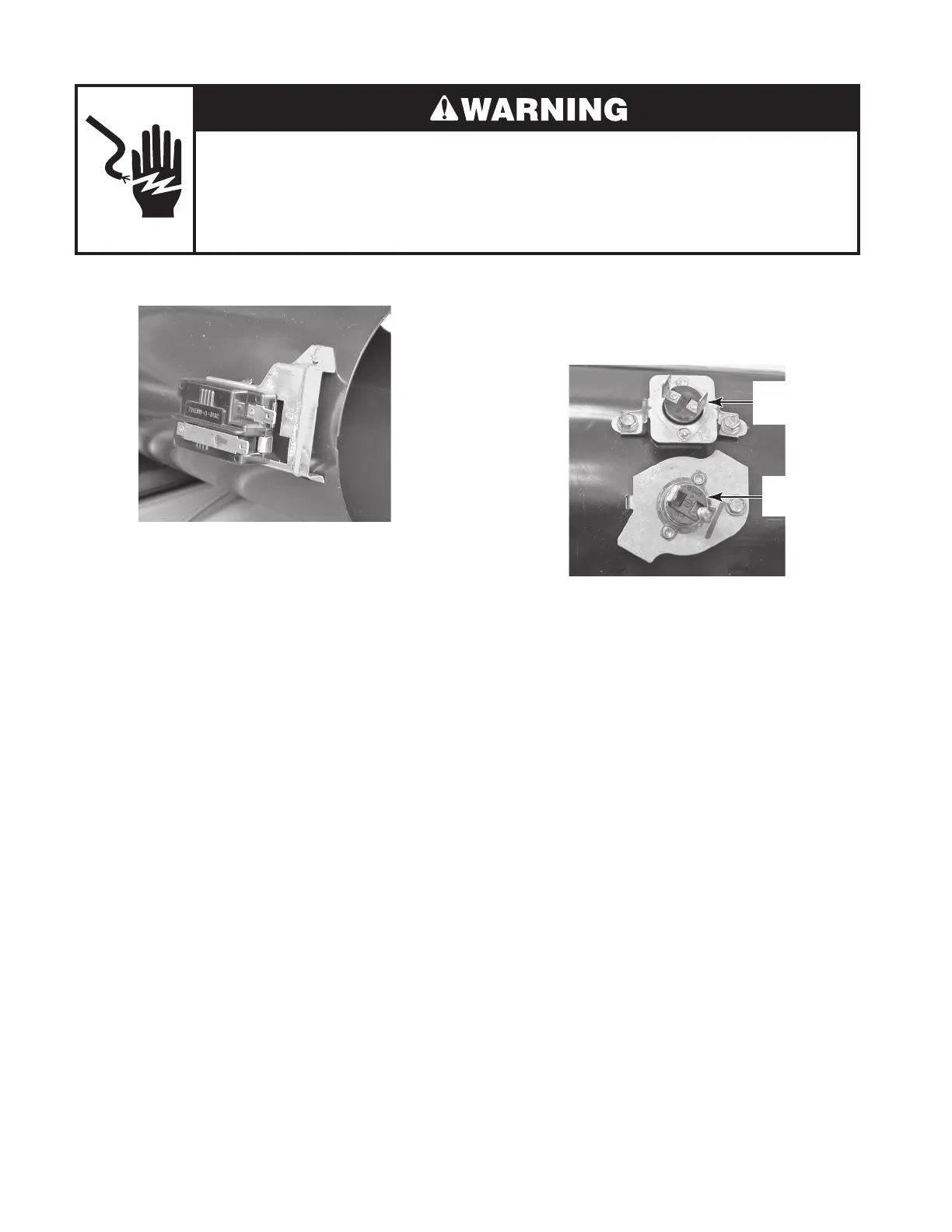

FLAME SENSOR
Refer to page 4-12 for the procedure for ac-
cessing the flame sensor.
1. Unplug dryer or disconnect power.
2. Turn off gas supply to dryer.
3. Disconnect the wire connectors from the
flame sensor terminals.
4. Set the ohmmeter to the R x 1 scale.
5. Touch the ohmmeter test leads to the
flame sensor terminals. The meter should
indicate a closed circuit (0 Ω).
HIGH-LIMIT THERMOSTAT &
THERMAL CUTOFF
(GAS MODELS ONLY)
Refer to page 4-12 for the procedure for ac-
cessing the high-limit thermostat and thermal
cutoff.
1. Unplug dryer or disconnect power.
2. Turn off gas supply to dryer.
3. Disconnect the wire connectors from the
high-limit thermostat or thermal cutoff ter-
minals.
4. Set the ohmmeter to the R x 1 scale.
5. Touch the ohmmeter test leads to the
high-limit thermostat or the thermal cut
-
off terminals. The meter should indicate a
closed circuit (0
Ω) for both components.
High-Limit
Thermostat
Thermal
Cutoff
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
