4-19

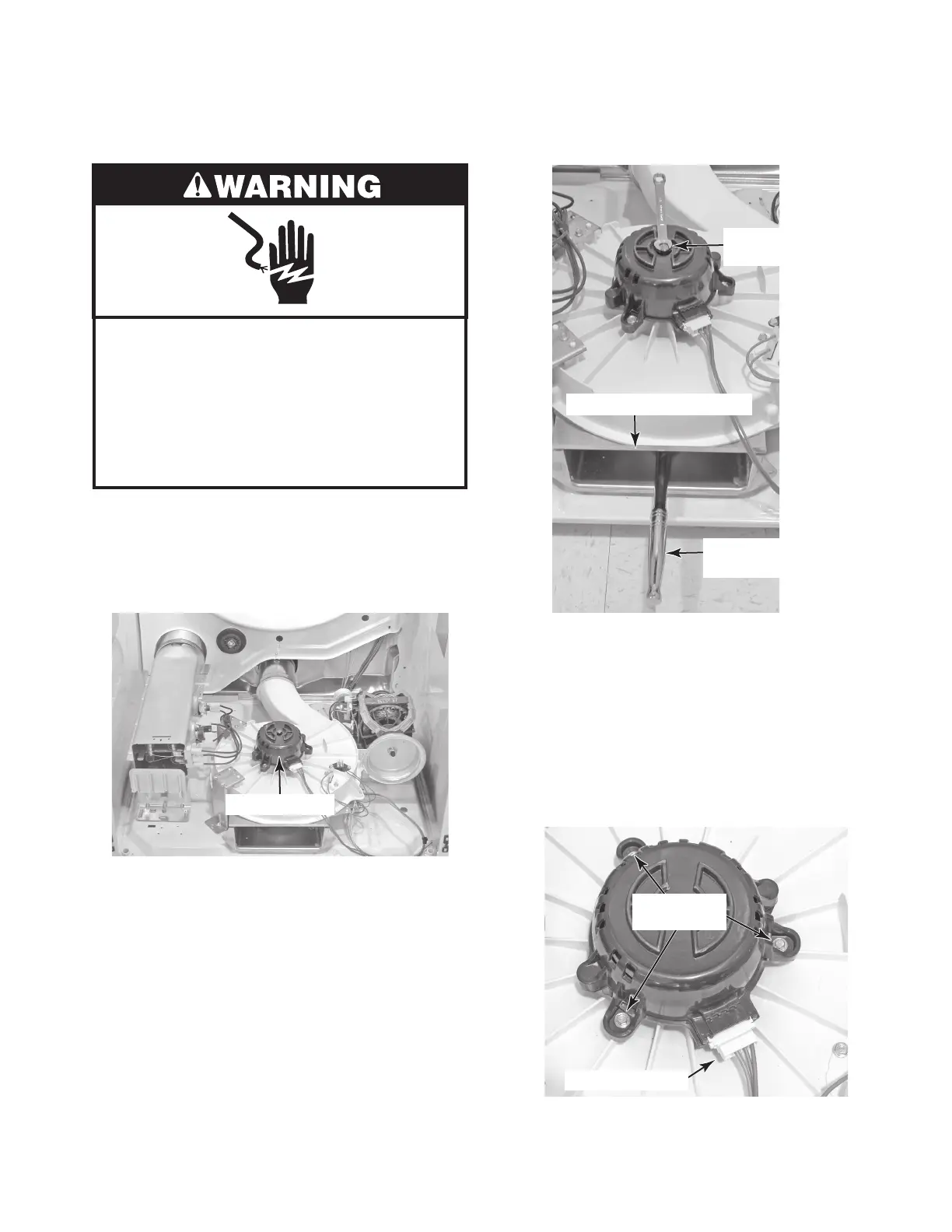

REMOVING THE BLOWER MOTOR AND
THE BLOWER FAN (DUAL MOTOR MODELS)
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug dryer or disconnect power.
2. Turn off gas supply to dryer.
3. Remove the belt and drum from the dryer
(see page 4-15 for the procedure).
Blower Motor
d) Press in on the two side locking tabs
and disconnect the motor connector
from the motor terminals.
e) Remove the three hex-head screws
from the blower motor.
f) Lift the blower motor and remove the
blower fan from the motor shaft, then
remove the motor from the housing.
Blower Motor
Screws
Motor Connector
4. To remove the blower motor:
a) Insert the 1/2˝ ratchet handle drive
into the center opening of the blower
wheel through the front duct of the
blower fan housing.
b) Hold the top of the blower motor shaft
with a 3/8˝ open end wrench (see the
top right photo).
c) Loosen the blower fan until it bottoms
out against the housing. NOTE: This
is a left-hand thread.
3/8˝ Open
End Wrench
1/2˝ Ratchet
Handle Drive
Blower Fan Duct Opening
Continued on the next page.
To Next Page
