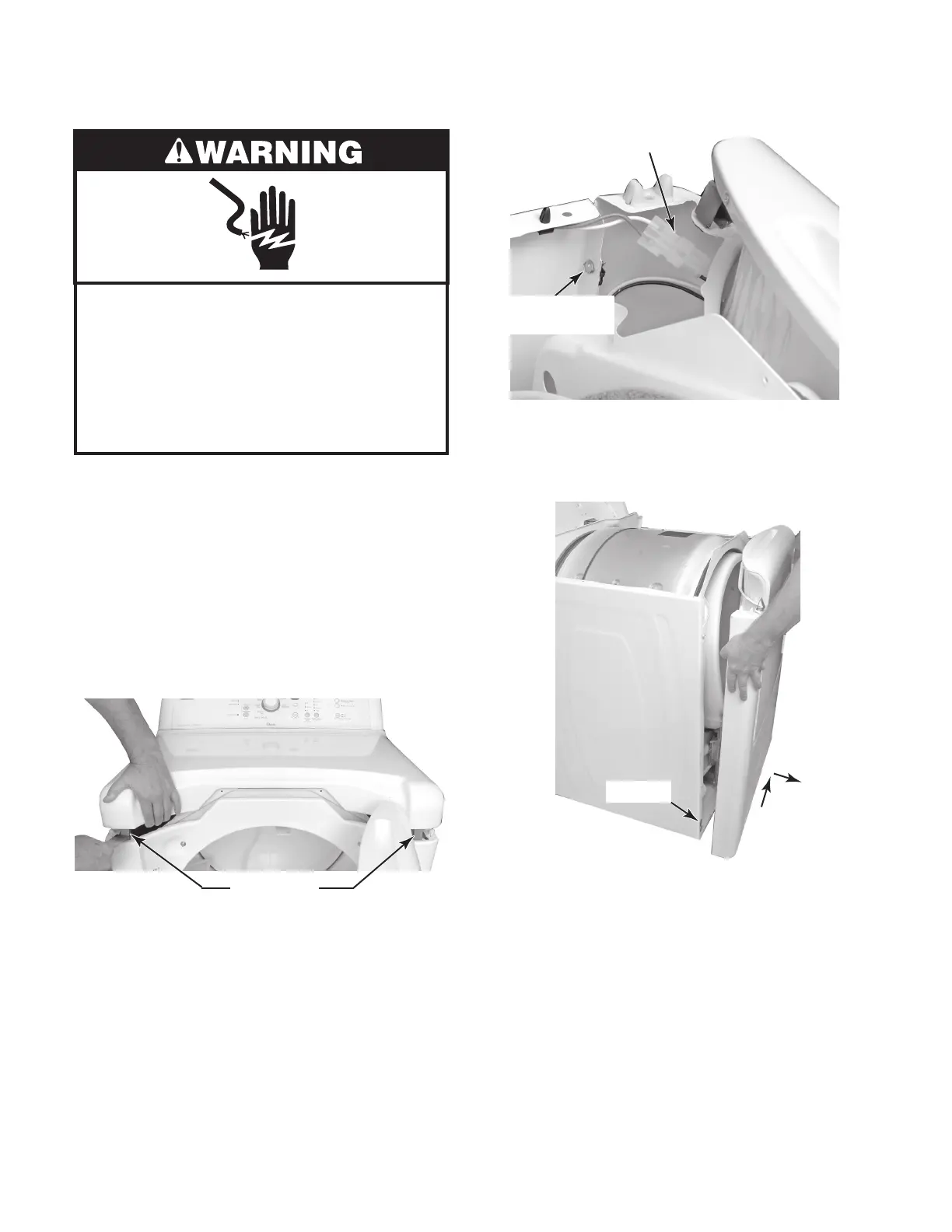

REMOVING THE CABINET FRONT AND DOOR SWITCH
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug dryer or disconnect power.
2. Turn off gas supply to dryer.
3. Open the dryer door.
4. To remove the cabinet front:
a) While lifting the cabinet top, use a put-
ty knife, and press against the left and
right spring clips to release them from
the top. Lean the cabinet top against
the wall, or prop it up.
Spring Clips
b) Remove the two 5/16˝ hex-head screws
from the cabinet front (see the top right
photo).
c) Disconnect the door switch connector
from the harness connector.
d) Lift the front panel of the cabinet, un
-
hook it from the bottom two hangers,
and remove it.
Cabinet Front
Screw (1 of 2)
Door Switch Connector
Hanger
Lift
Pull
Out
To Next Page
