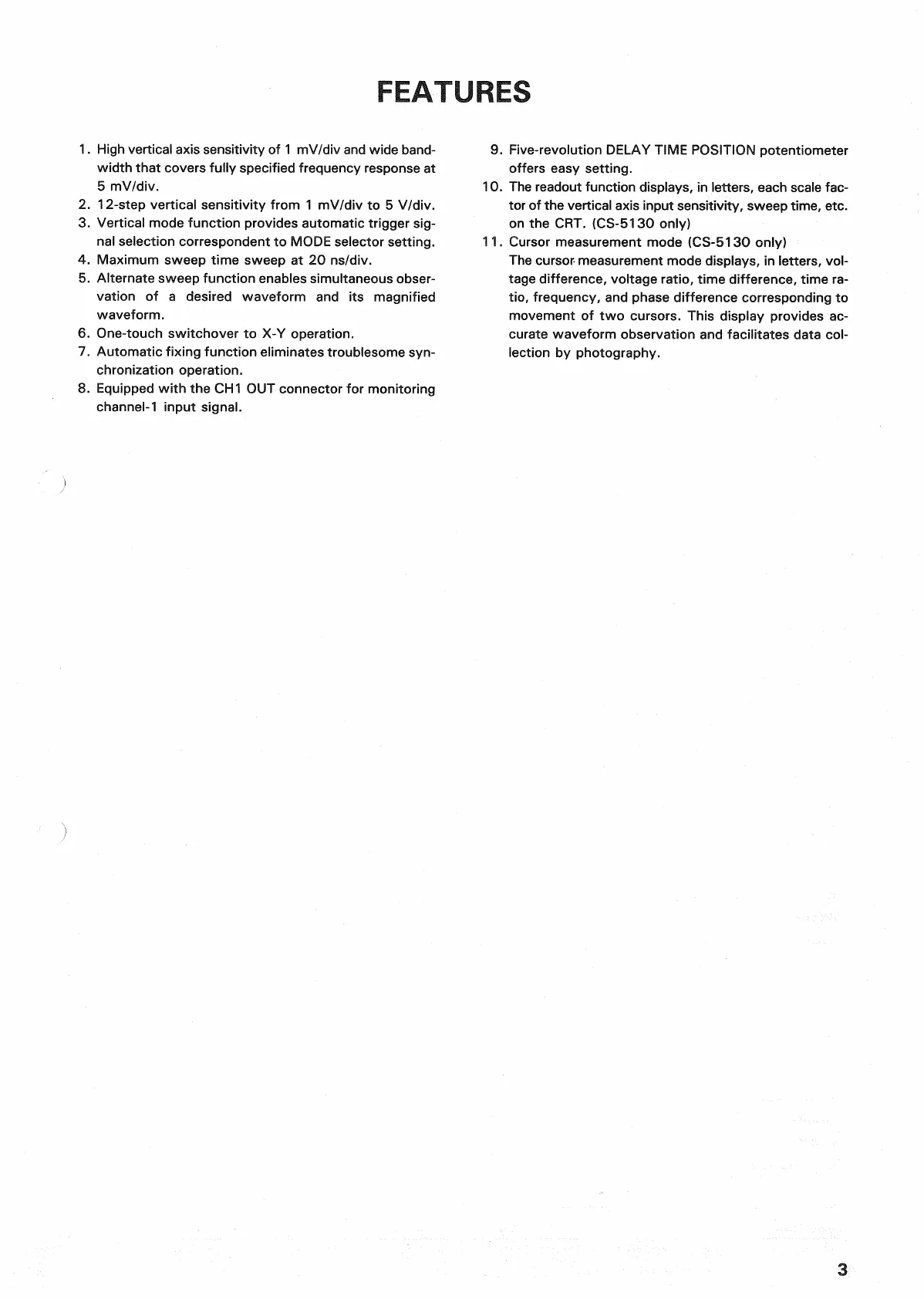

FEATURES
1.
High vertical
axis
sensitivity of
1
mV/div and wide band-
width
that covers fully specified frequency response at
5
mV/div.
2.
12-step vertical sensitivity
from
1 mV/div to 5 V/div.
3.
Vertical mode function provides automatic trigger
sig-
nal
selection correspondent to MODE selector setting.
4.
Maximum sweep time sweep at 20 ns/div.
5.
Alternate sweep function enables simultaneous obser-
vation of a desired waveform and its magnified
waveform.
6.
One-touch switchover to X-Y operation.
7.
Automatic fixing function eliminates troublesome
syn-
chronization operation.
8.
Equipped
with
the CH1 OUT connector for
monitoring
channel-1
input
signal.
9.
Five-revolution
DELAY
TIME
POSITION
potentiometer
offers
easy
setting.
10.
The readout function displays, in letters, each
scale
fac-
tor of the vertical
axis
input
sensitivity, sweep time, etc.
on the
CRT.
(CS-5130
only)
11.
Cursor measurement mode
(CS-5130
only)
The
cursor measurement mode displays, in letters, vol-
tage difference, voltage ratio, time difference, time ra-
tio, frequency, and phase difference corresponding to
movement of two cursors.
This
display provides ac-
curate waveform observation and facilitates data col-
lection by photography.
3
