Kenwood CS-5130 User Manual

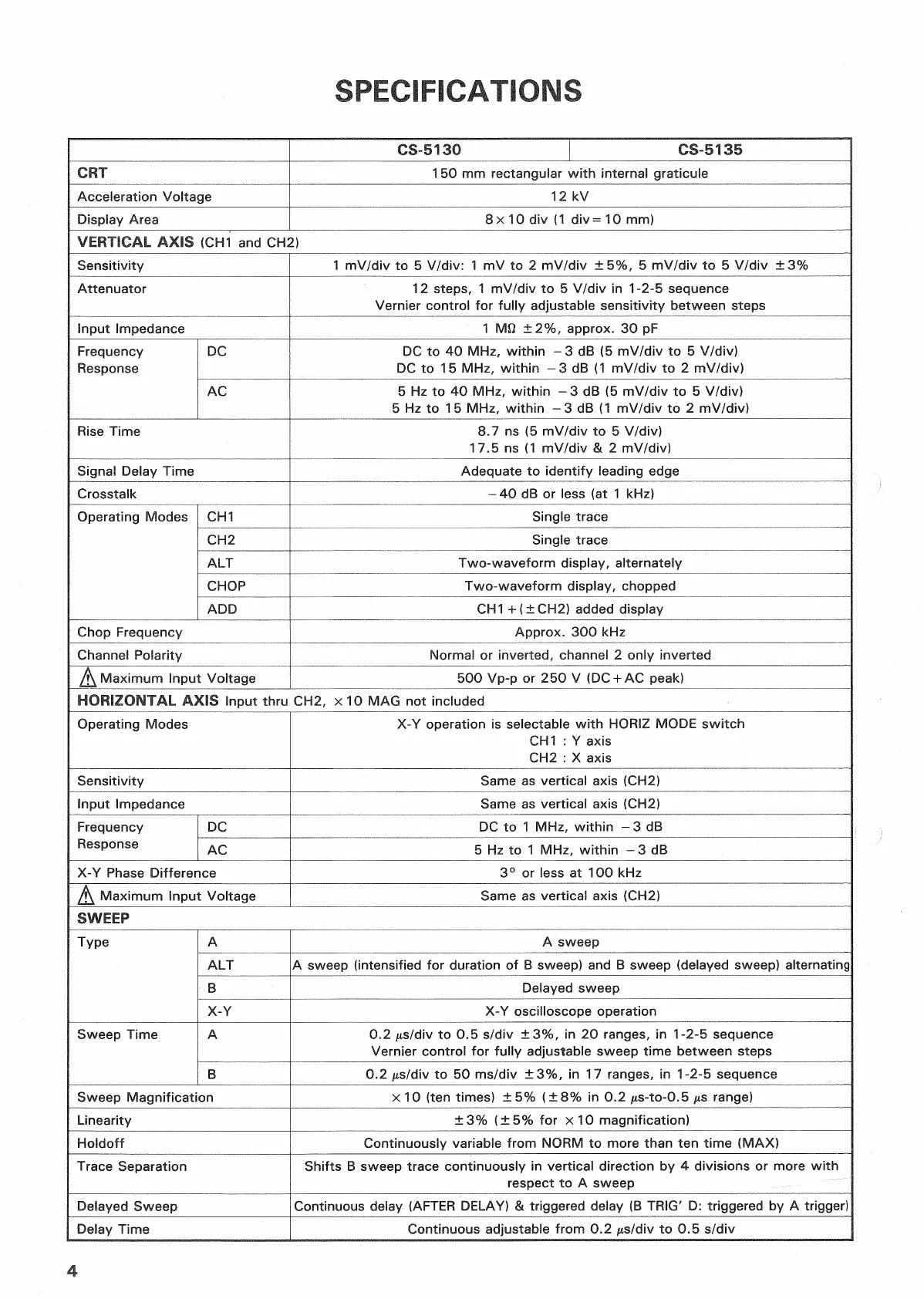

SPECIFICATIONS
CS-5130 CS-5135
CRT
1 50 mm rectangular with internal graticule
Acceleration Voltage
12 kV
Display Area
8x 10 div (1 div = 10 mm)
VERTICAL AXIS (CH1 and CH2)
Sensitivity
1 mV/div to 5 V/div: 1 mV to 2 mV/div ±5%, 5 mV/div to 5 V/div ±3%
Attenuator 12 steps, 1 mV/div to 5 V/div in 1-2-5 sequence
Vernier control for fully adjustable sensitivity between steps
Input Impedance
1 MO ±2%, approx. 30 pF
Frequency
Response
DC
DC to 40 MHz, within -3 dB (5 mV/div to 5 V/div)
DC to 15 MHz, within -3 dB (1 mV/div to 2 mV/div)
Frequency
Response
AC
5 Hz to 40 MHz, within -3 dB (5 mV/div to 5 V/div)
5 Hz to 1 5 MHz, within -3 dB (1 mV/div to 2 mV/div)
Rise Time
8.7 ns (5 mV/div to 5 V/div)
17.5 ns (1 mV/div & 2 mV/div)
Signal Delay Time
Adequate to identify leading edge
Crosstalk
-40 dB or less (at 1 kHz)
Operating Modes
CH1
Single trace Operating Modes
CH2 Single trace
Operating Modes
ALT Two-waveform display, alternately
Operating Modes
CHOP
Two-waveform display, chopped
Operating Modes
ADD CH1 +(±CH2) added display
Chop Frequency
Approx. 300 kHz
Channel Polarity
Normal or inverted, channel 2 only inverted
/r\ Maximum Input Voltage
500 Vp-p or 250 V (DC + AC peak)
HORIZONTAL AXIS Input thru CH2, x 10 MAG not included
Operating Modes
X-Y operation is selectable with HORIZ MODE switch
CH1 : Y axis
CH2 : X axis
Sensitivity
Same as vertical axis (CH2)
Input Impedance
Same as vertical axis (CH2)
Frequency
Response
DC
DC to 1 MHz, within -3 dB
Frequency
Response
AC
5 Hz to 1 MHz, within -3 dB
X-Y Phase Difference
3° or less at 100 kHz
/fy Maximum Input Voltage
Same as vertical axis (CH2)
SWEEP
Type
A A sweep
Type
ALT
A sweep (intensified for duration of B sweep) and B sweep (delayed sweep) alternating
Type
B
Delayed sweep
Type
X-Y X-Y oscilloscope operation
Sweep Time
A 0.2 jus/div to 0.5 s/div ±3%, in 20 ranges, in 1 -2-5 sequence
Vernier control for fully adjustable sweep time between steps
Sweep Time
B
0.2 /xs/div to 50 ms/div ± 3%, in 1 7 ranges, in 1 -2-5 sequence
Sweep Magnification
x 10 (ten times) ±5% (±8% in 0.2 /xs-to-0.5 (is range)
Linearity
±3% (±5% for x 10 magnification)
Holdoff
Continuously variable from NORM to more than ten time (MAX)
Trace Separation
Shifts B sweep trace continuously in vertical direction by 4 divisions or more with
respect to A sweep
Delayed Sweep
Continuous delay (AFTER DELAY) & triggered delay (B TRIG' D: triggered by A trigger)
Delay Time
Continuous adjustable from 0.2 fis/d'w to 0.5 s/div
4
