Fig.

12.

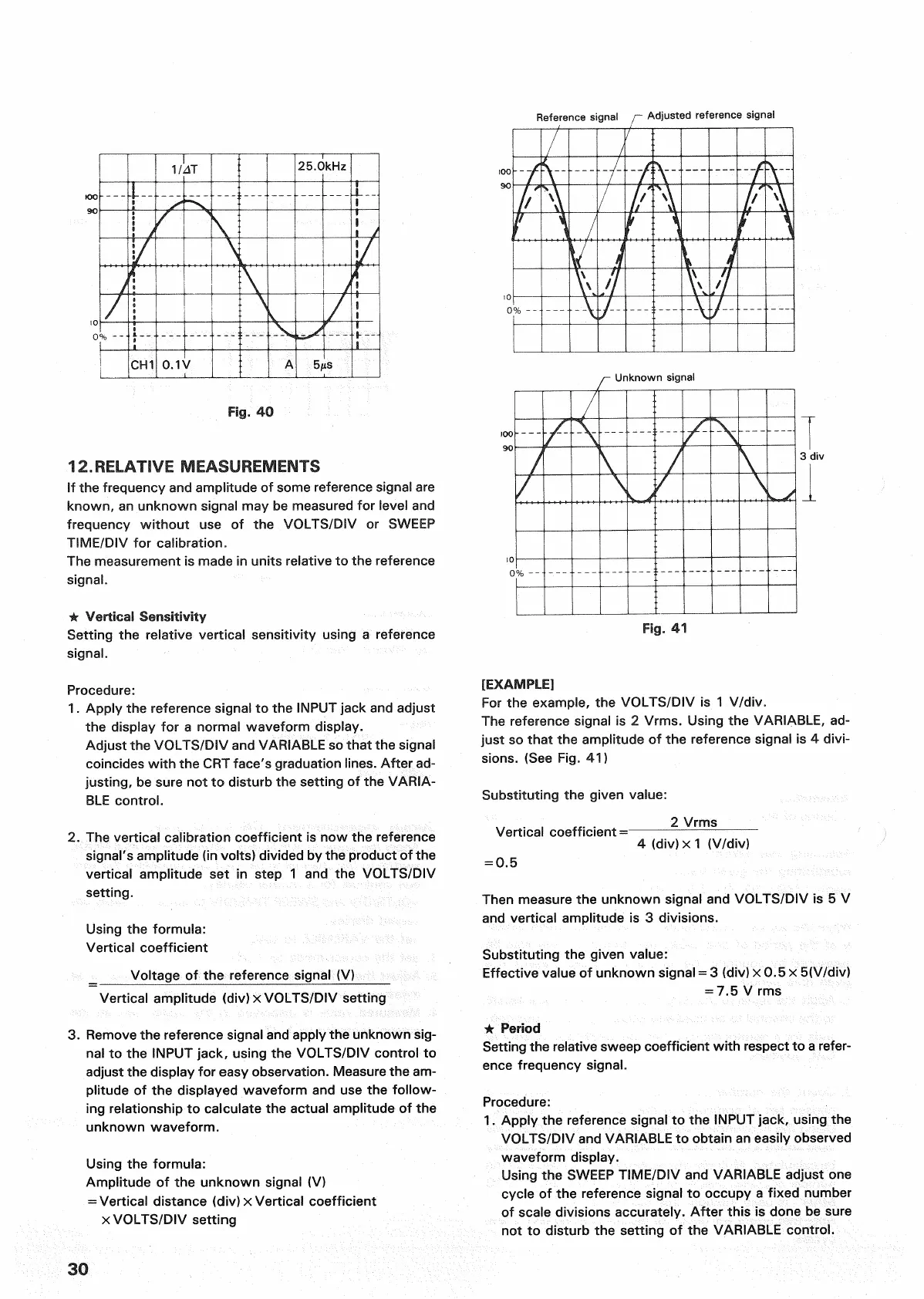

RELATIVE

MEASUREMENTS

If the frequency and amplitude of some reference signal are

known, an unknown signal may be measured for level and

frequency

without

use of the

VOLTS/DIV

SWEEP

TIME/DIV

for calibration.

The

measurement is made in units relative to the reference

signal.

Unknown signal

• Vertical Sensitivity

Setting the relative vertical sensitivity using a reference

signal.

Procedure:

Apply the reference signal to the

INPUT

jack and adjust

the display for a normal waveform display.

Adjust the

VOLTS/DIV

and

VARIABLE

that

the signal

coincides

with

the

CRT

face's

graduation lines. After ad-

justing, be sure not to disturb the setting of the

VARIA-

BLE

control.

The vertical calibration coefficient is now the reference

signal's

amplitude (in volts) divided by the

product

of the

vertical amplitude set in step 1 and the

VOLTS/DIV

setting.

Using the formula:

Vertical coefficient

Voltage of the reference signal (V)

Vertical amplitude (div) x

VOLTS/DIV

setting

Remove the reference signal and apply the unknown

sig-

nal to the

INPUT

jack, using the

VOLTS/DIV

control

adjust the display for

easy

observation. Measure the am-

plitude

of the displayed waveform and use the

follow-

ing relationship to calculate the actual amplitude of the

unknown waveform.

Using the formula:

Amplitude of the unknown signal (V)

Vertical distance (div) x Vertical coefficient

VOLTS/DIV

setting

[EXAMPLE]

For

the example, the

VOLTS/DIV

is 1 V/div.

The

reference signal is 2 Vrms. Using the

VARIABLE,

ad-

just so

that

the amplitude of the reference signal is 4 divi-

sions.

(See Fig. 41)

Substituting the given value:

. . 2 Vrms

Vertical coefficient =

4 (div) x

(V/div)

0.5

Then

measure the unknown signal and

VOLTS/DIV

is 5 V

and vertical amplitude is 3 divisions.

Substituting the given value:

Effective

value of unknown signal = 3 (div) x 0.5 x 5(V/div)

7.5 V rms

• Period

Setting the relative sweep coefficient

with

respect to a refer-

ence

frequency signal.

Procedure:

Apply the reference signal to the

INPUT

jack, using the

VOLTS/DIV

and

VARIABLE

obtain

an easily observed

waveform display.

Using the

SWEEP

TIME/DIV

and

VARIABLE

adjust one

cycle

of the reference signal to occupy a fixed number

scale

divisions accurately. After this is done be sure

not to disturb the setting of the

VARIABLE

control.

Reference

signal

Adjusted reference signal

Fig.
