DESCRIPTION OF OPERATING SYSTEM 4-15
C71O429B

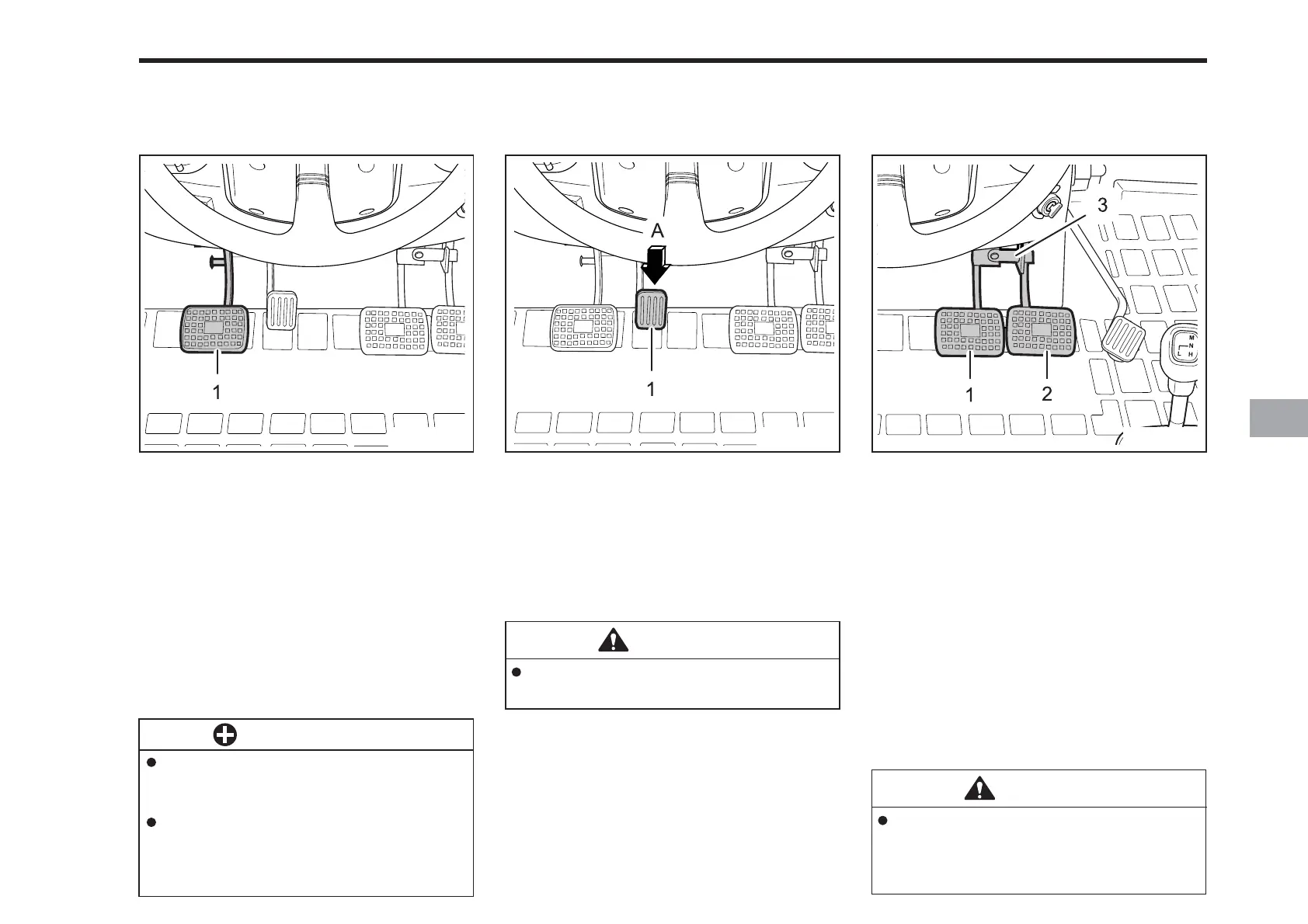

When the clutch pedal is fully depressed,
the clutch is disengaged. Shift the main
shift lever to the desired speed and
gradually release the clutch pedal to en-
gage the clutch.
The clutch should be disengaged by de-
pressing the pedal quickly; and engaged
by slowly releasing the pedal. Rapid en-
gagement will shorten clutch life.
CLUTCH PEDAL
(1) Clutch Pedal
IMPORTANT
The clutch pedal must be de-
pressed quickly and released
slowly.
Never operate the tractor with
your foot resting on the clutch
pedal. Doing so will cause prema-
ture clutch wear.
C71O430B
The steering wheel can be adjusted to
maximize operator comfort. Depress the
tilt pedal and move the steering wheel to
the desired position.
STEERING WHEEL ADJUSTMENT
(TILTING PEDAL)
WARNING
DO NOT adjust the steering wheel
while driving.
(1) Tilting Pedal (A) PUSH
C71O431B
1. Before operating the tractor on the
road or before applying the parking
brake, be sure to interlock the right
and left pedals as illustrated.
2. Use individual brakes to assist in mak-
ing sharp turns at slow speeds (Field
Operation Only).
Disengage the brake pedal lock and
depress only one brake pedal.
3. Be sure brake pedals have equal ad-
justment when using locked together.
BRAKE PEDAL(RIGHT AND LEFT)
(1) Brake Pedal (L) (3) Brake Lock
(2) Brake Pedal (R)
WARNING
Using only one brake or braking
unevenly at high speeds may
cause loss of control resulting in
an accident.
