Kioti DK65S User Manual

5-18 DK65S

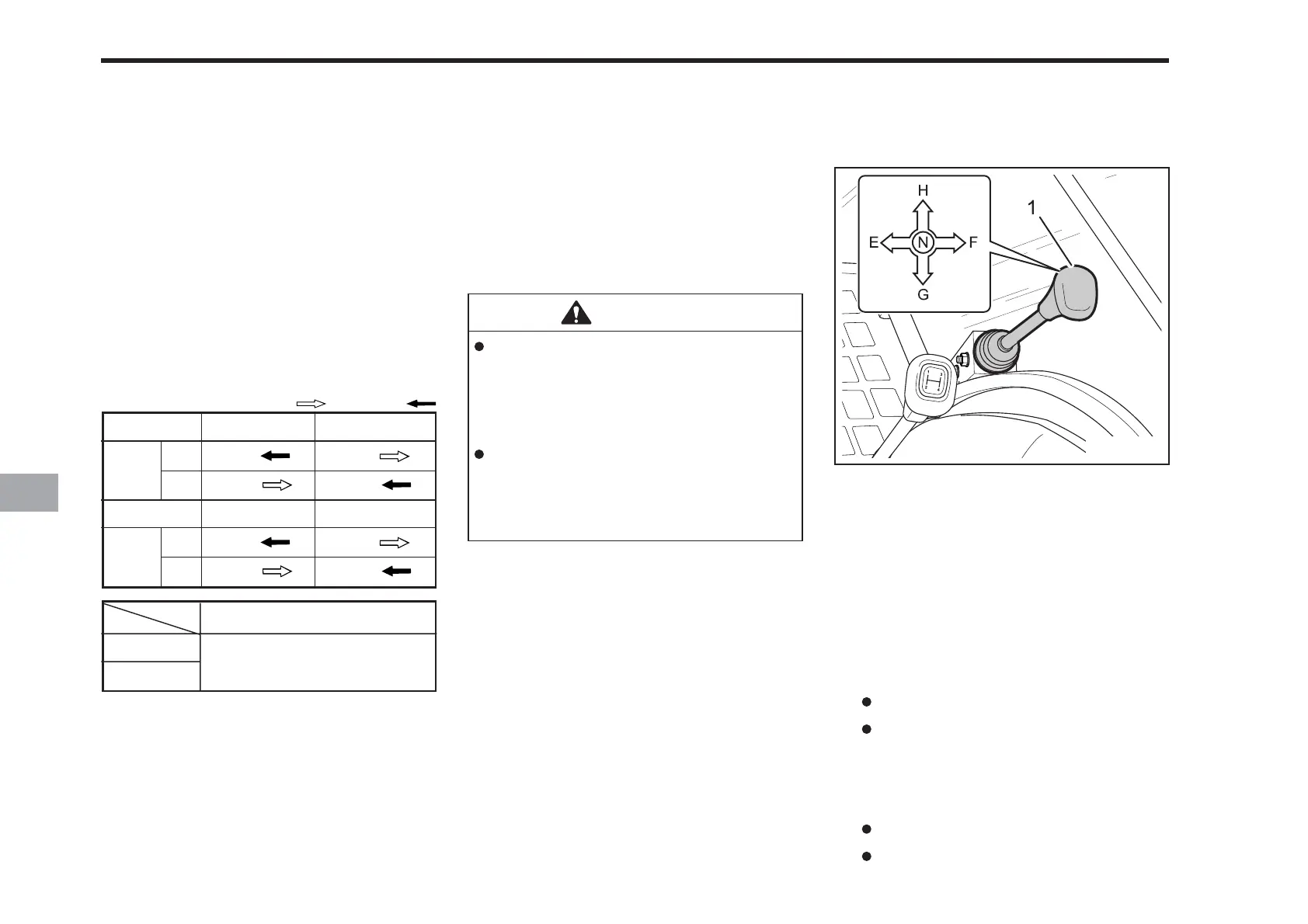

The joy stick control, located to the right
of the instrument panel, is all that is
needed to install and operate a front-end
loader.
1. Connect two male couplers from the
boom cylinder to the ports G,H (front
right of the tractor cab).
G : Boom Cylinder Up
H : Boom Cylinder Down
2. Connect two male couplers from the
bucket cylinder to the ports E,F (front
right of the tractor cab).
E : Bucket Cylinder Up
F : Bucket Cylinder Down
ATTACHING A LOADER
C71O523B
(1) Joy Stick Lever
HOW TO USE AN IMPLEMENT WITH A
DOUBLE ACTING CYLINDER
1. Connect the two hoses from the cyl-
inder by inserting the male couplers
into the ports marked A and B.
2. Start the tractor and operate the
implement.
CAUTION
Moving the control lever to the A
position will pressurize the A
port. Moving the control lever to
the B position will pressurize the
B port.
Connect the couplers to achieve
the desired operating direction
when the A and B ports are
pressurized.
Push or pull the appropriate lever to acti-
vate the desired function (see chart
below). If the accessory reaches its limit
and the relief valve opens, release the
lever and it will return to its neutral
position. Continuous operation of the re-
lief valve serves no purpose and will
cause overheating.
1,2 Remote control valve lever
Pressure Returning
Out In
OutIn
LEVER 1
Push Pull
Port
A
B
Port A B
COUPLER SIZE
PT 1 / 2
Out In
OutIn
LEVER 2
Push Pull
Port
C
D
Port C D
