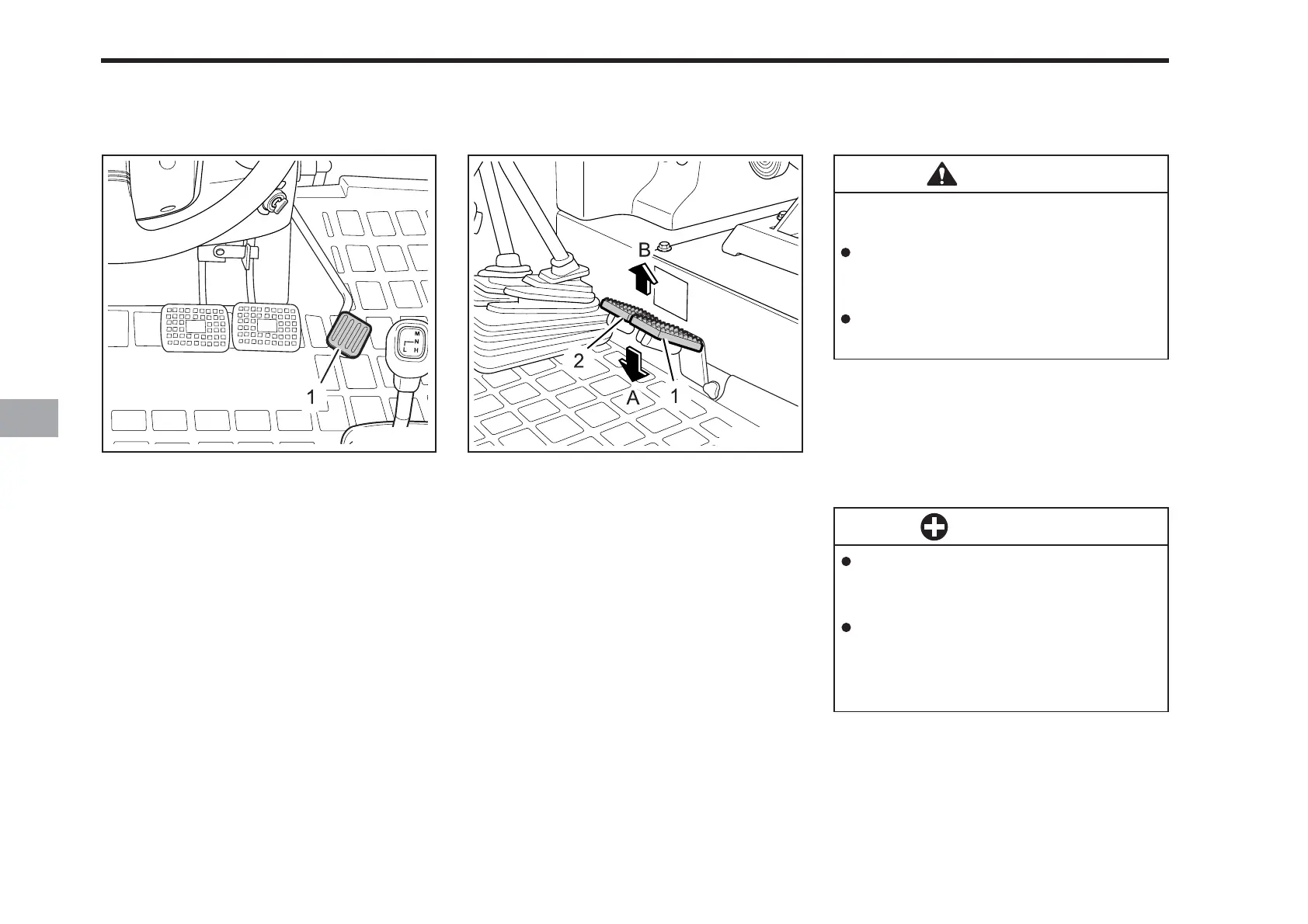

DIFFERENTIAL LOCK PEDAL
(1) Front Differential Lock Pedal
(2) Rear Differential Lock Pedal
(A) Press to “ENGAGE”
(B) Release to “DISENGAGE”
C71O432B
The foot throttle is interlocked with the
hand throttle. Depressing the foot throttle
increases engine speed. Full engine
speed can be obtained with the foot
throttle if the hand throttle is in full rear-
ward position. The foot throttle may also
be used to temporarily increase engine
speed above the hand throttle setting.
FOOT THROTTLE PEDAL
(1) Foot Throttle Pedal
If one of the rear wheels should slip,use
the differential lock. This will cause both
wheels to turn together. The differential
lock is engaged only when the pedal is
depressed.
IMPORTANT
WARNING
To avoid personal injury due to loss
of steering control.
Do not operate the tractor at high
speeds with the differential lock
engaged.
Do not attempt to turn with the
differential lock engaged.
When using the differential lock,
always slow the engine and
press the differential lock down.
If the differential lock cannot be
released in the above manner,
step lightly on the brake ped-
als alternately.
