6-14 DK65S
Refill the brake and clutch oil before the
fluid level reaches the lower limit.
BRAKE AND CLUTCH OIL
C71O618B
CAUTION
Always bleed the air from the brake
and clutch system after any service
or repair.
Air in the system will make the brake
pedal feel “soft”, and brake failure
is likely to occur.
Never operate the tractor unless the
brake and clutch oil is at the proper
level.
Use only DAEDONG approved brake
fluid.
WARNING
When making any brake adjust-
ments, make sure that both pedal
travel and pedal force are equal for
both pedals. Unequal braking can
result in a serious accident.
Brake problems must be corrected
immediately for your safety. Contact
your DAEDONG dealer for
assistance.

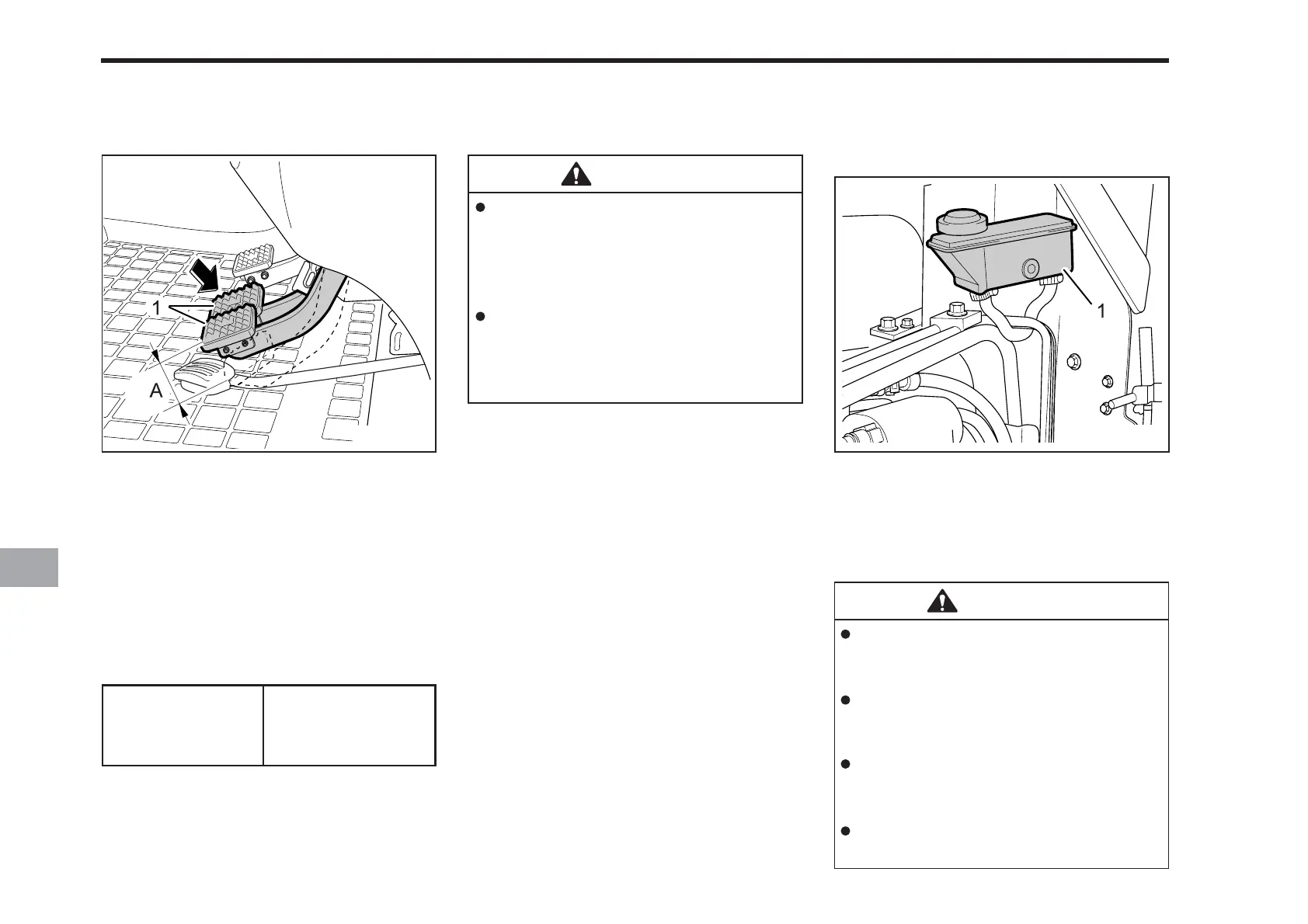

(1) Brake and Clutch Oil Reservoir
BRAKE PEDAL ADJUSTMENT
C71O617B
Brake pedal travel
20 ~ 30 mm
(0.79 ~ 1.18 in.)
from the pedal
(1) Brake Pedal
(A) Pedal Travel
To adjust brake pedal travel; loosen the
locknut from the clevis that connects the
pedal with the master cylinder, remove the
clevis pin, and turn the clevis to achieve
the desired pedal travel as indicated
below. Reassemble and secure the
locknut.
To Next Page
