3-POINT HITCH CONTROL SYSTEM

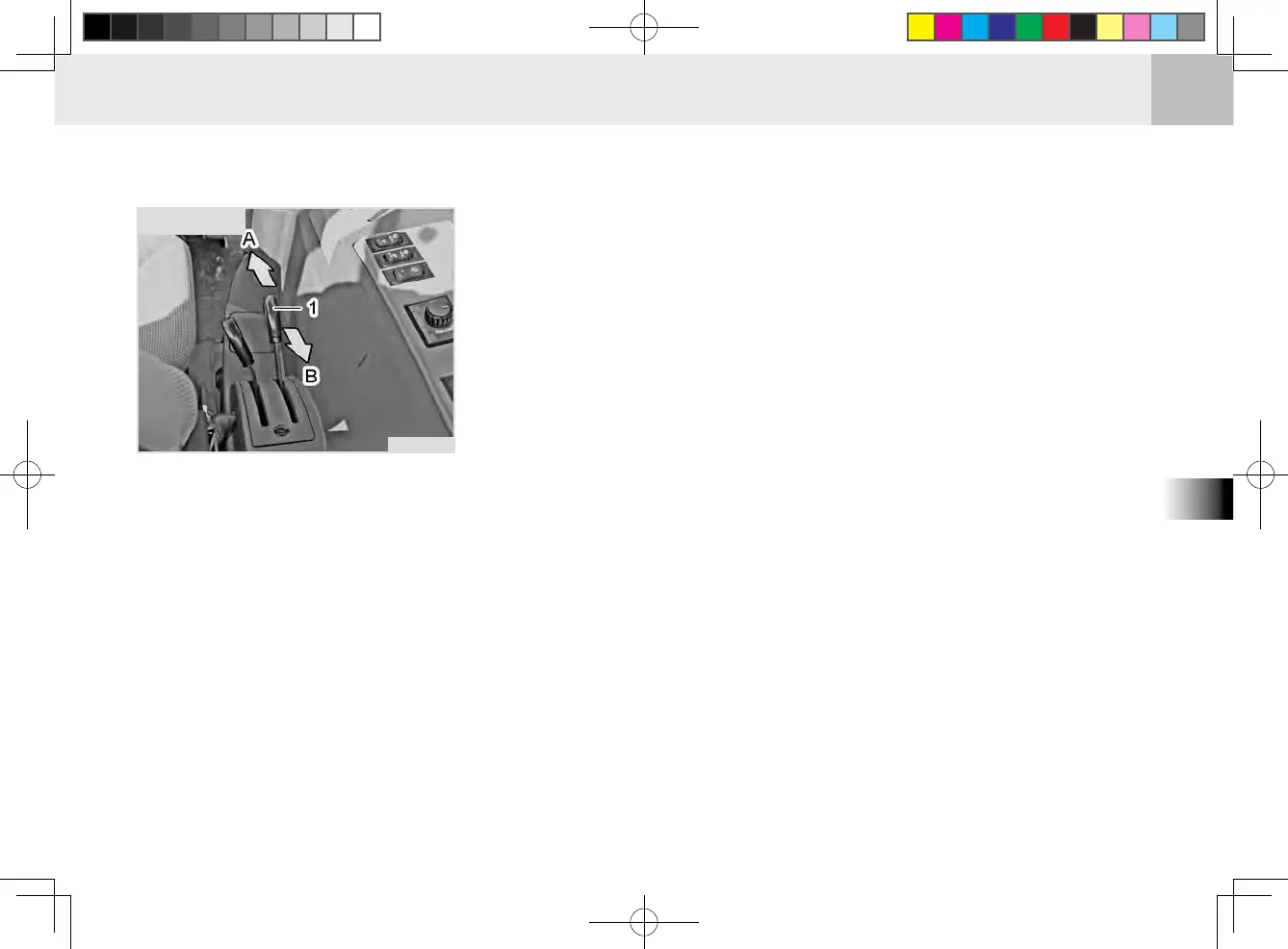

(1) Position Control Lever
(A) Lowering (B)Lifting
TE1O442A
[MANUAL]
The 3-point hitch can be controlled
by the position control lever and the
1. The position control lever is used
to lift or lower the lifting arm (lower
link) of the 3-point hitch.
2. Pushing the lever forward lowers
the lower link while pulling the le-
ver backward lifts the lower link.
3. The height of the lower link is pre-
cisely controlled proportional to the
position of the lever.
4. The lower link is lifted by the hy-
draulic energy of the tractor while
it is lowered by potential energy
of its own weight. Therefore, the
implement cannot be lowered by
the hydraulic pressure.
5. Therefore, the implement attached
to the lower link may be lifted by
protrusion on the ground when it is
lowered to the ground. It is called
as “oating”.
draft control lever. The lever installed
on the outer side (away from the
driver) is the position control lever
while the lever installed on the inner
side (close to the driver) is the draft
control lever.
POSITION CONTROL
To Next Page
