30 NX4520 / NX5020 / NX5520 / NX6020

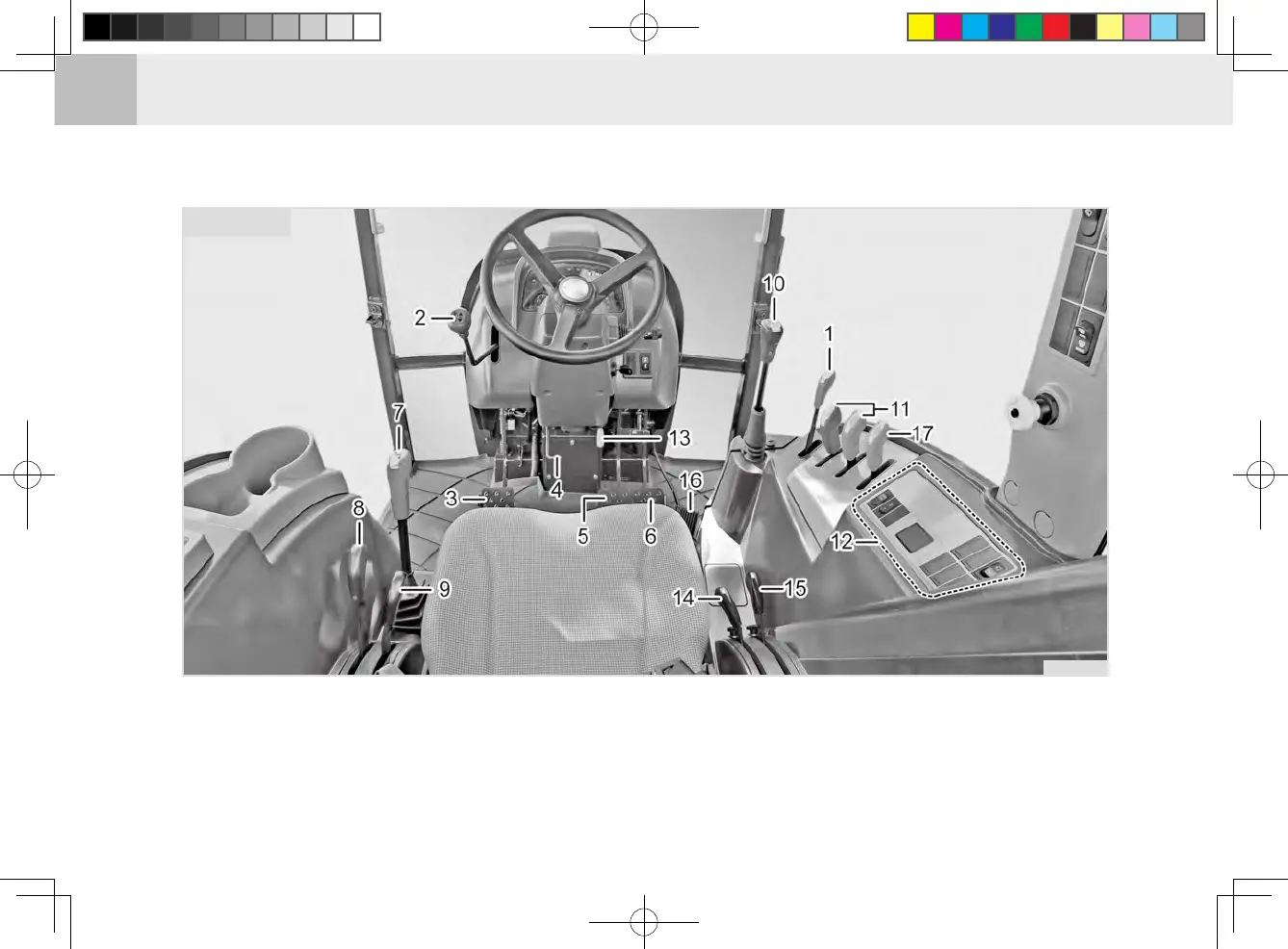

OPERATING THE CONTROLS
TE1O433B
(1) Hand Throttle Lever
(2) Shuttle Shift Lever
(3) Clutch Pedal
(4) Tilt Steering Pedal
(Steering Wheel Angle Adjustment)
(5) Brake Pedal (L)
(6) Brake Pedal (R)
(7) Main Gear Shift Lever
(8) Range Gear Shift Lever
(9) Creep Gear Speed Lever
(10) Joystick Lever (For Loader Operation)
(11) Double Acting Lever (A, B)
(12) Switch Panel
(13) Parking Brake Lock Lever
(14) Draft Control Lever
(15) Lift Position Control Lever
(16) Foot Throttle Pedal
(17) PTO Shift Lever
