PRECAUTION FOR INSTALLING
HOW TO USE TOP LINK HOLES
When attaching an implement, con-
nect it according to its draft as follow:
(1) Top Link
Stop the engine and lower
the attachment on the ground
prior to disconnecting the lift
rod from the lower link. Check
that the attachment for proper
supporting and there’s pres-
sure remained in the hydraulic
system to remove the lift rod
holding the pin. To eliminate
the remained pressure, move
the hydraulic adjusting lever
back and forth several times.
WARNING
When there is no implement at-
tached, fix the lower link to the
check link (LH/RH) so that it does
not contact with the rear wheel.
Secure the top link to the hook.
NOTE
Te1O604B

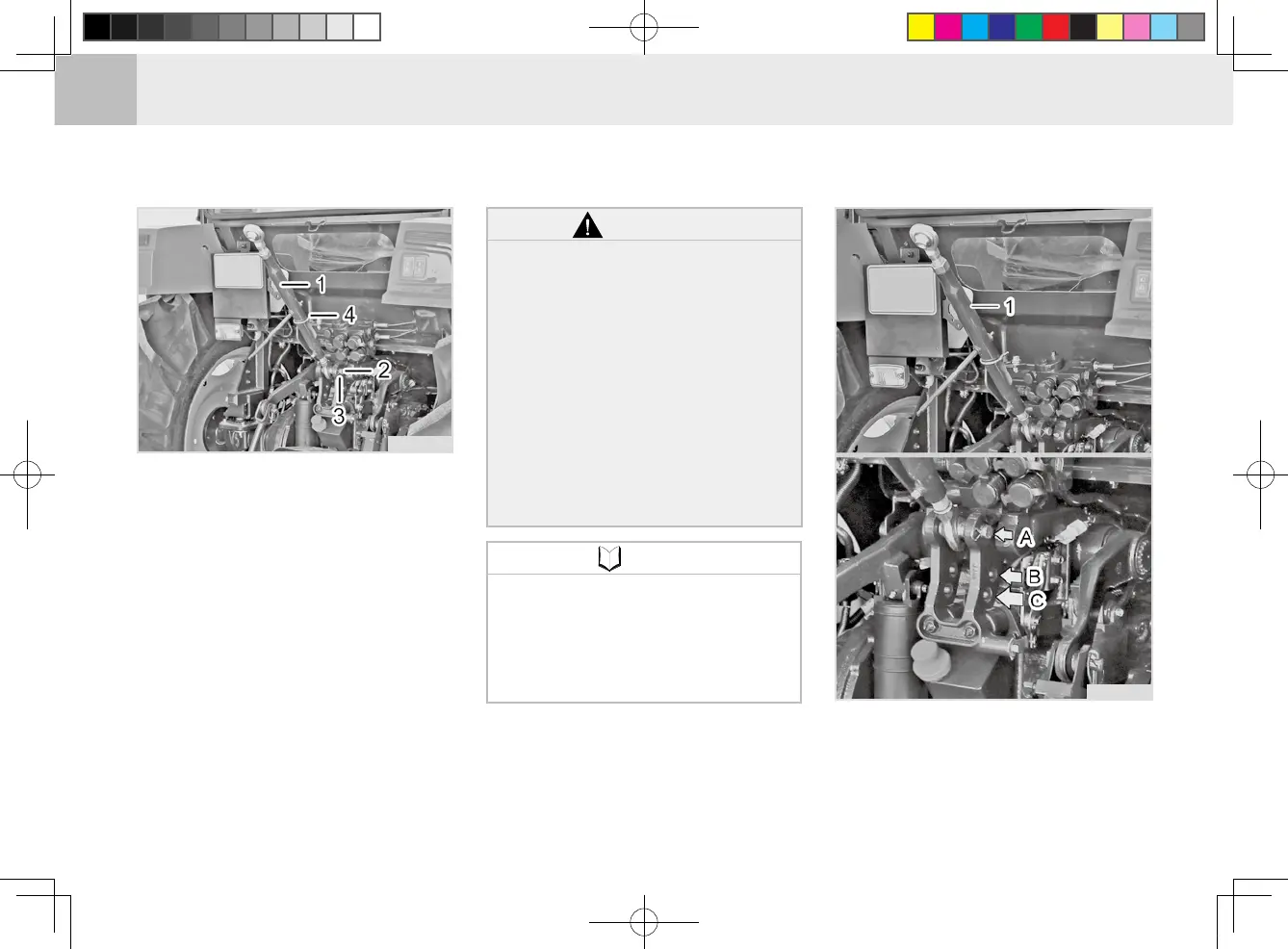

(1) Top Link (2) Pin
(3) Retainer Pin (4) Top Link Hook
1. Install the top link to the desired
position, and install the pin and re-
tainer pin.
2. Fix Top link with xed nut after ad-
justing top link.
ADJUSTMENT OF TOP LINK
Te1O603B
