CHANGING ENGINE OIL AND
REPLACING FILTER (K)
1. Park the tractor on a level ground
and start the engine to warm it up.
2. Stop the engine, apply the parking
brake, and remove the drain plug.
3. To drain the used oil, remove the
drain plug at the bottom of the en-
gine and drain the oil completely
into the oil pan.
All the used oil can be drained
out easily when the engine is still
warm.

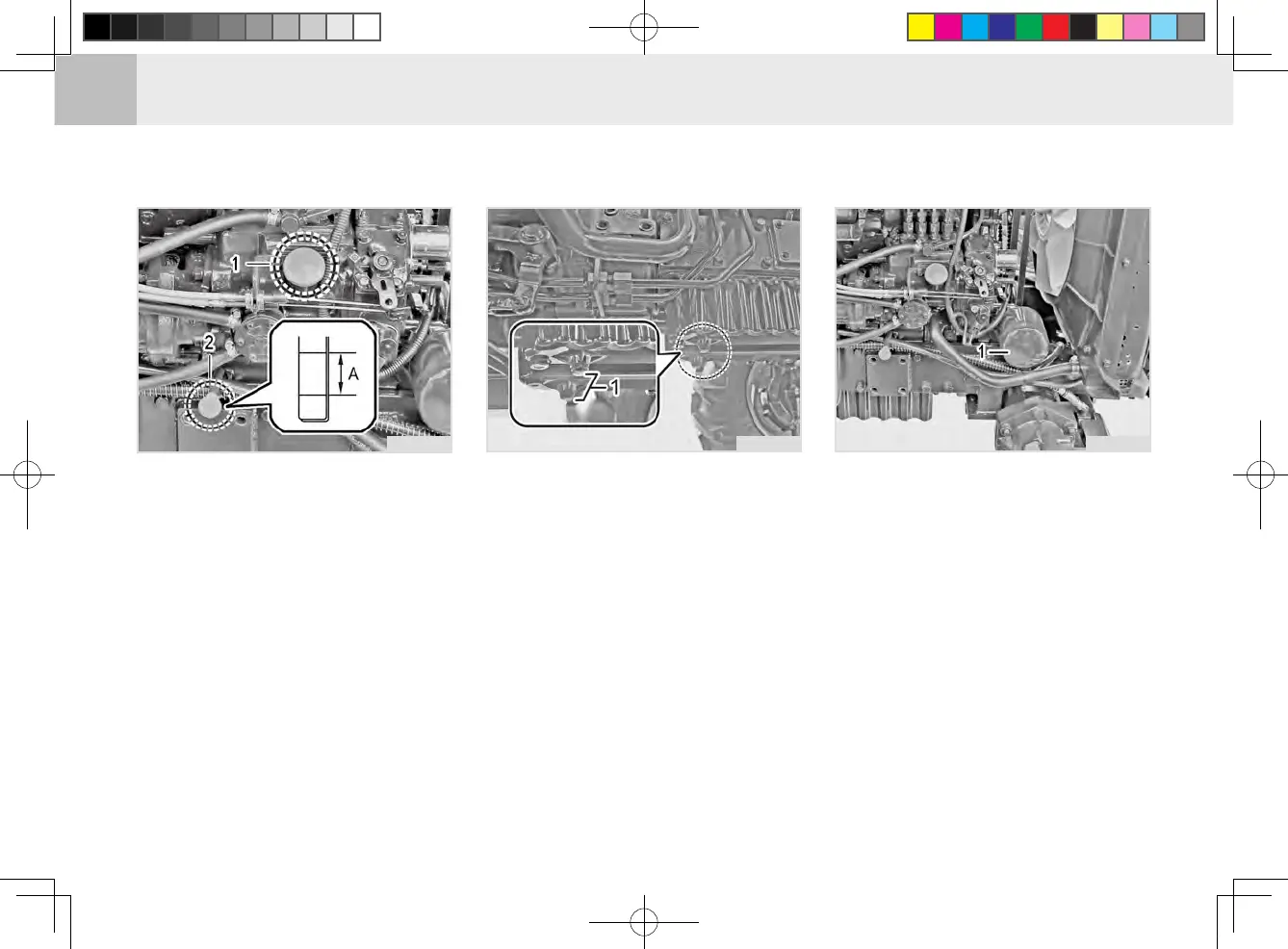

(1) Oil Inlet (2) Gauge
(A) Oil level is acceptable within this range
(1) Drain Plug (1) Engine Oil Filter
4. Remove the oil filter behind the
cooling fan on the right side of the
engine.
5. Apply a thin lm of oil to the O-ring
of a new filter and tighten the
O-ring rmly by hand.
6. Add the engine oil to the specied
level and tighten the oil lter to the
specied torque.
TE1O704A
TE1O707A TE1O708A
To Next Page
