EXTERIOR HYDRAULIC CONTROL SYSTEM
DOUBLE ACTING VALVE LEVER
KIOTI supplies two types of the
double acting valves by region: self-
return type and detent type.
For the self-return type double act-
ing lever, it returns to its original
position to block the hydraulic uid
when it is pushed/pulled and then
released. However, this type of
double acting valve lever should
be pulled or pushed continuously
for operation which is suitable for
an implement with a short operat-
ing time, such as the hydraulic cyl-
inder.
For the detent type double act-
ing valve lever, it keeps its posi-
tion after it is pulled or pushed to
a certain position. Therefore, it is
not necessary to hold the lever to
a certain position which is suitable
for an implement with a long oper-
ating time, such as the hydraulic
motor.

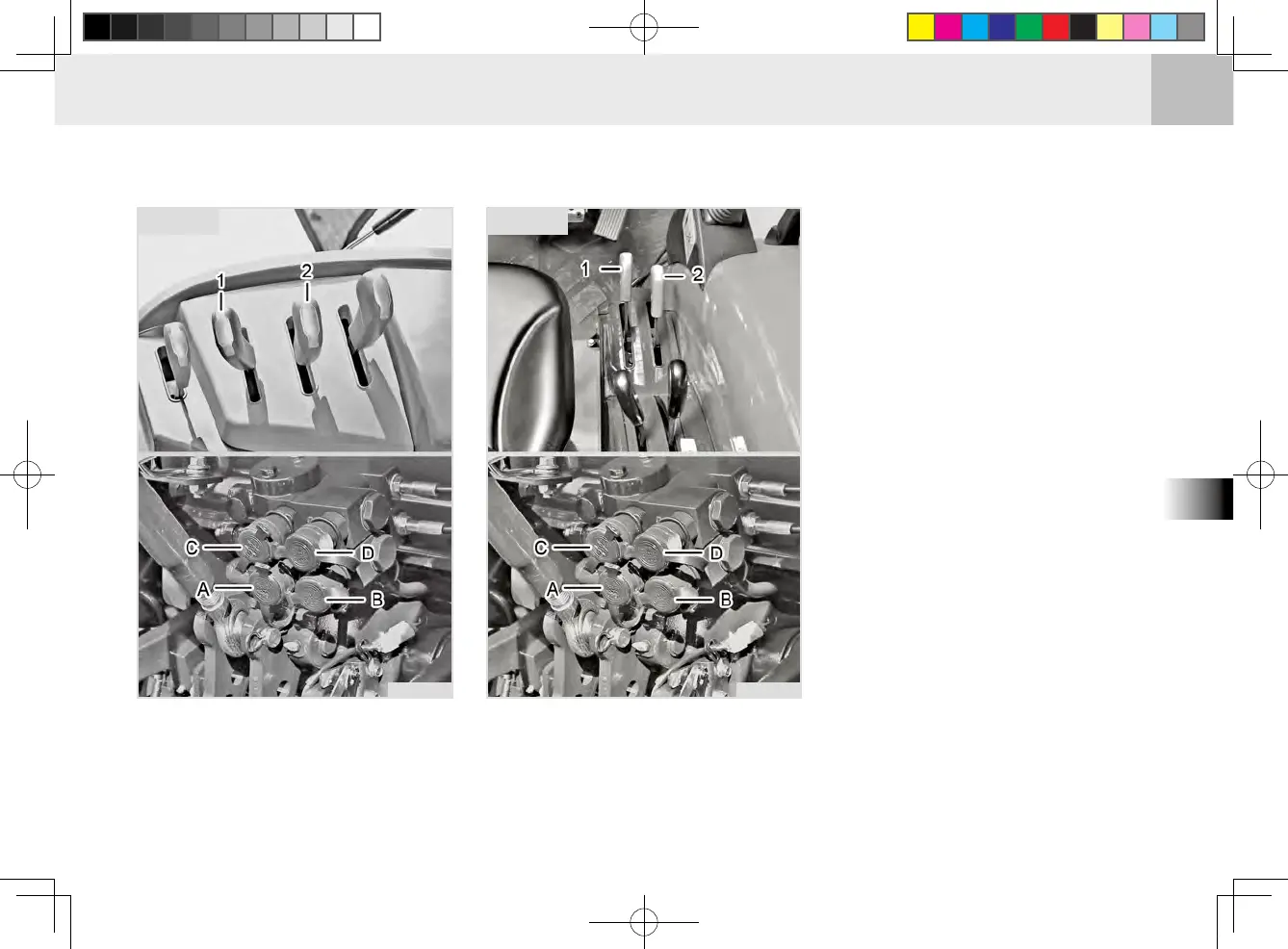

TE1O4B9A
(1) Double Acting Lever 1
(2) Double Acting Lever 2
(A) Port A (B) Port B
(C) Port C (D) Port D
CABIN
TE1O4D3A
ROPS
(1) Double Acting Lever 1
(2) Double Acting Lever 2
(A) Port A (B) Port B
(C) Port C (D) Port D
