just its play using the turnbuckle.
2. To adjust the play, unscrew the
lock nut and turn the turnbuckle.
3. After setting the play properly,
tighten the lock nut rmly. (Manual)
4. Water can get into the clutch hous-
ing when it rains or snows or when
washing the tractor. If this hap-
pens, remove the plug under the
clutch housing to drain water from
the housing. For details, refer to
"Draining water from clutch hous-
ing" in the chapter "Service".
Proper clutch pedal free travel (A)
20 ~ 30 mm (0.8 ~ 1.2 in.)
on the pedal

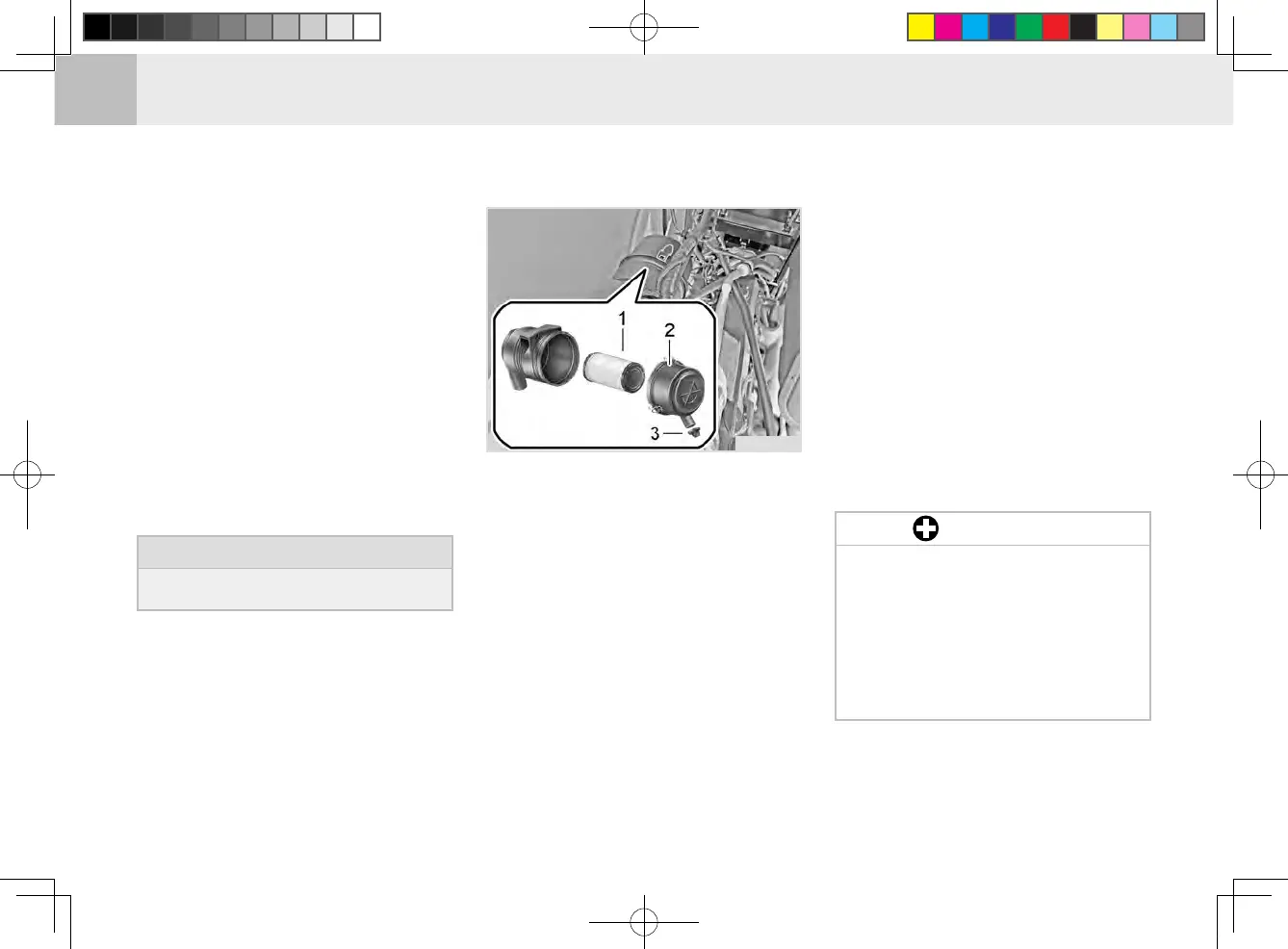

(1) Element (2) Cap
(3) Evacuator Valve
1. The air cleaner uses a dry ele-
ment. Never apply oil.
2. Dust should not accumulate in the
dust cap or element. Remove and
clean the dust cap and the ele-
ment every week. If the tractor is
operated in extremely dusty condi-
tions, daily inspection is required.
3. Do not touch the filter element
except in cases where cleaning is
required.
REPLACING AIR CLEANER PRIMARY ELEMENT (R)
4. When cleaning the element, refer
to the instructions that follow.
5. If the element is stained with car-
bon , dust or oil, replace the lter.
6.
Change the element every 6
months or every 100 hours.
To
clean the element, use only clean
dry compressed air on the inside of
t
he element. Air pressure at the nozzle
must not exceed 2 kgf/cm² (29 psi).
Maintain reasonable distance between
the nozzle and the lter.
TE1O719A
The air cleaner will only fulll
its function if it is correctly
and regularly maintained. A
poorly maintained air cleaner
will mean loss of power, ex-
cessive fuel consumption and
a reduction in engine life.
•
IMPORTANT
