NX4520 / NX5020 / NX5520 / NX6020

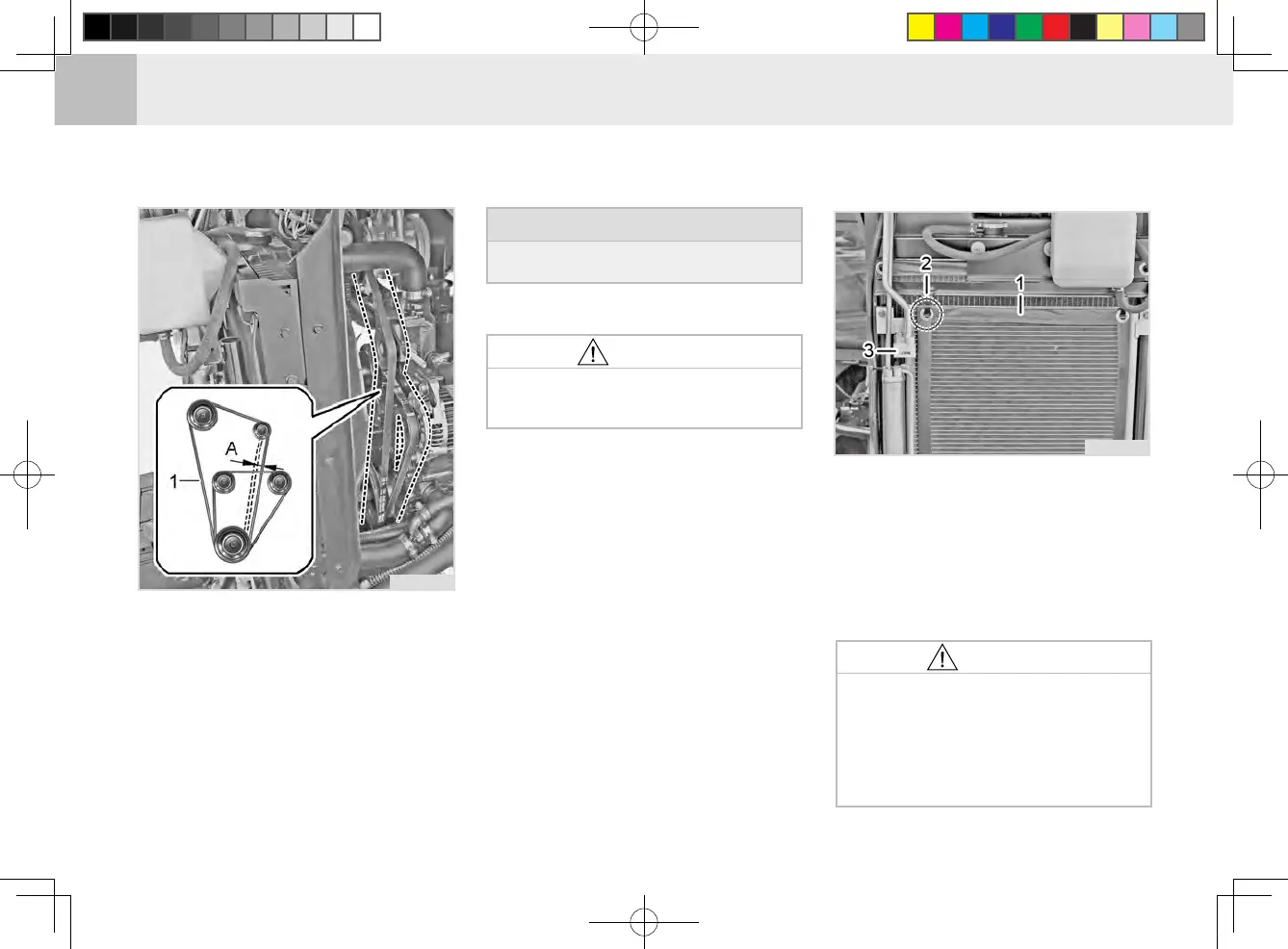

1. Stop the engine and apply the
parking brake.
2. Press the belt between the pulley
with force of 10 kg and adjust the
belt tension according to the below
specication.
AIR CONDITIONER BELT TENSION (Z)
(1) Air Conditioner Belt
(A) tension Amount
TE1O726A
3. Replace the damaged belt.

Stop the engine before check-
ing air conditioner belt.
CAUTION
Tension of air conditioner belt (A)
When press the middle point of the belt
: 10~12 mm (0.39~0.47 in.)
(1) Net (2) Hook
(3) Condenser
CLEANING AIR CONDITIONER
CONDENSER (AA)
1. Open the hood.
2. Remove the net from the hooks
and remove any foreign material
from the net.
TE1O727A
Make sure to stop engine
when checking.
If cooler fan is blocked by
dirt, clean with a soft brush or
cloth using tab water.
•
CAUTION
