SEN03775-04 10 Structure, function and maintenance standard
26 PC130-8

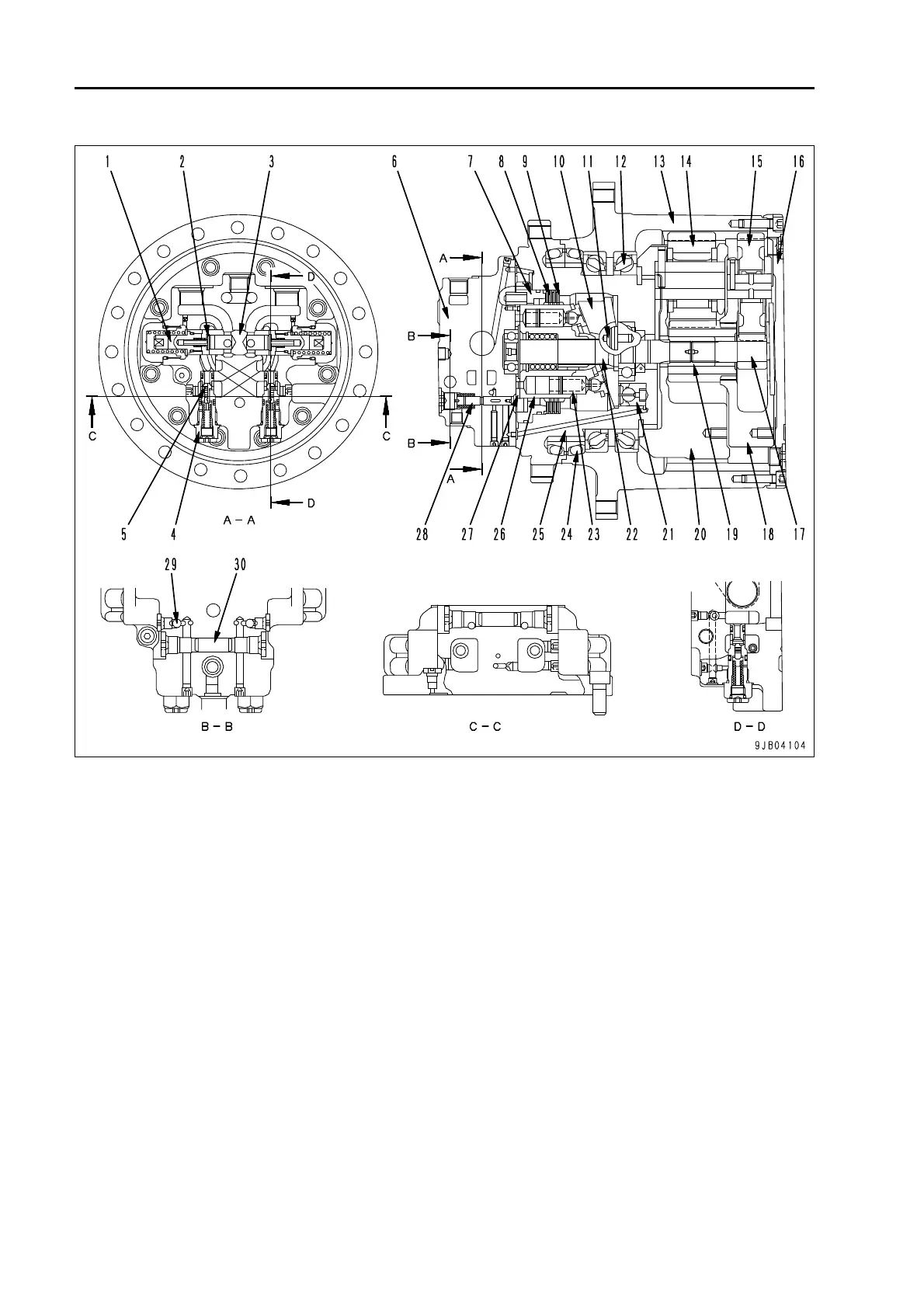

1. Plug
2. Check valve
3. Counterbalance valve
4. Sleeve
5. Relief valve
6. End cover
7. Brake piston
8. Disc
9. Plate
10. Swash plate
11. Pivot
12. Bearing
13. Hub
14. Planetary pinion B
15. Planetary pinion A
16. Cover
17. Sun gear A
18. Carrier A
19. Sun gear B
20. Carrier B
21. Regulator piston
22. Shaft
23. Piston
24. Floating seal
25. Spindle
26. Cylinder
27. Timing plate
28. Regulator valve
29. Check valve
30. Piston
