10 Structure, function and maintenance standard SEN03778-03
PC130-8
49

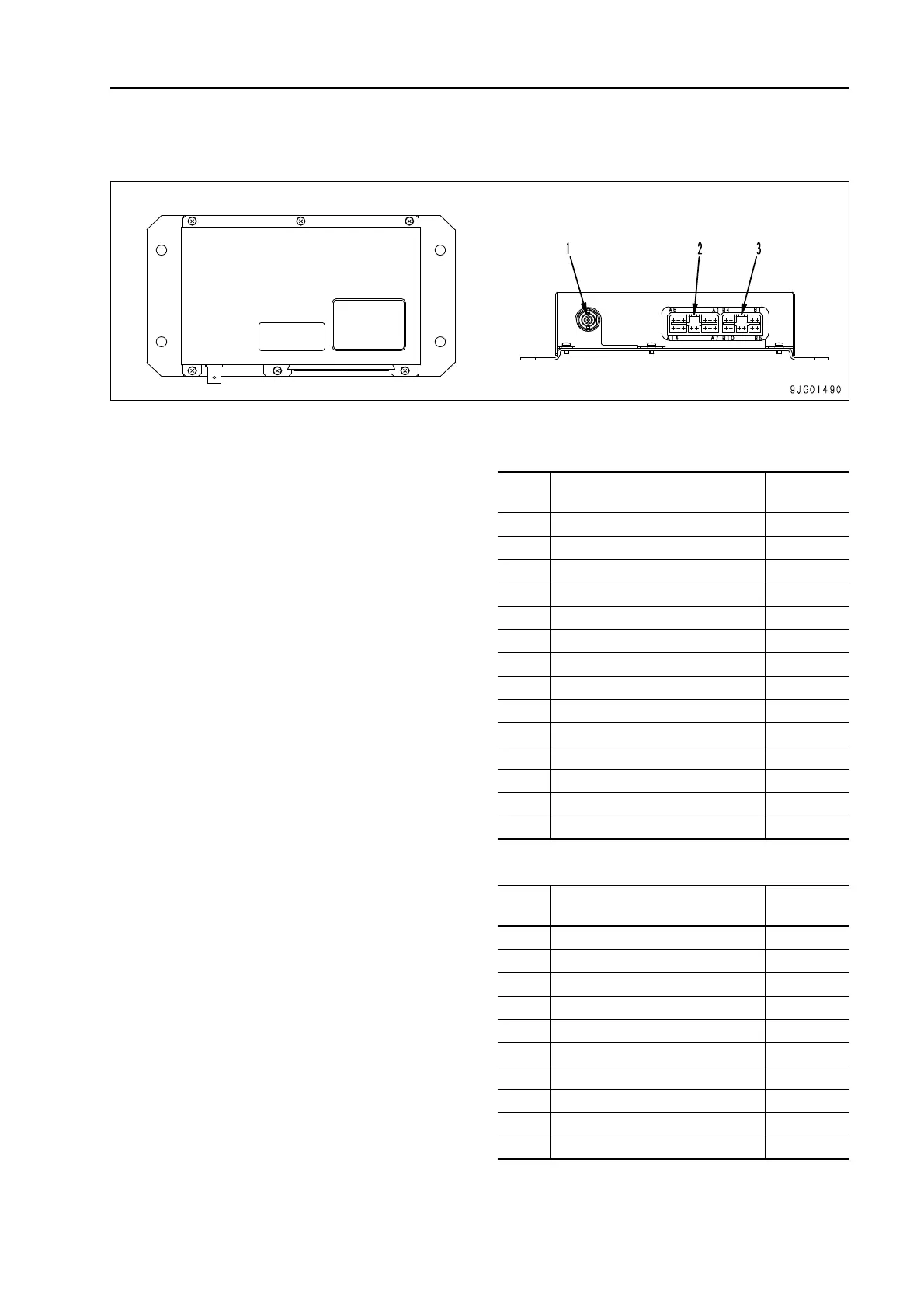

KOMTRAX terminal
TH300
1. Communication antenna connection
2. Machine harness connection (AMP-14P)
3. Machine harness connection (AMP-10P)
Outline
q The KOMTRAX terminal sends various
machine information based on the network sig-
nals and input signals obtained through the
machine monitor, as well as GPS position
data, via wireless communication. The
KOMTRAX terminal can sends information via
communication antenna.
q Conditions of the KOMTRAX terminal can be
checked with the “Display of KOMTRAX sys-
tem setting“ in the service mode of the
machine monitor.
q Use of KOMTRAX terminal must be limited for
the countries in which such communication is
allowed.
Input and output signals
AMP-14P [CN-CK01]
Pin No. Signal name
Input/output
signal
A1 Power supply (5 V) Input
A2 NC —
A3 NC —
A4 Selection of power supply voltage Output
A5 NC —
A6 NC —
A7 GND Input
A8 GND Input
A9 NC —
A10 NC —
A11 NC —
A12 NC —
A13 NC —
A14 NC —
AMP-10P [CN-CK02]
Pin No. Signal name
Input/output
signal
B1 RS232C DCD Output
B2 RS232C RXD Output
B3 RS232C TXD Input
B4 RS232C DTR Input
B5 RS232C SGND Input
B6 RS232C DSR Output
B7 NC —
B8 NC —
B9 NC —
B10 NC —
