SEN04127-02 50 Disassembly and assembly
6 PC130-8
4. Removal of injector assembly

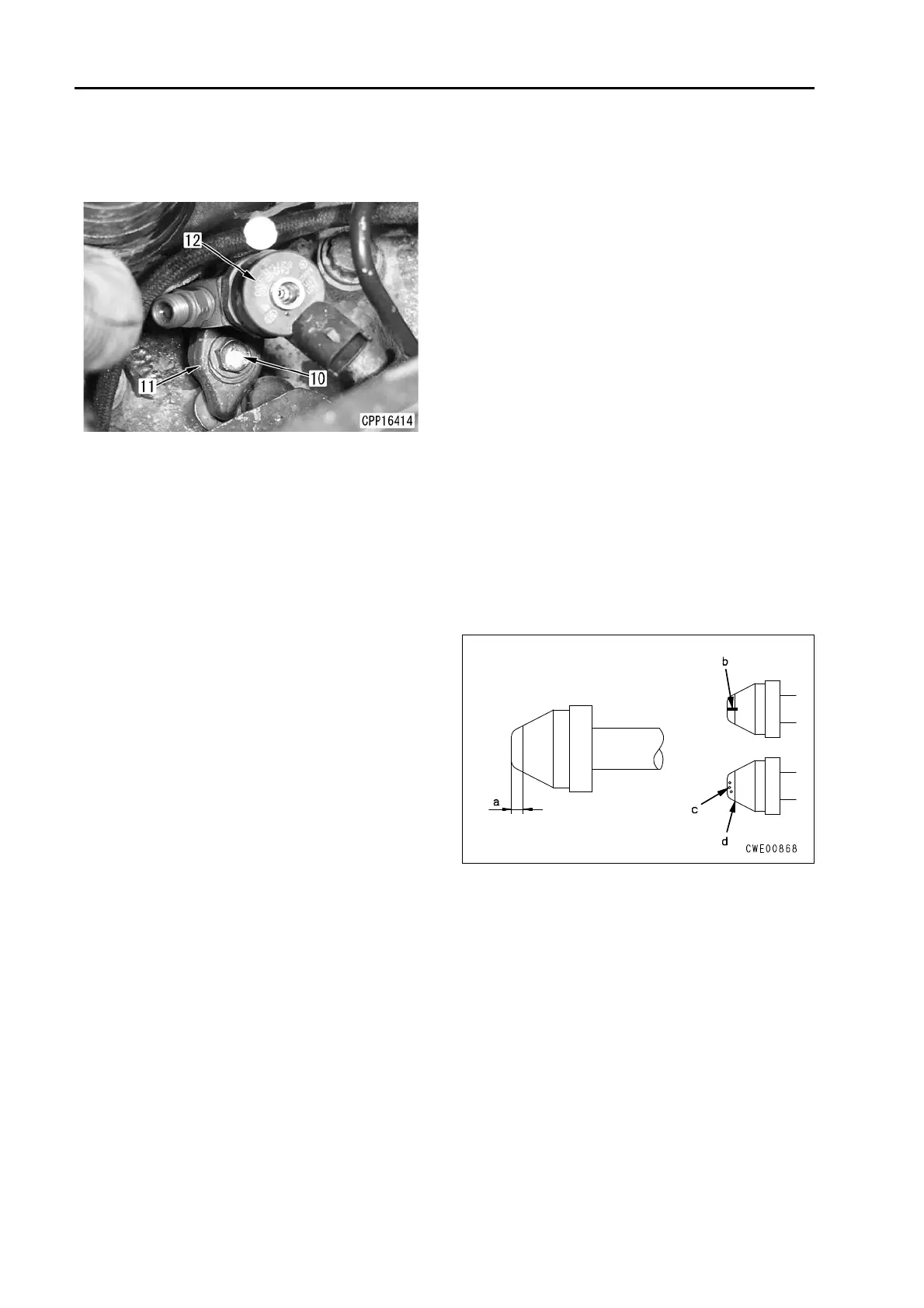

1) Remove holder mounting bolt (10) and
remove holder (11). [*3]
2) Remove injector assembly (12). [*4]
Installation
q Carry out the installation in the reverse order of
removal.
[*1]
a Set the boot slit facing outward and downward.
a The boot is designed with fire safety to prevent
fuel from splashing onto the hot engine if fuel
leaks.
[*2]
k Never bend a high-pressure pipe for the
convenience sake.
k The clamp used for fixing a high-pressure
pipe must be a genuine Komatsu part and it
must be tightened to the specified torque.
k Be sure to install the boot to the sleeve nut
after installing the high-pressure hose.
a Before Installing a high-pressure pipe, confirm
the following points. If any abnormality was
found, replace it with new one. Otherwise,
leakage of fuel can result.
q No visible striations (b) or patchy dents (c) in
the taper seal portion of the connection ( (a)
portion: area 2mm inside the tip).
q No deformation in portion (d) (at the end of the
taper seal portion: 2 mm inside the tip).
3 Sleeve nut (8):
25.5 – 29.4 Nm {2.6 – 3.0 kgm}
[*3]
3 Holder mounting bolt (10):
27 – 30 Nm {2.8 – 3.1 kgm}
