SEN04129-02 50 Disassembly and assembly
12 PC130-8
Installation
q Carry out installation in the reverse order to
removal.
[*1]
a Adjust the track shoe tension. For detail, see
Testing and adjusting, "Testing and adjusting
track shoe tension".
[*2]

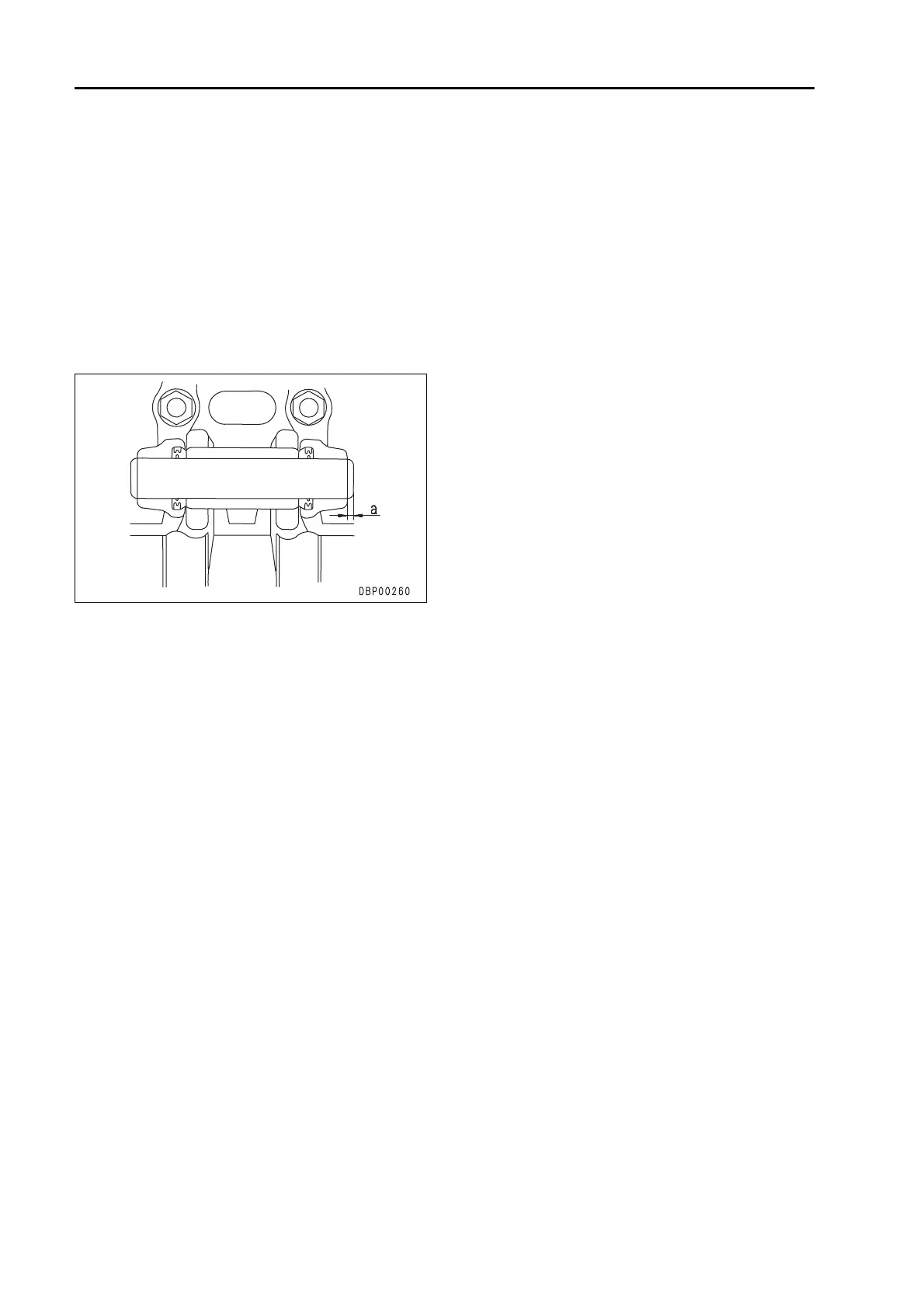

a Using tool R, press fit the master pin so that its
projection will be dimension (a).
Projection (a) of master pin: 3 ± 2 mm
[*3]
a When installing the dust seal, apply grease
(G2-LI-1) to its contact face to the bushing.
a When press fitting the master pin, apply
grease (G2-LI-1) to the inside of the master
bushing.
a If the rubber part of the road liner specification
(rubber pad type) is worn and broken to dam-
age the mounting bolt heads, replace the shoe
with new one immediately. If the bolt heads
are crushed, the bolts cannot be removed.
