50 Disassembly and assembly SEN04130-01

PC130-8

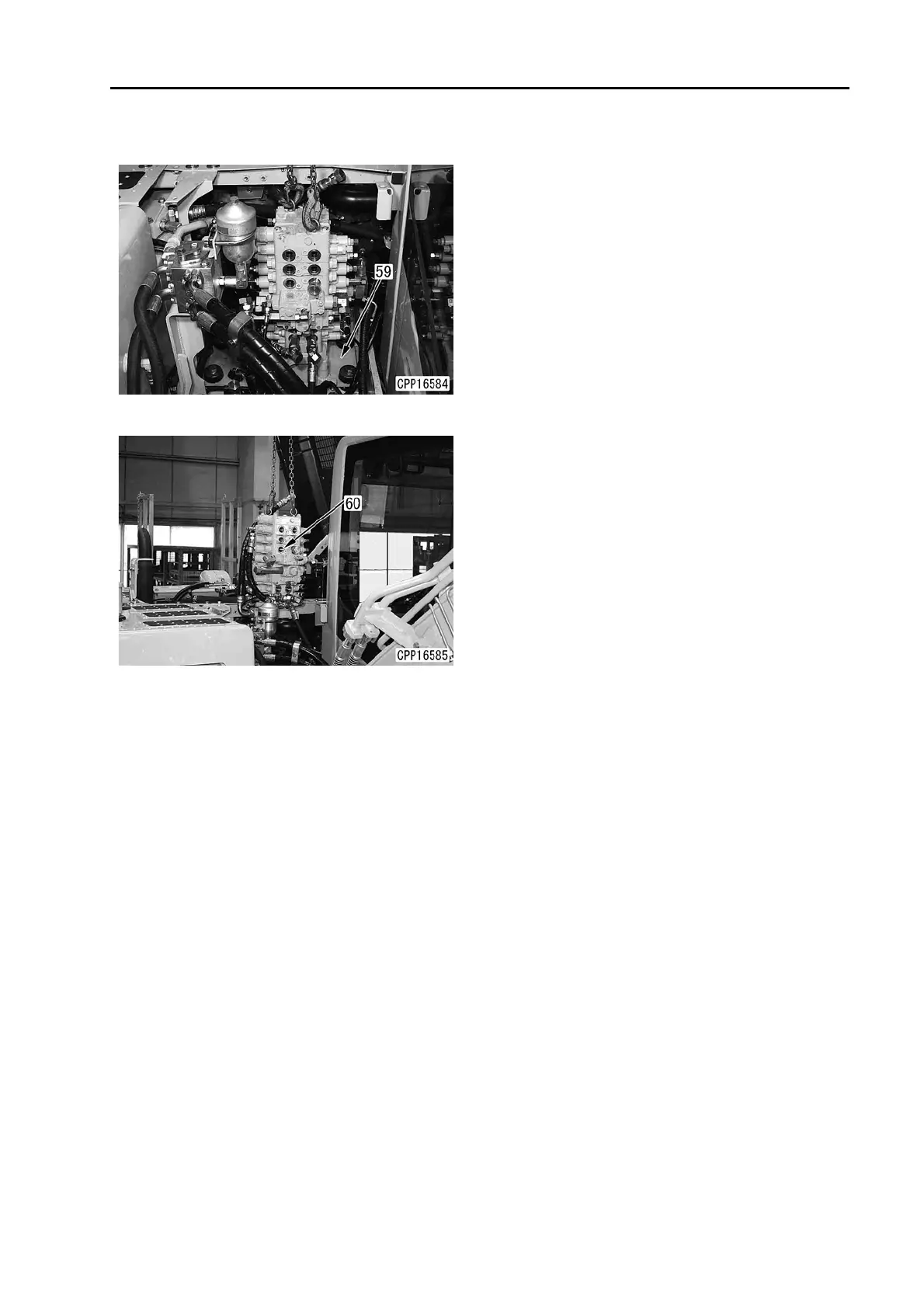

14. Remove the 4 bolts on the underside of the

control valve mount (59).

15. Lift off control valve assembly (60).

Installation

q Carry out installation in the reverse order to

removal.
