50 Disassembly and assembly SEN04132-01
PC130-8
21

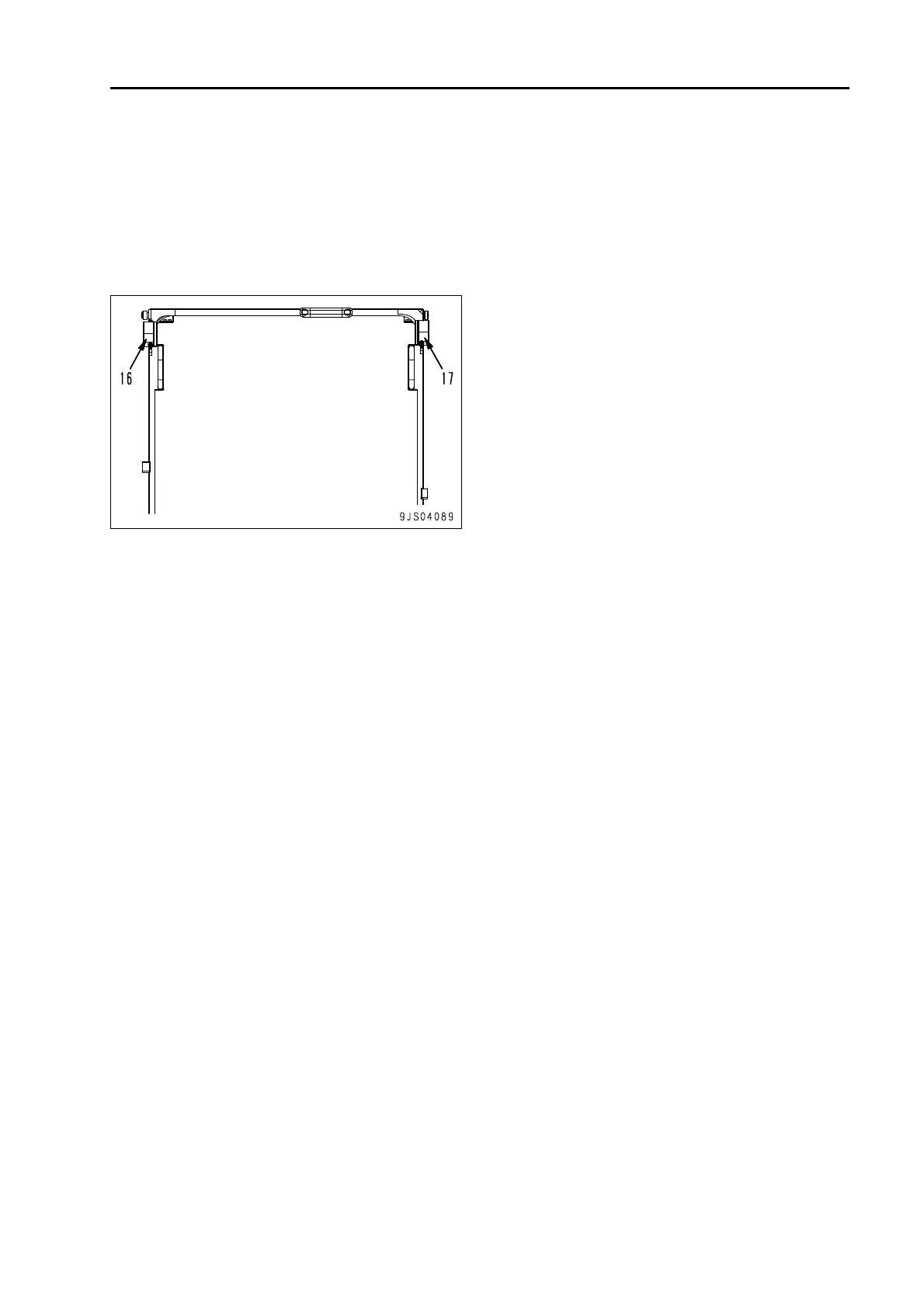

10. Check the operating effort of the lock of the
front window assembly.
1) After finishing the adjustment of steps 6 –
9
, check that latching efforts of both right
and left locks (16) and (17) are even.
a Che
ck the latching efforts on both
“Close“ side (in the front of the oper-
ator's cab) and “Open“ side (in the
rear of the operator's cab).
[*2]
3 Left lower pin:
27 – 34 Nm {2.75 – 3.47 kgm}
2 Mounting bolt: Adhesive (LT-2)
