B3-6 Dump Body B03025
Adjustment
1. Truck must be parked on a flat, level surface for
inspection.
2. All pads, except the rear pad on each side,
should contact the frame with approximately
equal compression of the rubber.
3. A gap of approximately 1.5 mm (0.06 in.) is
required at each rear pad. This can be accom-
plished by using one less shim at each rear
pad.
4. If pad contact appears to be unequal, repeat the
above procedure.
Proper body pad to frame contact is required to
assure maximum pad life.

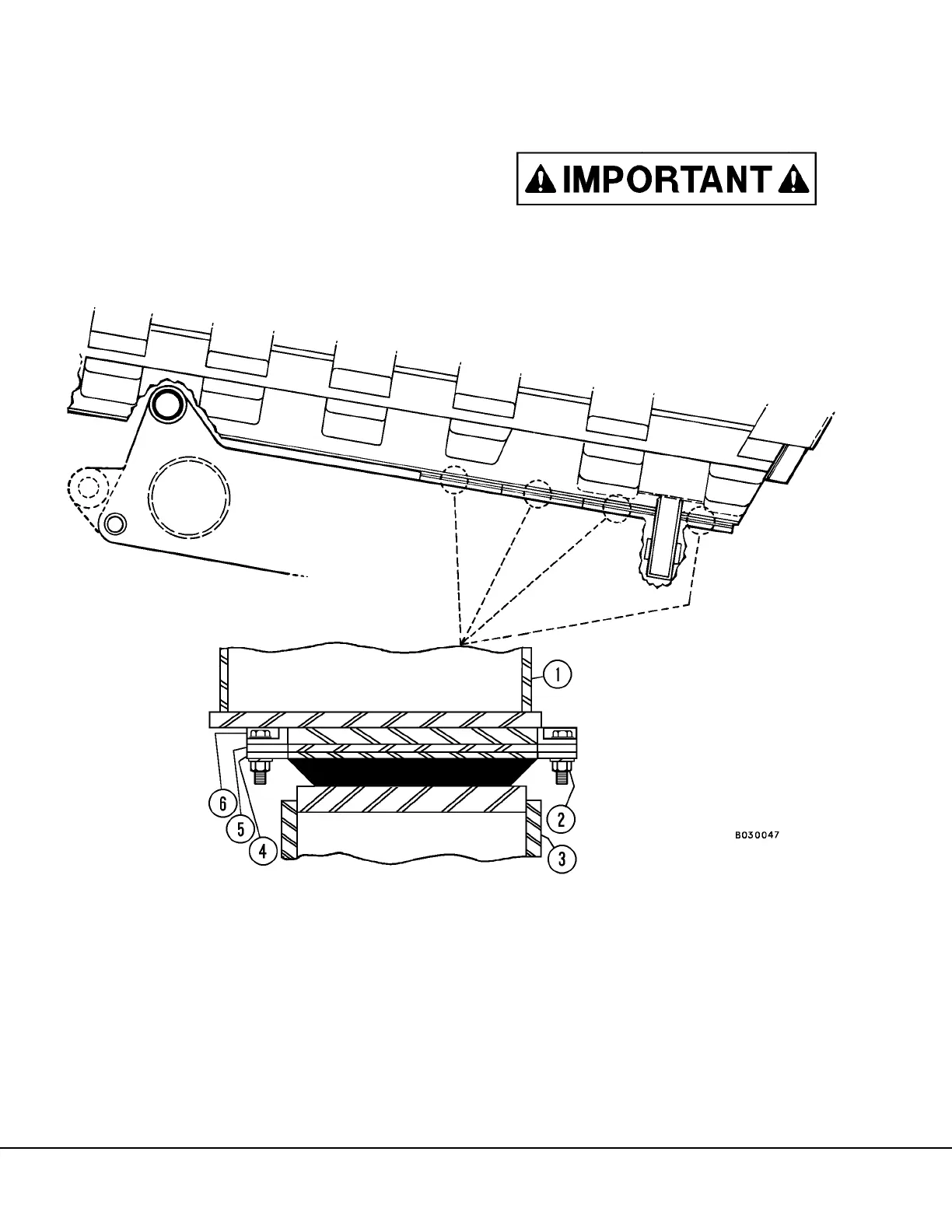

FIGURE 3-4. BODY PAD INSTALLATION
1. Dump Body
2. Pad Mounting Hardware
3. Frame
4. Body Pad
5. Shim
6. Mounting Pad
