N02019 Truck Cab N2-3
TRUCK CAB
TRUCK CAB AND COMPONENTS
DESCRIPTION
The truck cab is a fully insulated design incorporating
an integral ROPS structure for maximum operator
comfort and safety. All gauges, switches, and con-
trols have been designed to simplify operation and
are placed within easy reach of the operator. Servic-
ing of cab and associated electrical systems is sim-
plified by use of heavy-duty connectors on the
various wiring harnesses. Hydraulic components are
located outside of the interior and are accessed
through covers (2, Figure 2-1) on the front of the cab.
DO NOT attempt to modify or repair damage to
the ROPS structure without written approval from
the manufacturer. Unauthorized repairs to the
ROPS structure will void certification. If modifica-
tion or repairs are required, contact the servicing
Komatsu Distributor.

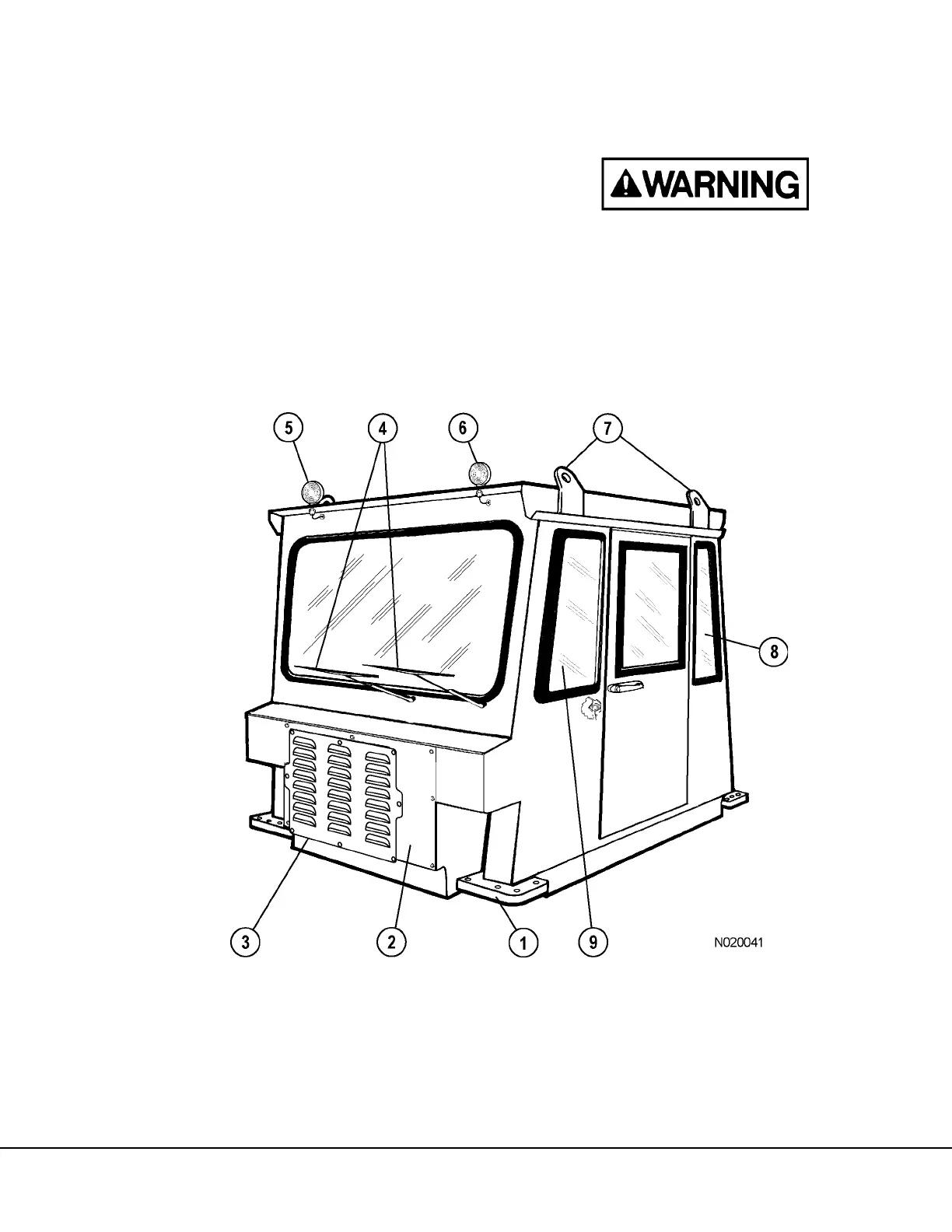

FIGURE 3-1. CAB ASSEMBLY
1. Mounting Pad
2. Access Covers
3. Filter Cover
4. Windshield Wiper Arms
5. Stop Light (Service Brakes Applied)
6. Retard Light (Retarder Applied)
7. Lifting Eye
8. Rear, Side Glass
9. Front, Side Glass
