N02019 Truck Cab N2-15
Door Opening Seal Removal
1. Starting at the lower center of the door opening,
pull up on one end of the seal. Seal should pull
loose from the cab opening lip. Pull seal loose
all the way around the opening (1, Figures 2-16
& 2-17).
2. Inspect cab opening lip for damage, dirt, or oil.
Repair or clean cab opening as necessary.
Remove dirt, old sealant etc. Be certain perime-
ter of opening is clean and free of burrs, etc.
Installation
1. Install the seal material around the door open-
ing in the cab. Start at the bottom center of the
cab opening and work the seal lip over the edge
of the opening. Go all the way around the open-
ing. Be sure that the seal fits tight in corners. A
soft face tool may be used to work the seal up
into the corners.
2. Continue going all the around the opening.
When the ends of the seal meet at the starting
bottom center of the cab opening, it may be
necessary to trim off some of the seal.
NOTE: The ends of the seal material need to be
square-cut to assure a proper fit.
3. Fit both ends so that they meet squarely, then
while holding ends together, push them firmly
into the center of the opening.

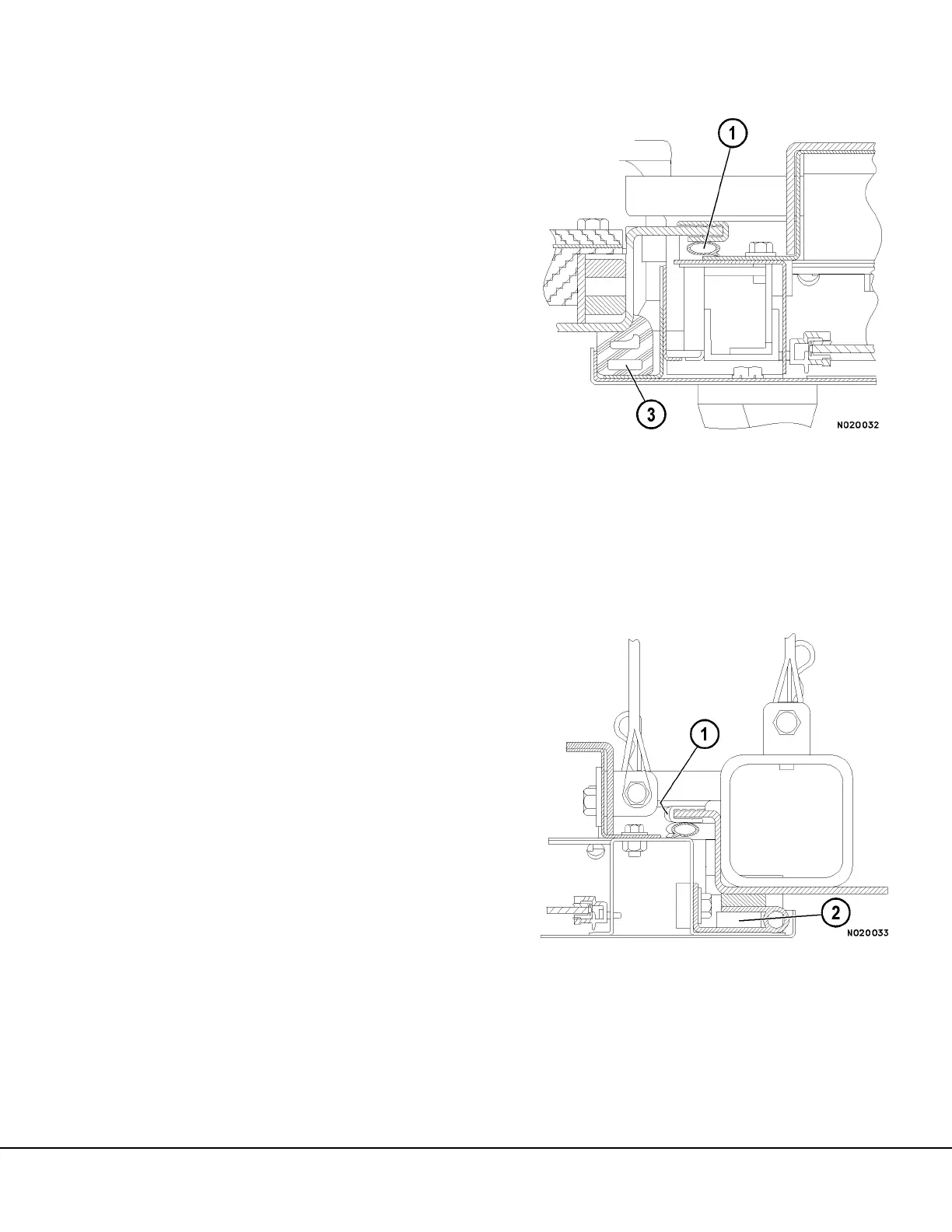

FIGURE 3-16.
1. Door Opening Seal 3. Door Assembly Seal
FIGURE 3-17.
1. Door Opening Seal 2. Door Hinge Seal
