B03025 Dump Body B3-7
BODY GUIDE
1. Body guide wear points should be inspected
each time a body pad inspection is performed.
(Refer to Figure 3-5.) The body guide should be
centered between the wear plates (3), with a
maximum gap of 4.8 mm (0.19 in.) at each side
when new.
2. If gap becomes excessive, install new parts.
BODY-UP RETENTION CABLE
To avoid serious personal injury or death, the
body up retention cable must be installed any-
time personnel are required to perform mainte-
nance on the vehicle with the dump body in the
raised position.
1. To hold the dump body in the up position, raise
the body to its maximum height. (Refer to Fig-
ure 3-6.)
2. Remove the cable (3) from its stored position on
the body and install between the rear body ear
(1) and the axle housing ear (4).
3. Secure the cable clevis pins with cotter pins.
4. After maintenance work is completed, reverse
the above procedure to remove cable assembly
and place it in the storage position.

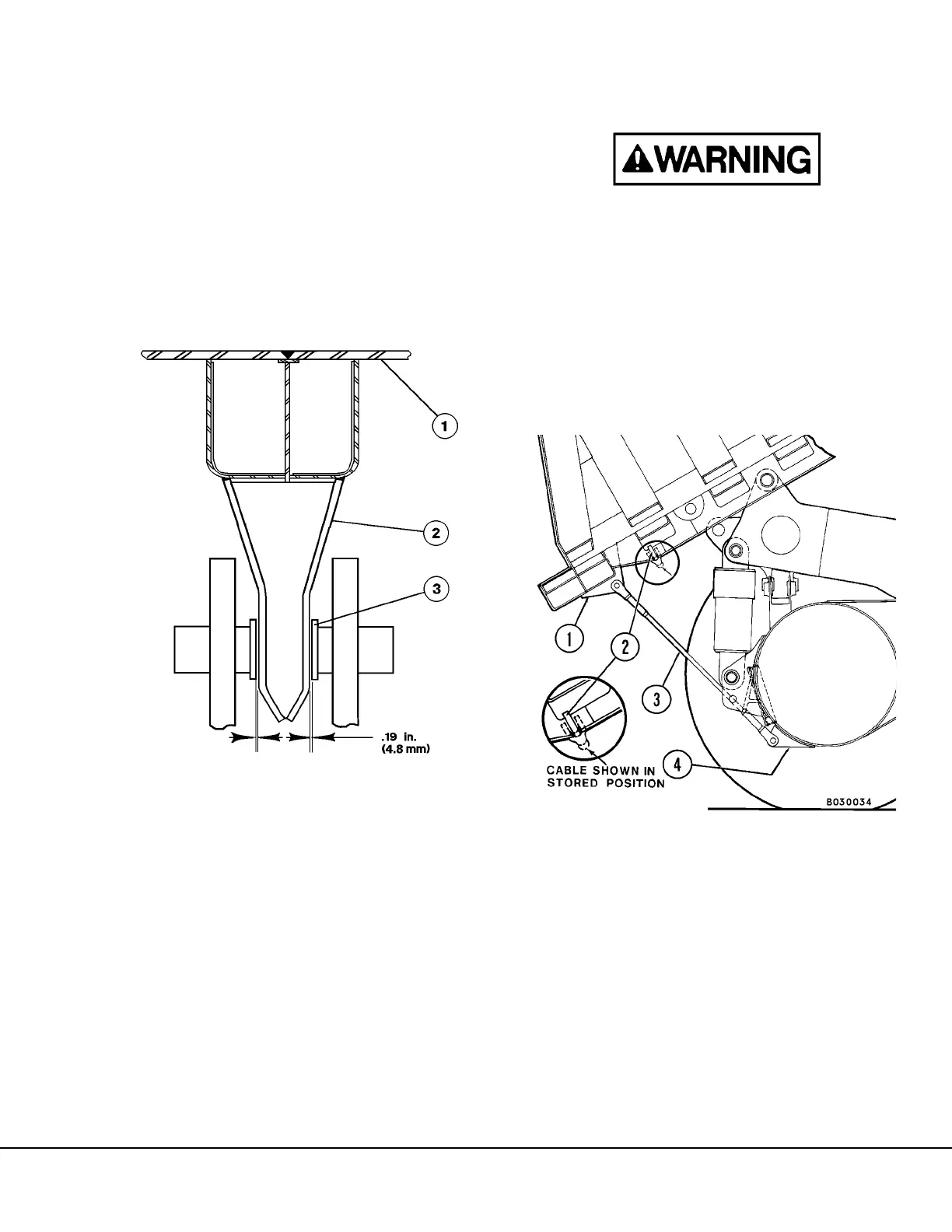

FIGURE 3-5. BODY GUIDE
1. Dump Body
2. Body Guide
3. Body Guide Wear
Plates
FIGURE 3-6. BODY-UP CABLE INSTALLATION
1. Rear Body Ear
Structure
2. Cable Storage
3. Cable
4. Axle Housing Ear
Structure
