MAINTENANCE
SERVICE PROCEDURE

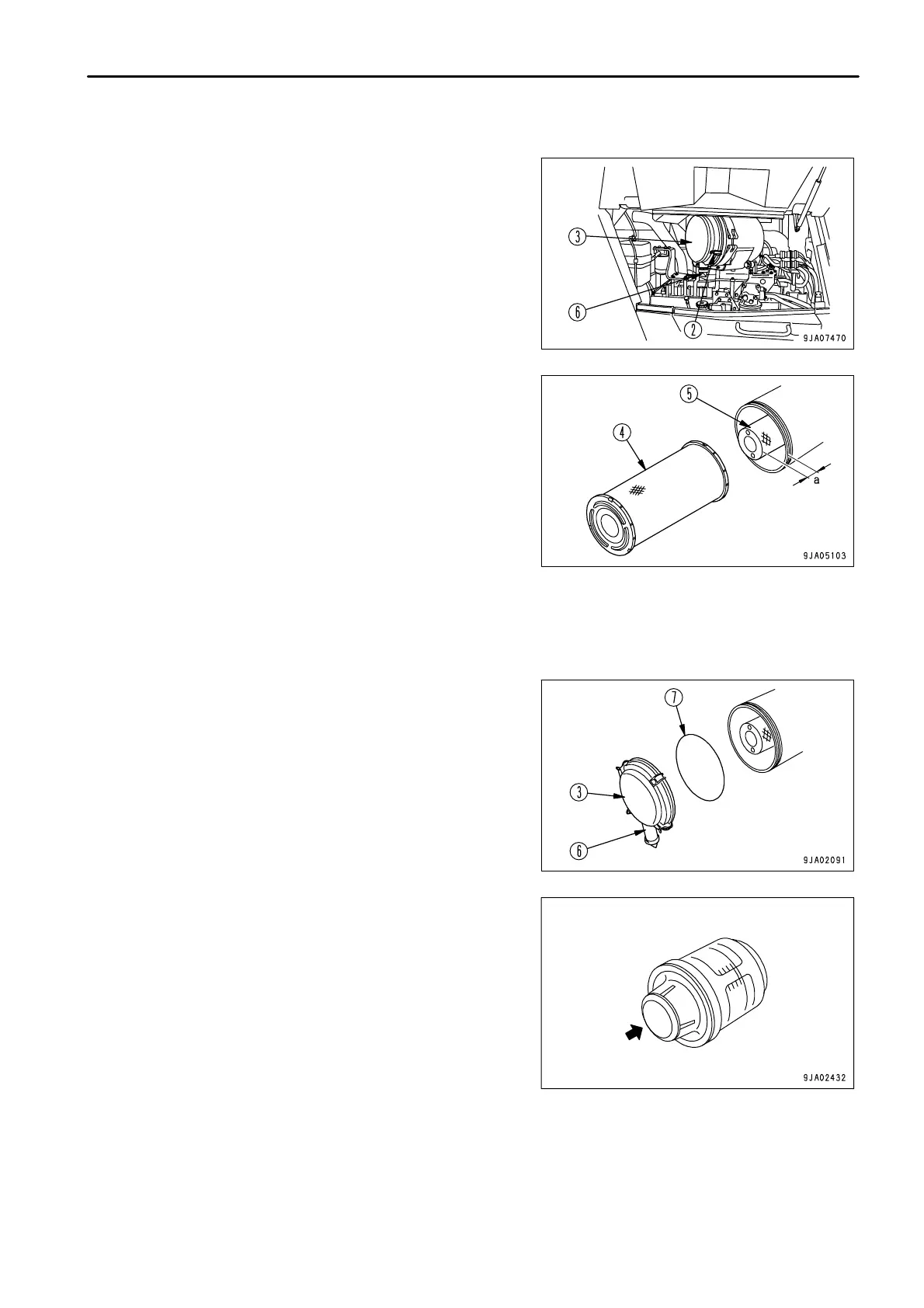

REPLACING ELEMENT
1.
Open the left engine side cover.
2.
Remove three clips (2), then remove cover (3).
3.
Remove outer element (4).
Do not remove inner element (5) at this time, however.
4.
Clean the interior of the air cleaner body, cover (3) and
evacuator valve (6).
NOTICE
If the outer element and cover are installed when the inner element is not
installed properly, the outer element may break.
When installation is correct, protrusion "a" of the inner element from the air
cleaner body is 35 mm.
5.
Remove inner element (5), then quickly install the new inner element.
Push the inner element in properly and check that it is fitted securely.
6. Set the new outer element (4) in position.
7.
Replace O-ring (7) for cover (3) with new one.
8.
Set the arrow mark on cover (3) at the top, install to the air
cleaner body, then secure with clip (2).
9.
Push the button of dust indicator (1) and return the yellow
piston to its original position.
REMARK
Immediately after a new element has been installed, the yellow
piston of the dust indicator may go to the 2nd position, but this does
not indicate any abnormality.
10. Close the left engine side cover.
4 - 27
