OPERATION
EXPLANATION OF COMPONENTS

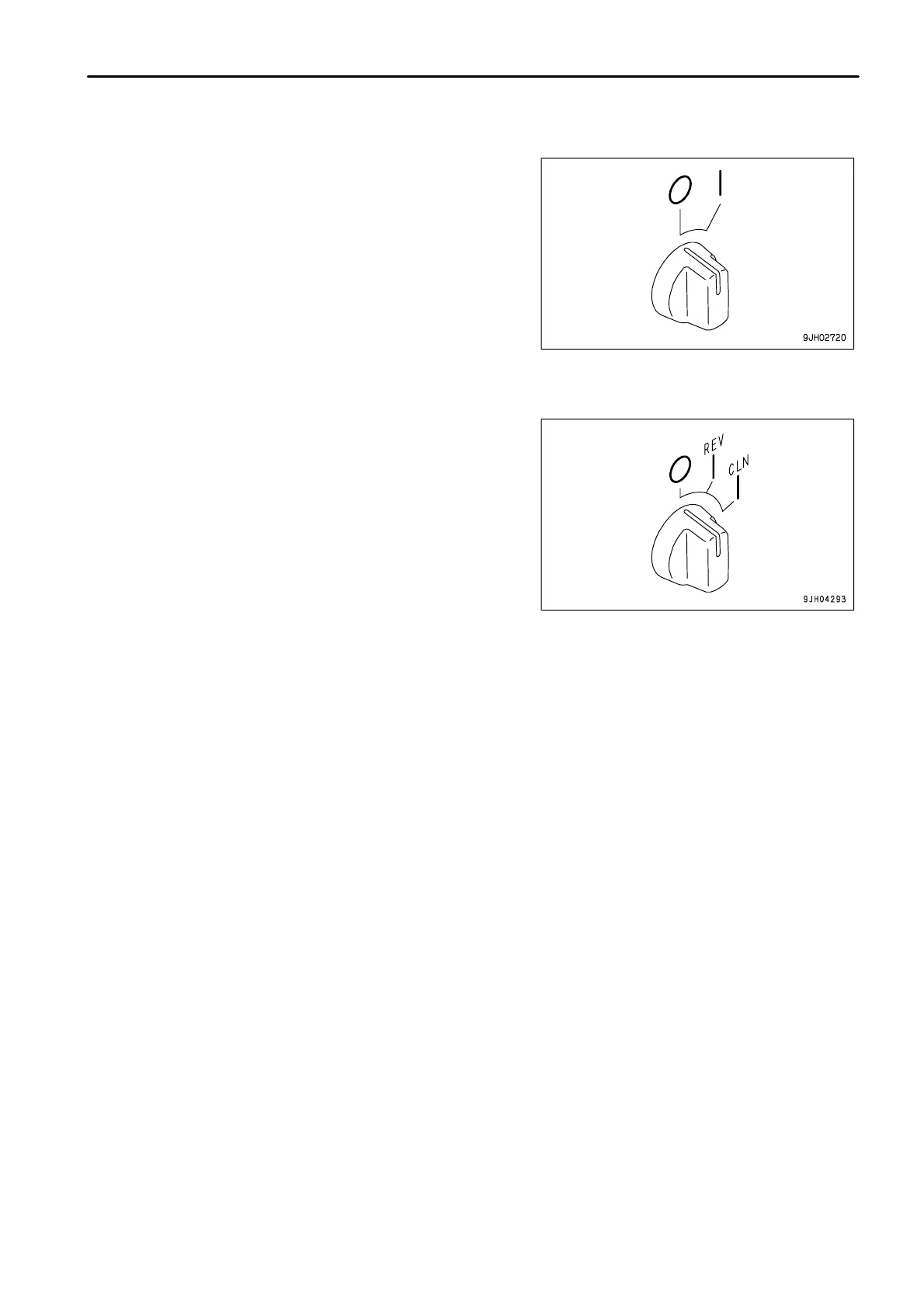

REAR LAMP SWITCH
This switch (5) lights up when the rear lamp and panel lamp light
up.
Q (OFF) position: Lights out
l (ON) position: Lights on
FAN ROTATION SELECTOR SWITCH
This switch (6) is used to switch the direction of rotation of the
cooling fan.
Q position : Normal rotation
Normally use this position.
The air is pushed out to the front through the
radiator mask.
The speed of the fan changes to match the
temperature of the coolant in order to improve the
cooling efficiency.
REV position: Reverse rotation
The fan rotates in the reverse direction.
The air is sucked into the engine room through the
radiator mask. This makes it possible to use the
heat from the radiator to warm the operator's cab.
Operating with the fan rotating in reverse may cause
overheating, so use this function only during cold
weather (ambient temperature below 15°C).
CLN position: Cleaning
The fan rotates in the reverse direction at high
speed, regardless of the coolant temperature.
Use this function to clean the radiator fins.
Stop the engine and turn the starting switch to the ON position before operating this switch.
3 - 21
