OPERATION
EXPLANATION OF COMPONENTS

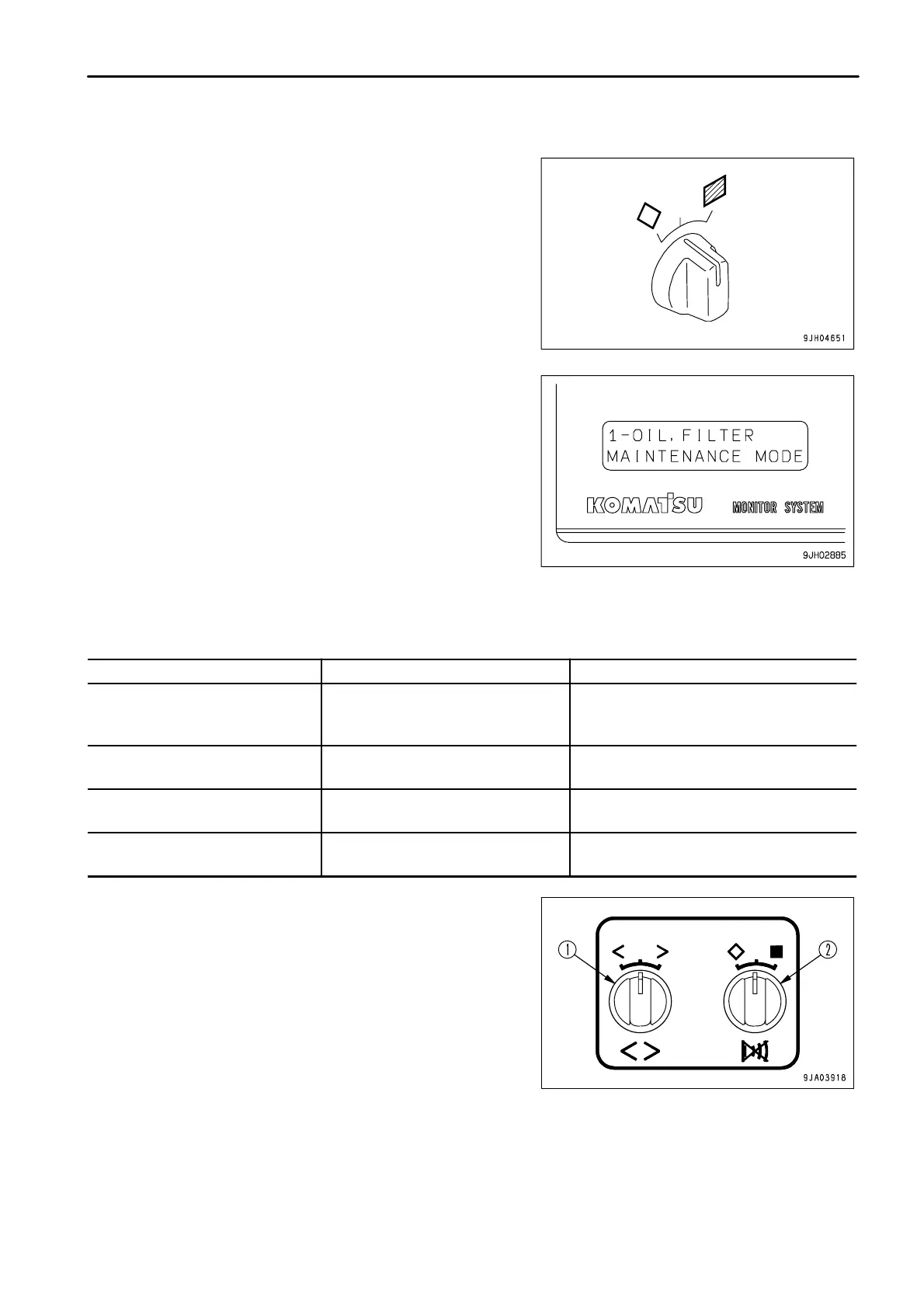

METHOD OF USING DISPLAY PANEL B (Multi-information)
To switch from the operation mode to the maintenance mode, turn
the buzzer cancel switch to the U position and hold it there for at
least 2.5 seconds. The screen will switch to the maintenance
mode.
On the first screen, the oil and filter maintenance mode is
displayed.
EXPLANATION OF MODES AND CONTROLS
The maintenance mode has the following 4 sub modes.
Sub mode Function Reference items
Oil/filter maintenance mode
Oil or filter replacement time is
displayed
METHOD OF USING MAINTENANCE
MODE(3-27 PAGE)
PM clinic auxiliary mode
Engine speed or hydraulic circuit
pressure is displayed
METHOD OF USING PM CLINIC
AUXILIARY MODE(3-29 PAGE)
Fault code display mode
Fault codes for electronic control
related parts are displayed
METHOD OF USING FAULT CODE
DISPLAY MODE(3-30 PAGE)
Adjustment mode Adjusts monitor brightness, etc.
METHOD OF USING USER ADJUST
MODE(3-31 PAGE)
Use information switch (1) and buzzer cancel switch (2) to operate
each mode.
3 - 25
