OPERATION
GENERAL VIEW

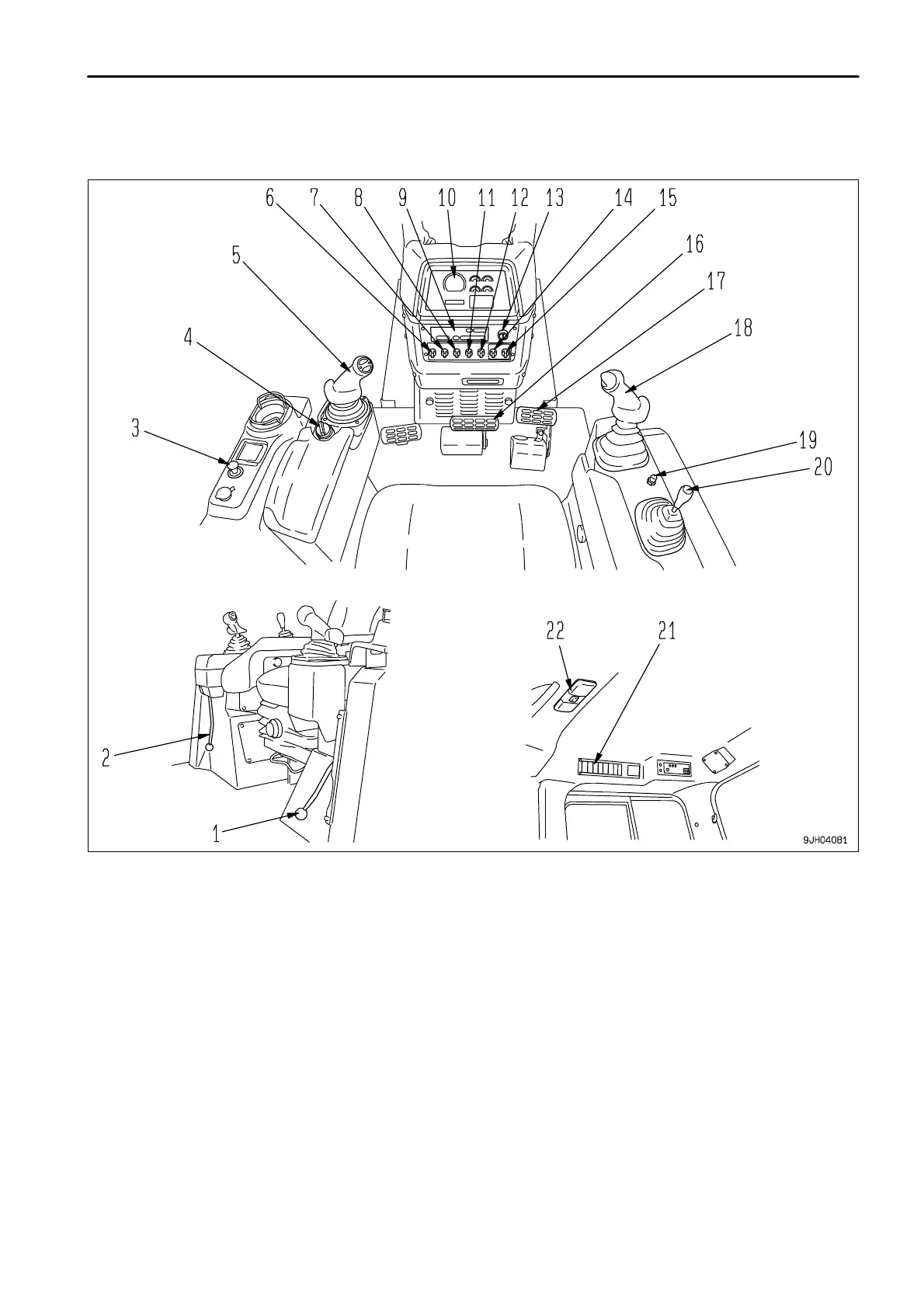

GENERAL VIEW OF CONTROLS AND GAUGES
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
Parking brake lever
Work equipment lock lever
Cigarette lighter
Fuel control dial
Joystick
(Steering, directional and gear shift lever)
Auto shift down switch
Preset mode switch
Front lamp switch
Air conditioner panel or heater panel
Display panel A
(Speed range display, Engine speed)
(11)
(12)
(13)
(14)
(15)
(16)
(17)
(18)
(19)
(20)
(21)
(22)
Rear lamp switch
Fan rotation selector switch
Starting switch
Information switch
Buzzer cancel switch
Brake pedal
Deceleration pedal
Blade control lever
Horn switch
Ripper control lever
Wiper switch
Room lamp switch
