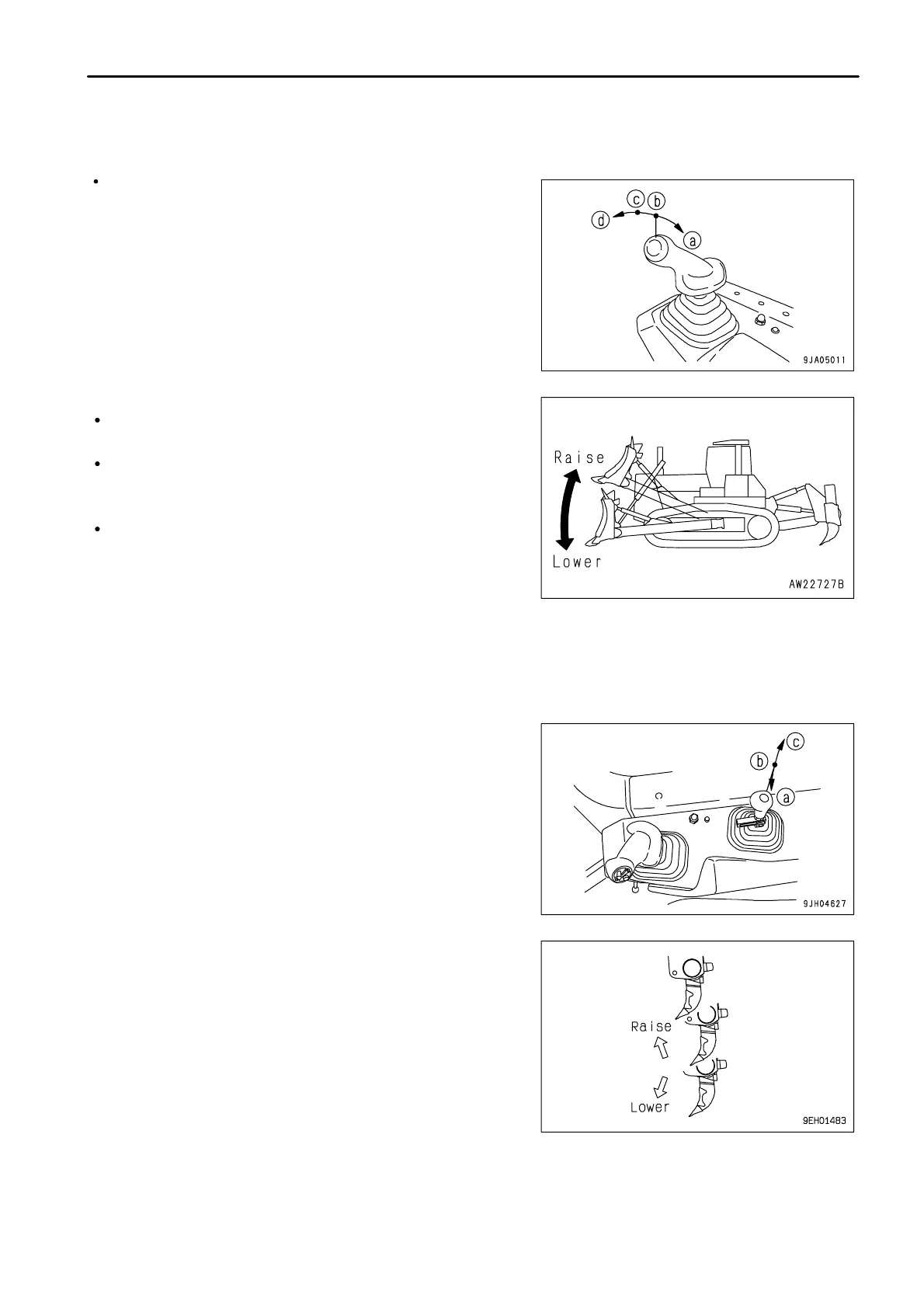

OPERATION
EXPLANATION OF COMPONENTS
SINGLE TILT DOZER
This lever (6) is used to lift the blade.
Lifting control
(a) RAISE:
(b) HOLD: Blade is stopped and held in this position.
(c) LOWER:
(d) FLOAT: Blade will move freely according to external force.
REMARK
If the lever is in the FLOAT position, even when it is released,
it does not return to the HOLD position, so return it by hand.
If the engine is stopped when the control lever is in the FLOAT
position, the lever is returned automatically to the HOLD
position.
In low temperatures, it may take a short time for the blade
control lever to be held in the FLOAT position, so hold the lever
in position for at least 1 second.
RIPPER CONTROL LEVER
This lever (7) is used to operate the ripper.
FIXED MULTI-SHANK RIPPER SPECIFICATION
(a) RAISE
(b) HOLD: Ripper is stopped and held in the same position.
(c) LOWER
3 - 43
