MAINTENANCE
SERVICE PROCEDURE
MAINTENANCE
SERVICE PROCEDURE

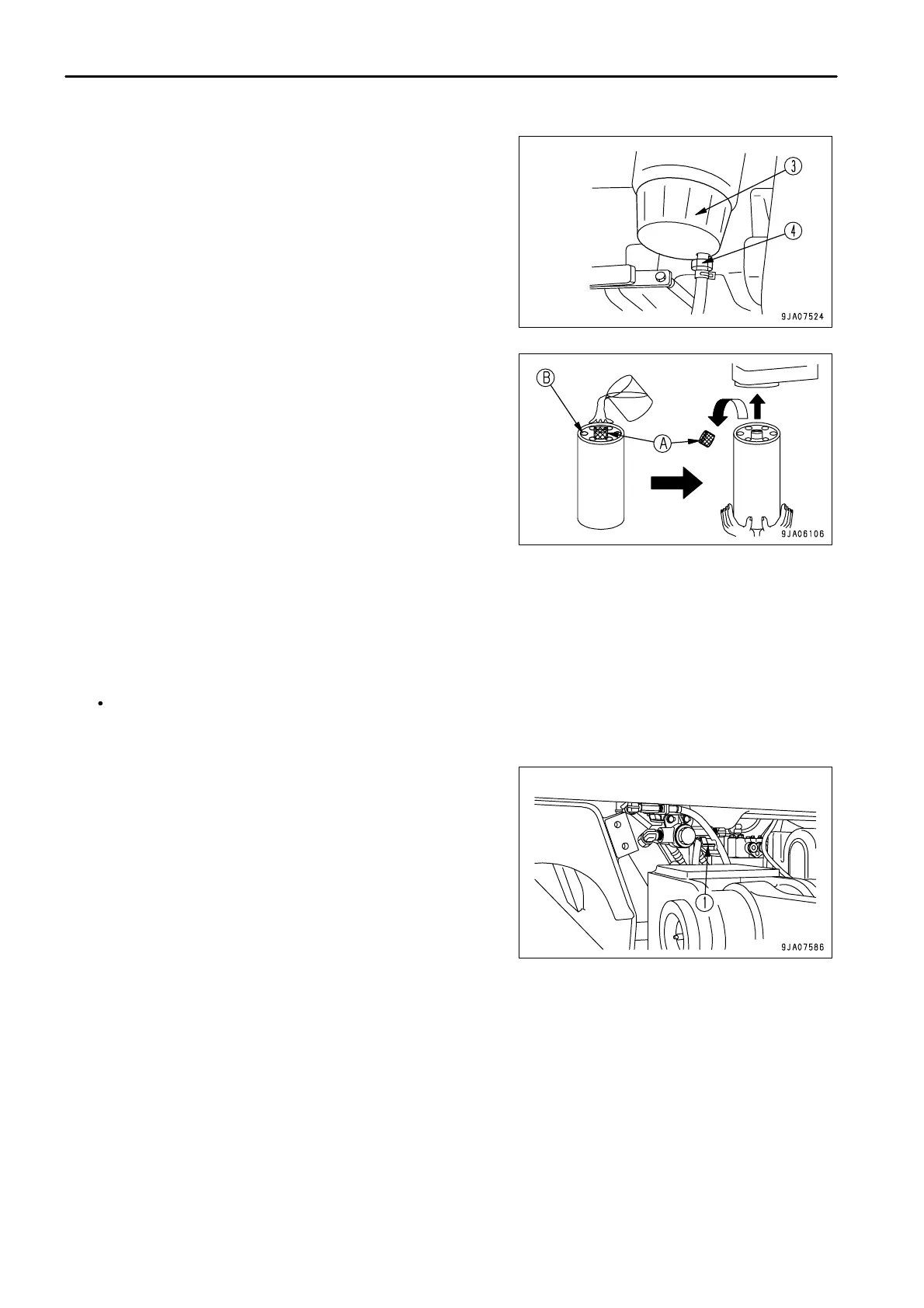

6. Check that the drain plug(4) at the bottom of the pre-fuel filter
cup(3) is tightened securely.
Tightening torque: 0.2 to 0.45 Nm (0.02 to 0.046 kgm , 0.1 to
0.3 lbft)
7.
Clean the filter holder.
NOTICE
When filling the filter cartridge with fuel, carry out the filling operation with
cap (A) fitted.
Cap (A) acts to prevent the entry of dirt or dust into the filter cartridge.
8.
Fill the filter cartridge with clean fuel through the 8 small holes
(B) in the new filter cartridge.
9. Coat the packing surface of the filter cartridge with oil.
10.
Remove filter cartridge cap (A) and install to the filter holder.
11.
When installing, tighten until the packing surface contacts the seal surface of the filter holder, then tighten it 3/4
of a turn.
If the filter cartridge is tightened too far, the packing will be damaged and this will lead to leakage of fuel. If the
filter cartridge is too loose, fuel will also leak from the packing, so always tighten the correct amount.
When tightening with a filter wrench, be extremely careful not to dent or damage the filter.
12. When carrying out standard replacement of the fuel filter cartridge (every 1000 hours), replace the cartridge and
bleed the air. For details, see "REPLACE FUEL MAIN FILTER CARTRIDGE (PAGE 4-60)".
13.
Open the fuel valve (1).
14. Start the engine, check that there is no leakage of fuel from the
filter seal surface or water separator mounting surface, then
run for approx. 10 minutes at low idling.
4 - 54
