OPERATING THE MACHINE
5-27
REMOVING THE MULTI-PURPOSE BUCKET
1. Lower the multi-purpose bucket onto level ground.
2. Switch off the engine.

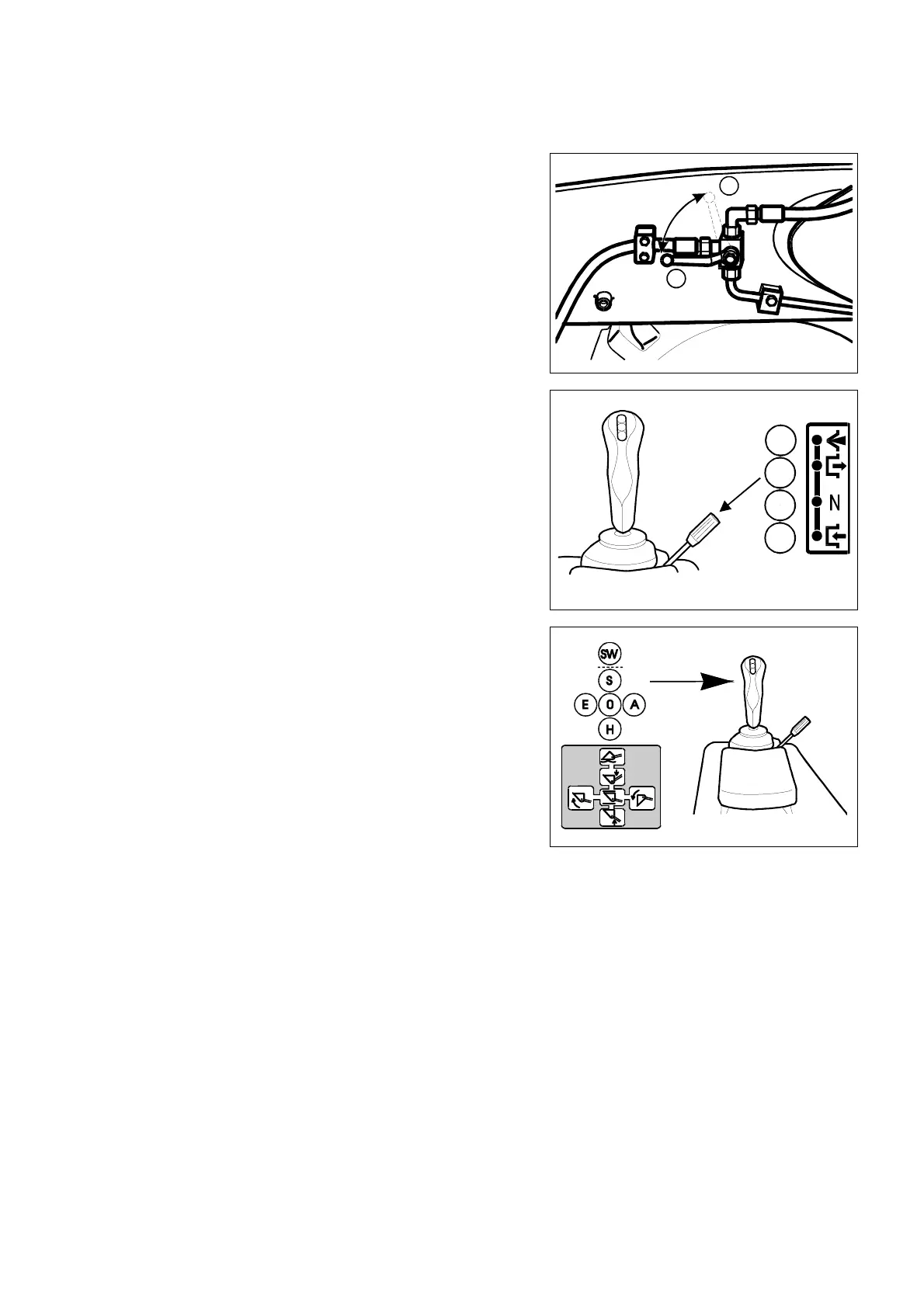

3. Set the control lever for special equipment first to position ’1’
and then to position ’2’ (fig. 75_042).
4. Turn the change-over lever for the supplementary control cir-
cuit to position ‘2’ until it reaches the limit stop (fig. 75_160).
5. Disconnect the multi-purpose bucket hoses from the quick
couplings.
6. Restart the engine.
7. Unlock the quick-change unit by setting the control lever for
special equipment into position ‘1’ (fig. 75_042).
8. Set the quick-change unit into the dumping position ‘A’ (fig.
75_042) using the multi-function lever, until the quick-
change unit is unhooked of the work unit’s pickup hooks.
9. Make sure that nobody is behind the machine and drive the
machine away from the work unit.
2
1
75_160
75_04
2
2
3
0
1
75_016
