EQUIPMENT

1-15

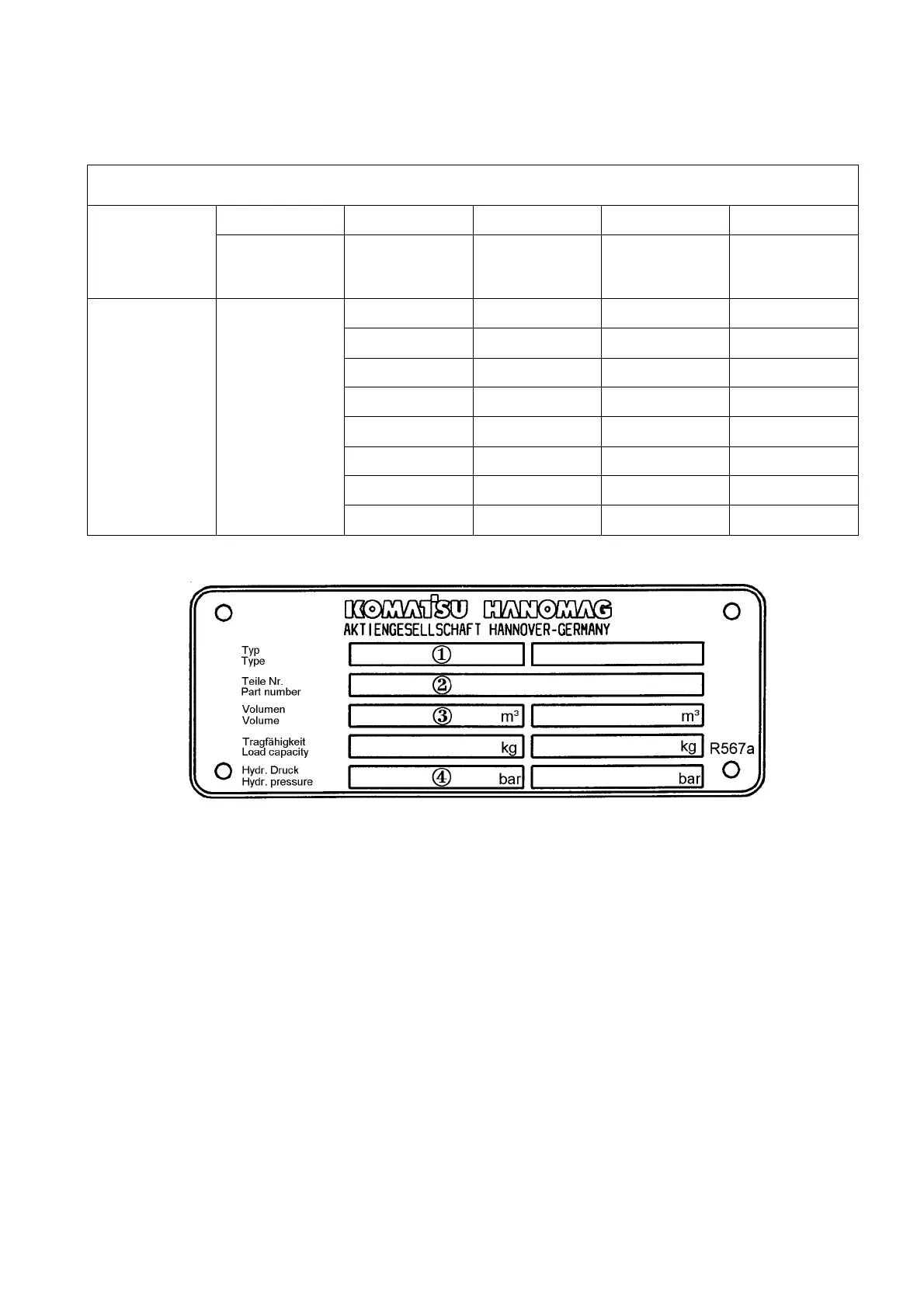

EQUIPMENT

1. Typ

Type

2. Teile Nr.

Part number

3. Volumen

Volume

4. Hydr. Druck

Hydr. pressure

EQUIPMENT

WA65-3

1234-

Type Part No.

Volume

cuft (m³)

Hydr.

pressure

bar

Weight

lb (kg)

Bucket WA65-3

42T-70-12000 24.733 (0,7) – 571 (259)

42T-70-12010 24.733 (0,7) – 626 (284)

42T-70-12020 24.733 (0,7) 200 1014 (460)

42T-70-12040 24.733 (0,7) 200 1113 (505)

42T-70-12050 38.869 (1,1) 200 1102 (500)

42T-70-12080 19.433 (0,55) 200 1014 (460)

42T-70-12120 19.433 (0,55) 200 1168 (530)

42U-70-12141 35.335 (1,0) 200 842 (382)
