MAINTENANCE EVERY 250 OPERATING HOURS
7-46
FRONT AND REAR AXLE, CHECKING THE OIL LEVEL
• There is danger of severe accidents, if you perform main-
tenance work at a machine that has not been parked and
secured correctly!
Park the machine on a solid, even surface and secure it,
before you start to perform maintenance work.
Before you start maintenance work, park and secure the ma-
chine as described in the chapter "Preparing the Machine for
Maintenance".
PLANET GEAR
1. Move the machine until the oil level marking at the planetary
gearing of the wheel which you are checking is in horizontal
position.

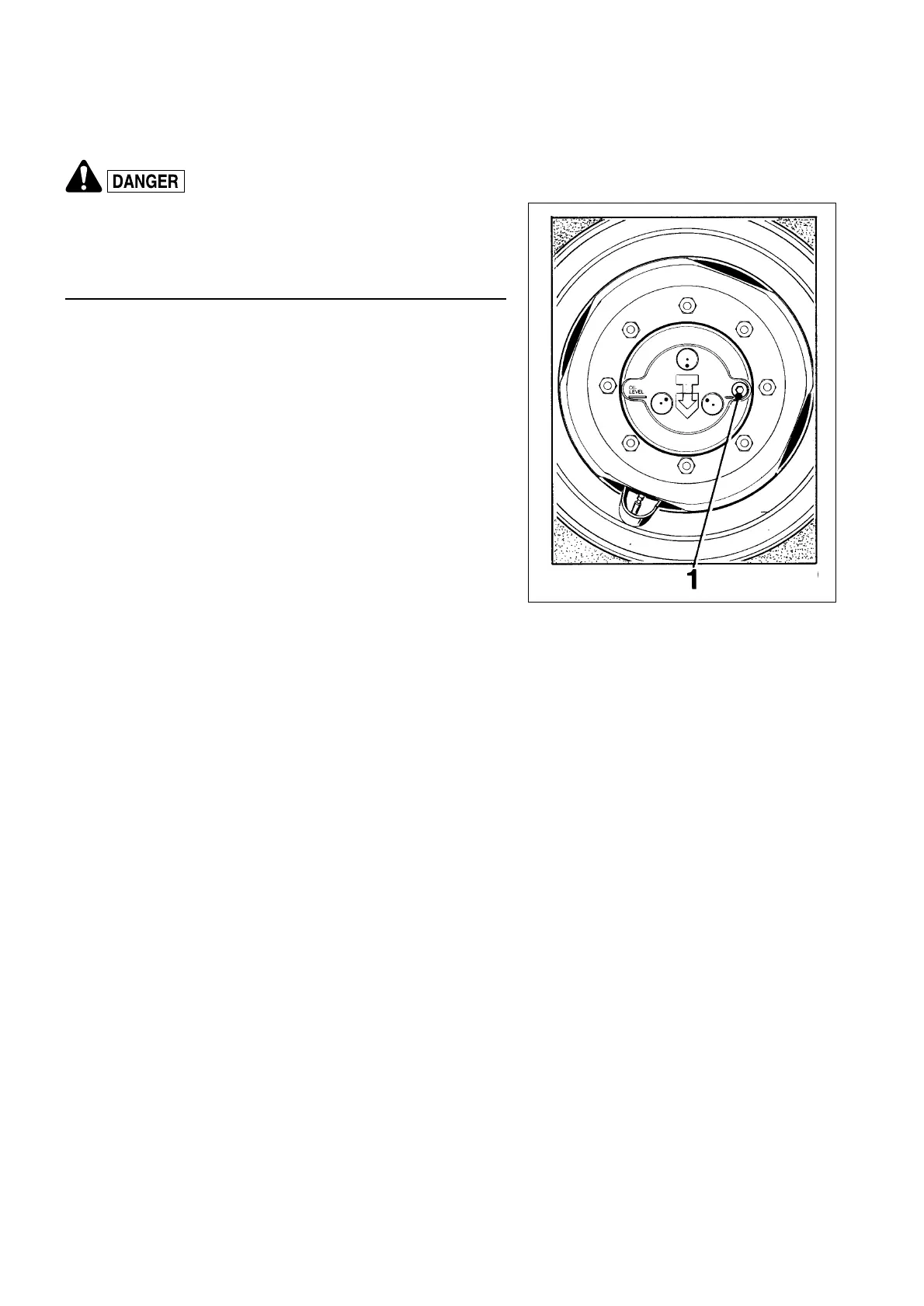

2. Unscrew the locking screw (1) of the drill hole.
3. Check the oil level. The oil level must reach up to the bottom
edge of the check drill hole.
4. If the oil level is too low, top off oil via the check drill hole of
the screw plug.
For details on recommended oils, see section "Lubricants
and Operating Agents".
5. Tightly screw in the screw plug.
6. Check the oil level at the other wheel of the front and rear
axle. For this purpose, proceed as described under points 2
through 5.
75_225
