CONTROLS AND INDICATORS
4-15

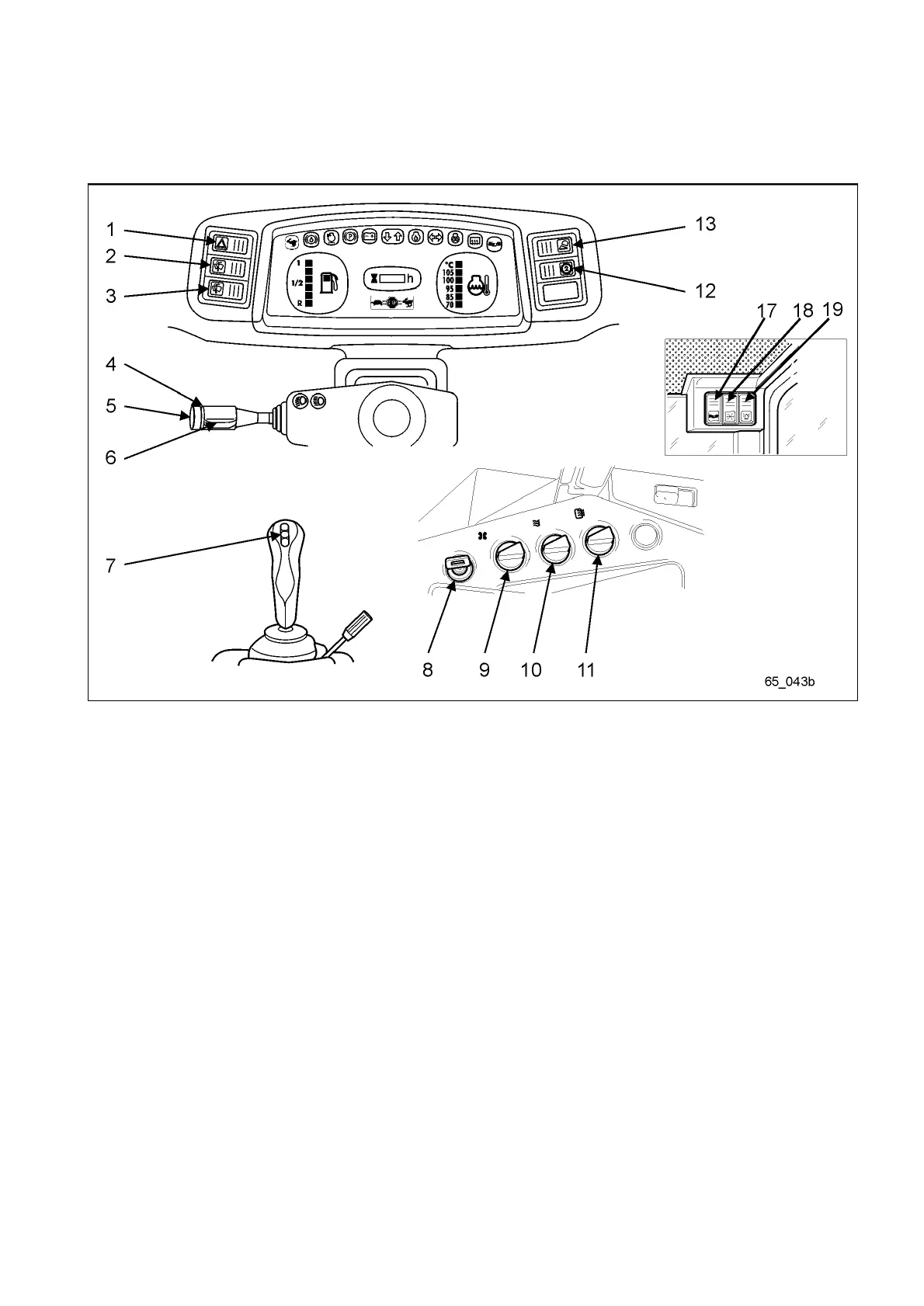

SWITCHES
switch in the cabin
on the top right at
roof lining
1. Switch and control lamp of hazard flashers
2. Switch of front windscreen wiper and washer
3. Switch of rear windscreen wiper and washer
4. Direction indicator lever
5. Horn button
6. Light switch
7. Driving direction switch
8. Start switch
9. Fan rotary switch, for ventilation and heating
10. Heating temperature switch
11. Heated rear windscreen switch
12. Switch and control lamp for driving range up to 12.43 mph (20 km/h)
13. Working lights switch and control lamp
14. Switch for inside lighting (without fig.)
15. Battery main switch (option, without fig.)
17. ALS- Electronics switch with control lamp (option)
18. Air conditioning switch with control lamp (option)
19. Warning beacon switch with control lamp (option)
