MAINTENANCE PRIOR TO START

7-27

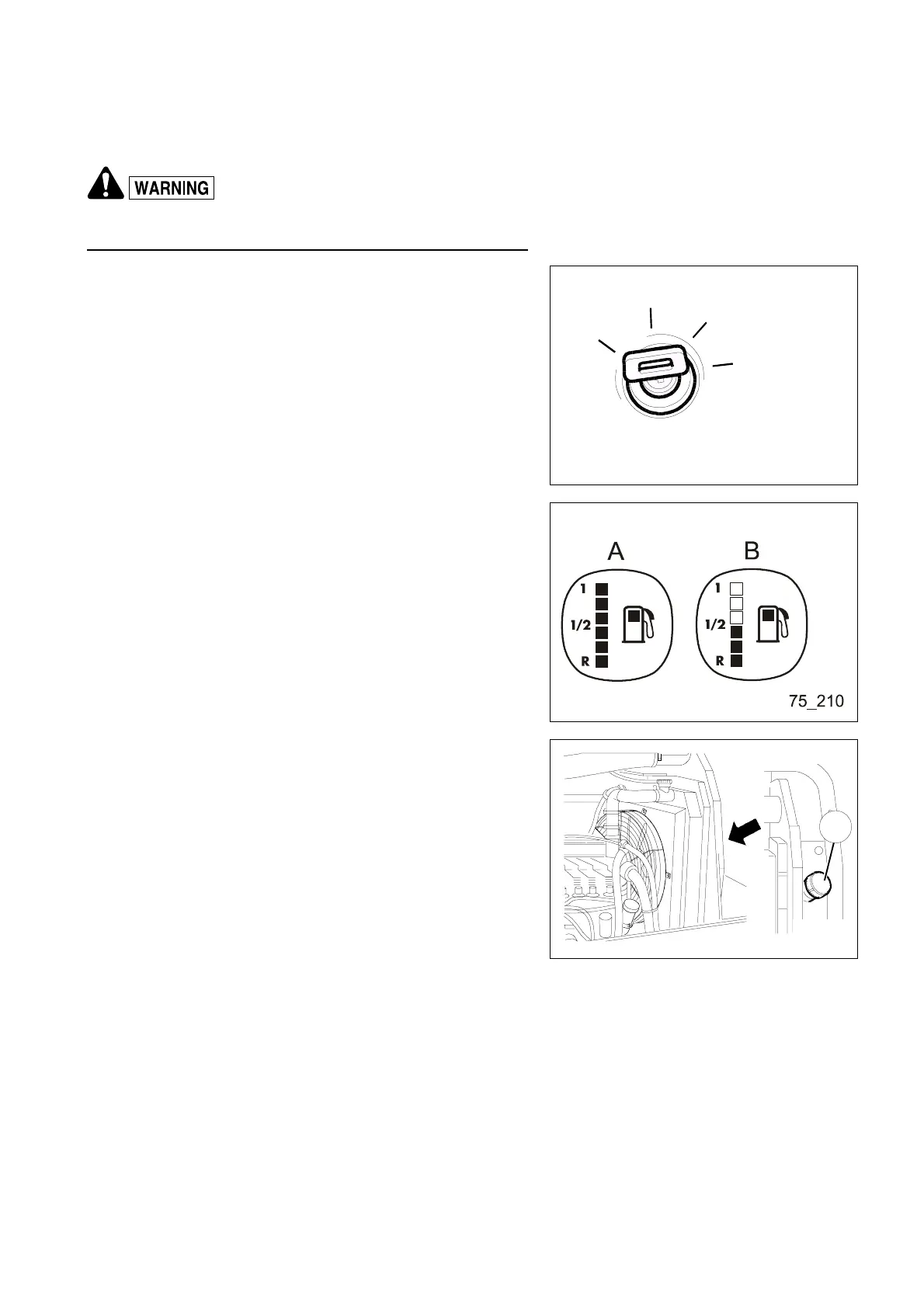

CHECKING THE FUEL LEVEL, REFUELING

• Danger of fire! Fuel that has spilled over may ignite!

Immediately remove fuel that has spilled over.

1. Turn the start switch to the operating position 'I' and check

the fuel level indicated on the fuel level indicator.

2. Then, return the start switch to the stop position '0'.

3. If required, refuel via the filler (1).

For detailed information on fuels, see section "Lubricants

and Operating Agents".

4. After refueling, firmly close the filler.

75_209

75_211

A - fuel tank full

B - fuel tank half-full
