USE OF THE MACHINE AND RELATED CONTROLS
120
WEAM009300

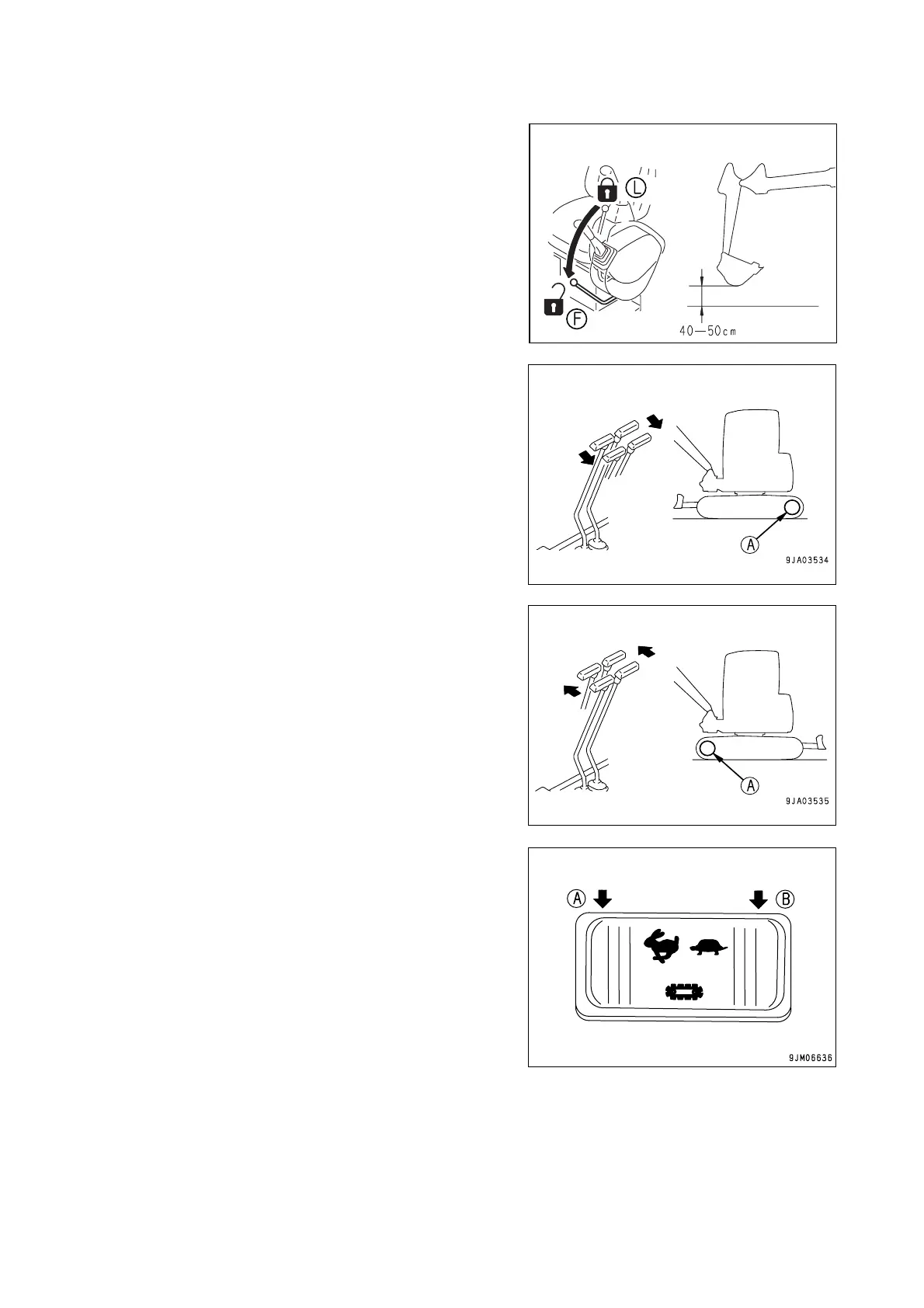

3.3.5.3 MOVING THE MACHINE IN REVERSE
1. Move the safety lever (2) to working position (F), then lift the
working tools 40-50 cm off the ground.
2. Lift the blade.
3. Opearate both travel levers (3) as explained below.
• When the sprocket (A) is at the rear of the machine, pull the
levers (3) slowly backward to start moving in reverse.
• When the sprocket (A) is at the front of the machine, push
the levers (3) slowly forward to start moving in reverse.
Machine with speed increase function
4. Change the travel speed by proceeding as follows.
• Press the travel speed selection switch (4) to change over
from high (A) to low (B) speed and vice versa. The
changeover from high to low speed or vice versa takes
place whenever the switch is pressed.
RKA01610
