Komatsu PC14R-3 User Manual

MACHINE ILLUSTRATIONS
WEAM009300 61

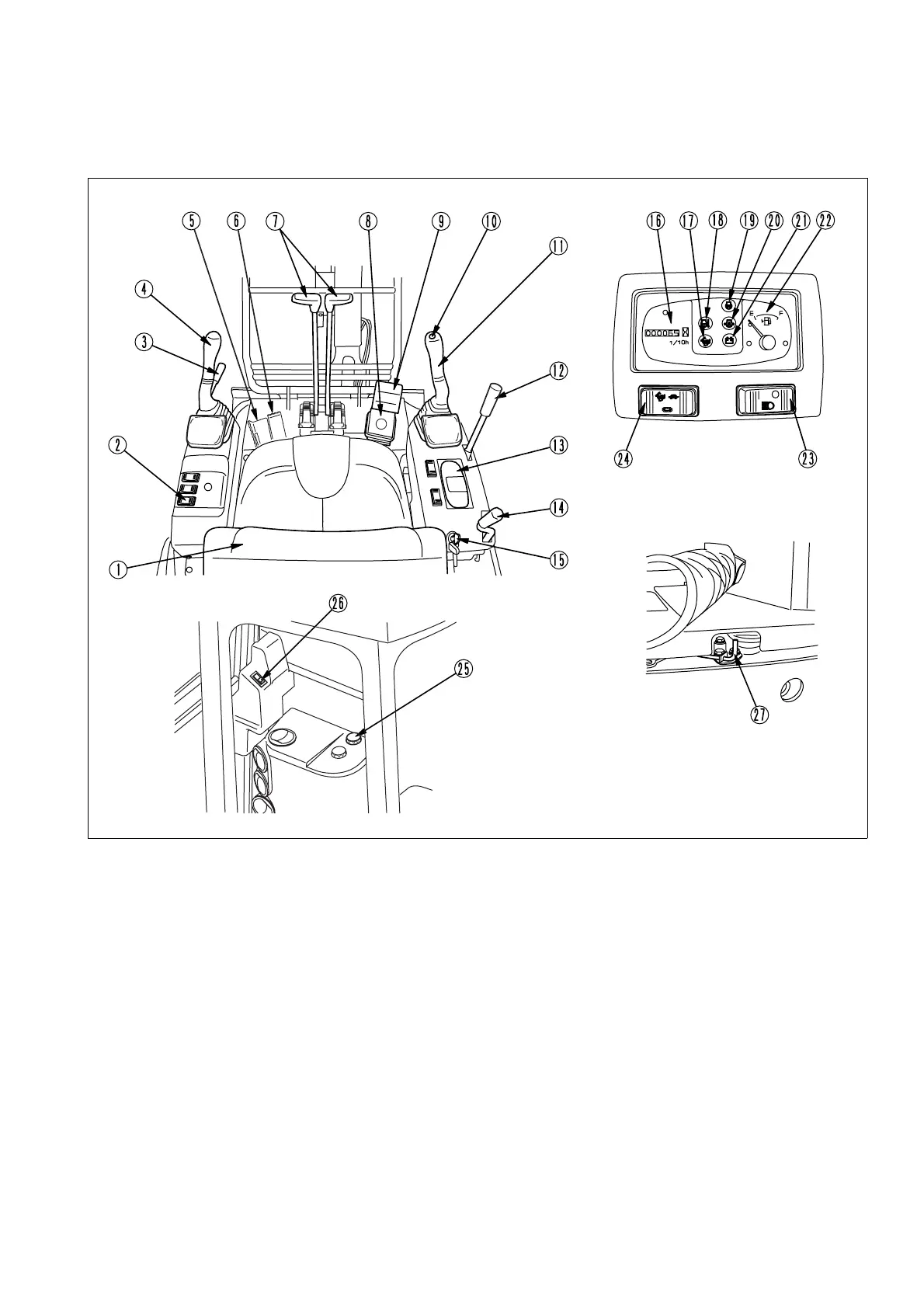

3.1.2 CONTROLS AND GAUGES
RKA22490
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
(14)
(15)
Operator seat
Scraper selector switch/variable width (if fitted)
Control locking lever
Tool control left lever
Pedal locking device
Optional tool control pedal
Travel levers
1
st
boom swing control pedal
Pedal locking device
Horn switch
Tool control right lever
Scraper control lever/variable width
Indicators and warning lights display
Accelerator lever
Start-up switch
(16)
(17)
(18)
(19)
(20)
(21)
(22)
(23)
(24)
(25)
(26)
(27)
Hour counter
Translation speed increase warning light
Engine water temperature warning light
Engine preheat warning light
Engine oil pressure warning light
Load level warning light
Fuel gauge
Light switch
Translation speed selector switch (if fitted)
Cab heating and ventilation switch
(machines with cab)
Windscreen wiper switch (machines with cab)
Platform locking lever (machines with cab)
