3.2.1.2 GAUGES

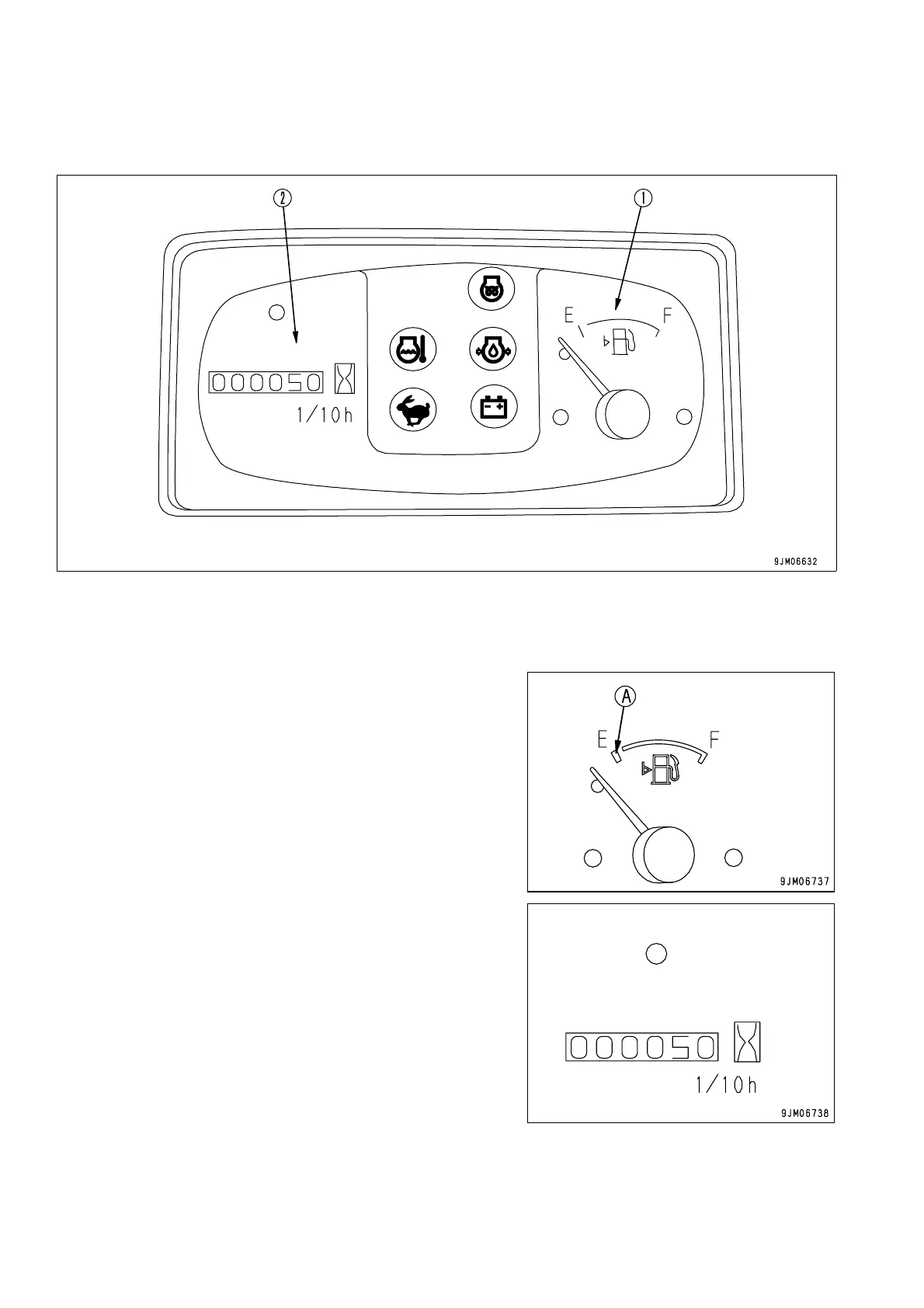

1. Fuel gauge
It indicates the fuel level in the tank and functions only when the
ignition key is in position ON (see "3.2.2 pos. 1. Ignition switch").
F: maximum level.
E: minimum level.
If the quantity of fuel in the tank is less than 3.3 litres, the indicator
reaches the red reserve area (A).
NOTE
q If the indicator reaches the red reserve area (A) during use,
stop the machine and provide for refuelling.
2. Hour meter
This instrument indicates the total number of operating hours of
the engine. The count is continuous and the hour number is
increased by 0.1 when the engine has worked for 0.1 hour (6
minutes), independently of the engine speed. When the engine is
running, the LED positioned on the hour meter comes on,
indicating that the count is proceeding.
If the engine is on, the hour meter keeps counting even if the
machine is not working. The reading of the hour meter must be
used as reference for the machine maintenance intervals.
(1)
Fuel gauge
(2)
Hour meter
