USE OF THE MACHINE AND RELATED CONTROLS
WEAM009300 137
3.3.14 CHANGING THE BUCKET
WARNING
q When the coupling pins are removed or installed, chips may come off; always use gloves, goggles and
helmet.
q The change of the equipment must be carried out by two operators, who must decide together the words
and signals to be used during work.
q Avoid using your fingers to align the holes, since they may be cut off in case of sudden or uncontrolled
movements.
q The described procedures are valid also for the coupling of the mechanical connections of the optional
equipment.

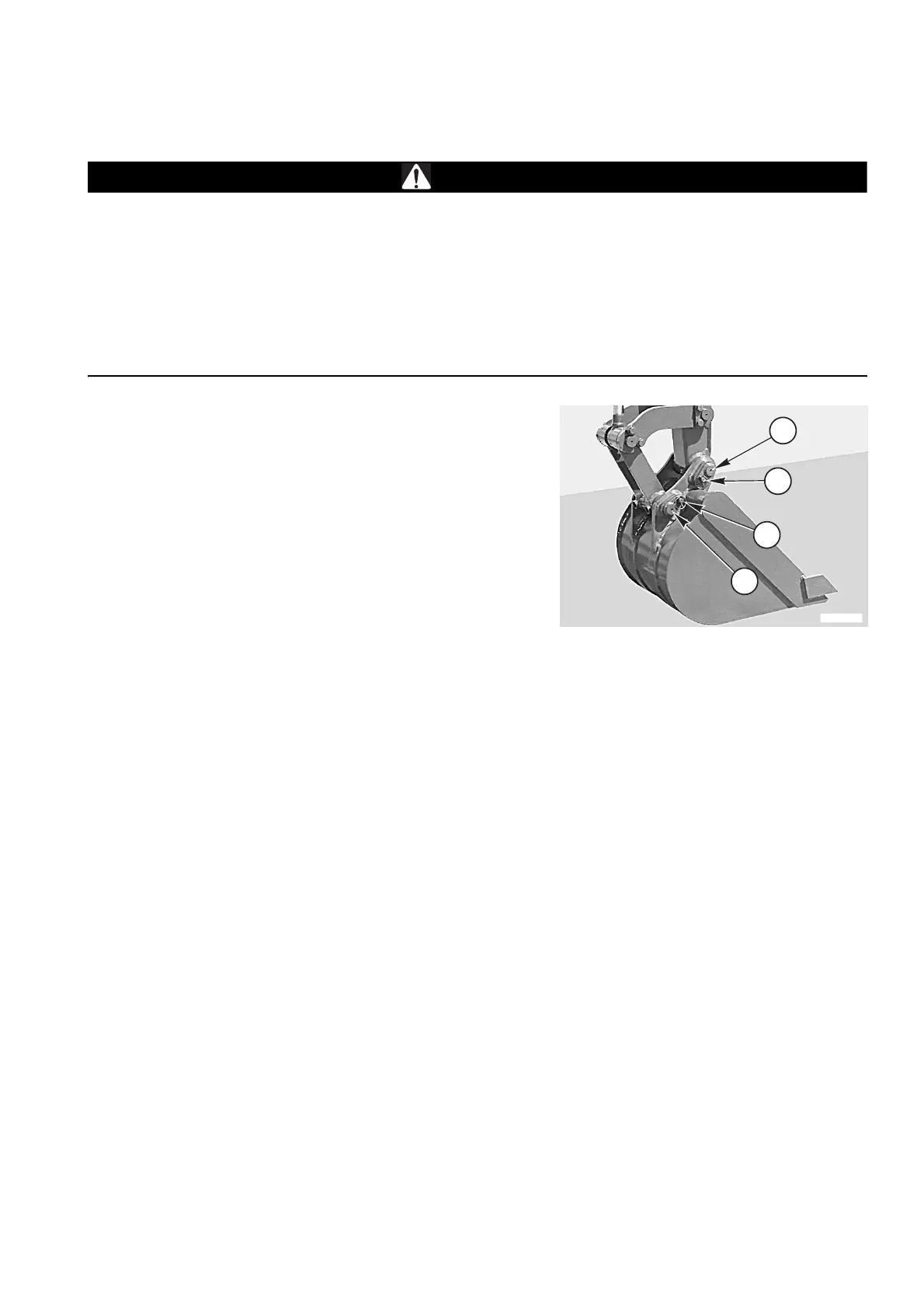

1. Position the bucket on level ground, directing it so that the flat
part of its back rests on the ground.
2. Remove first the tie-rod pin (1) and then the arm connection
pin (2).
3. Change the bucket, taking care to clean the pins, the
bushings and the seals perfectly and to grease the pins
slightly before reinstalling them.
IMPORTANT
q Install first the arm connection pin, making sure that the
seals are in good conditions.
4. Put back all the safety pins (3) and lubricate by means of the
appropriate grease nipple.
1
3
2
3
RWAA0950
