INSTRUMENTS AND CONTROLS
WEAM009300 67

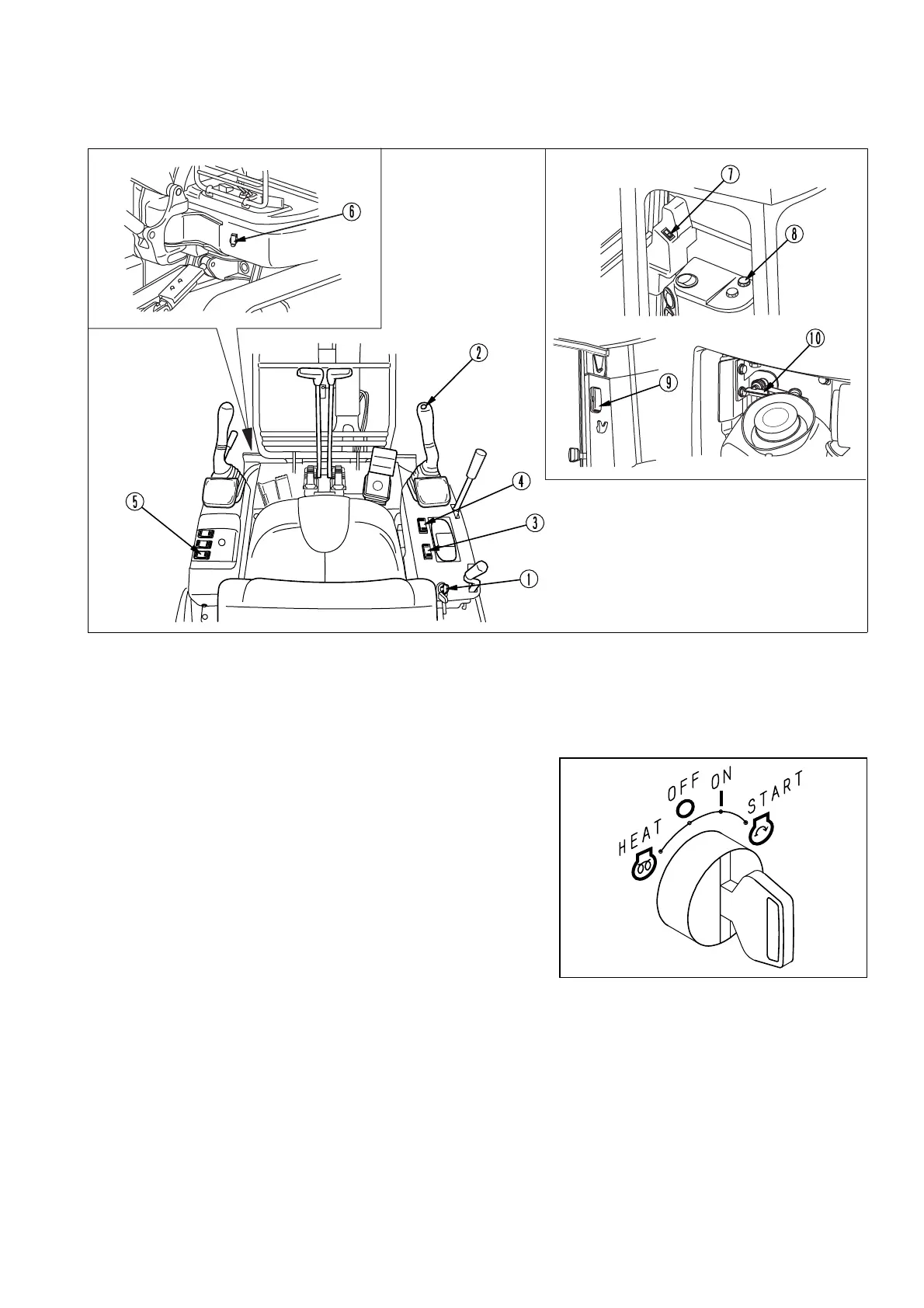

3.2.2 SWITCHES AND PUSH BUTTONS
1. Ignition switch
This is a four-position rotary switch and is used to switch the
engine on and off.
q Position OFF
When the switch is in this position, the ignition key can be
inserted and removed. When the key is turned to this position,
the power supply to the electric circuit is interrupted and the
engine stops.
q Position ON
The load and light circuits are under voltage. Keep the key in
this position when the engine is on.
q Position START
This is the ignition position. Keep the key in this position to make the starter run. As soon as the engine starts,
release the key, which will automatically return to position ON.
q Position HEAT (preheating)
When starting the engine in cold weather, turn the key to position HEAT for approximately 10 seconds, until the
corresponding warning light goes out. Release the key, which will automatically return to position OFF. Start the
engine by rotating the key to position START.
IMPORTANT
q If the engine has stopped due to lack of fuel, start it by proceeding as follows: turn the ignition switch to
position ON, wait for 15 seconds and then turn the key to position START.
RKA22500
(1)
(2)
(3)
(4)
(5)
Start-up switch
Horn
Light switch
Translation speed selector switch (if available)
Blade selector switch/variable width (if available)
(6)
(7)
(8)
(9)
(10)
Power socket
Windscreen wiper switch (machines with cab)
Heating and ventilation switch (machines with cab)
Overhead lamp (machines with cab)
Battery main switch
RYA16920
