MACHINE ILLUSTRATIONS

60

WEAM009300

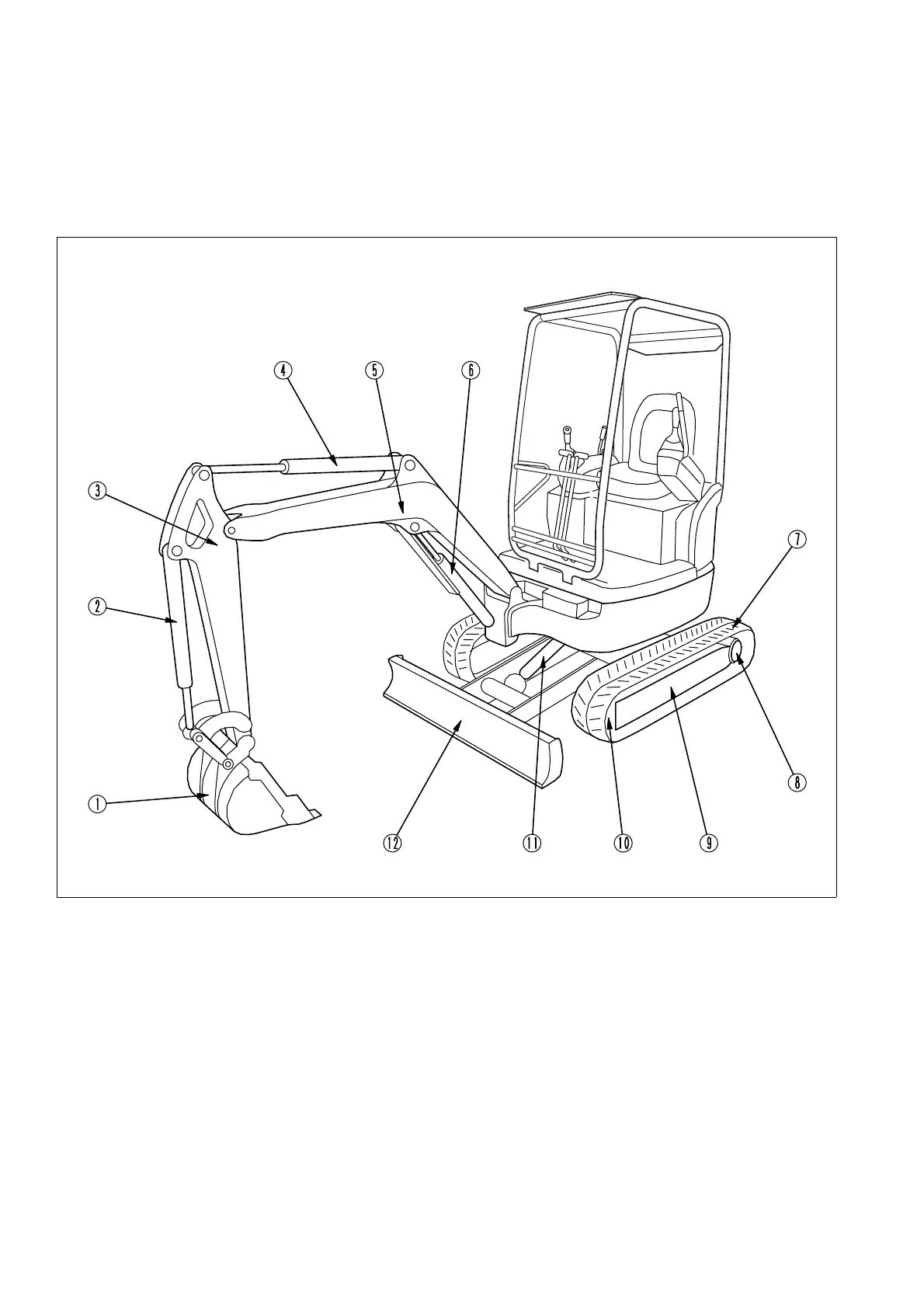

3.1 MACHINE ILLUSTRATIONS

3.1.1 OVERALL VIEW OF THE MACHINE

RKA22480

(1)

(2)

(3)

(4)

(5)

(6)

Bucket

Bucket cylinder

Arm

Arm cylinder

Boom

Boom cylinder

(7)

(8)

(9)

(10)

(11)

(12)

Track

Sprocket

Undercarriage

Idler roller

Cylinder blade

Blade
