Komatsu PC14R-3 User Manual

INSTRUMENTS AND CONTROLS
WEAM009300 97

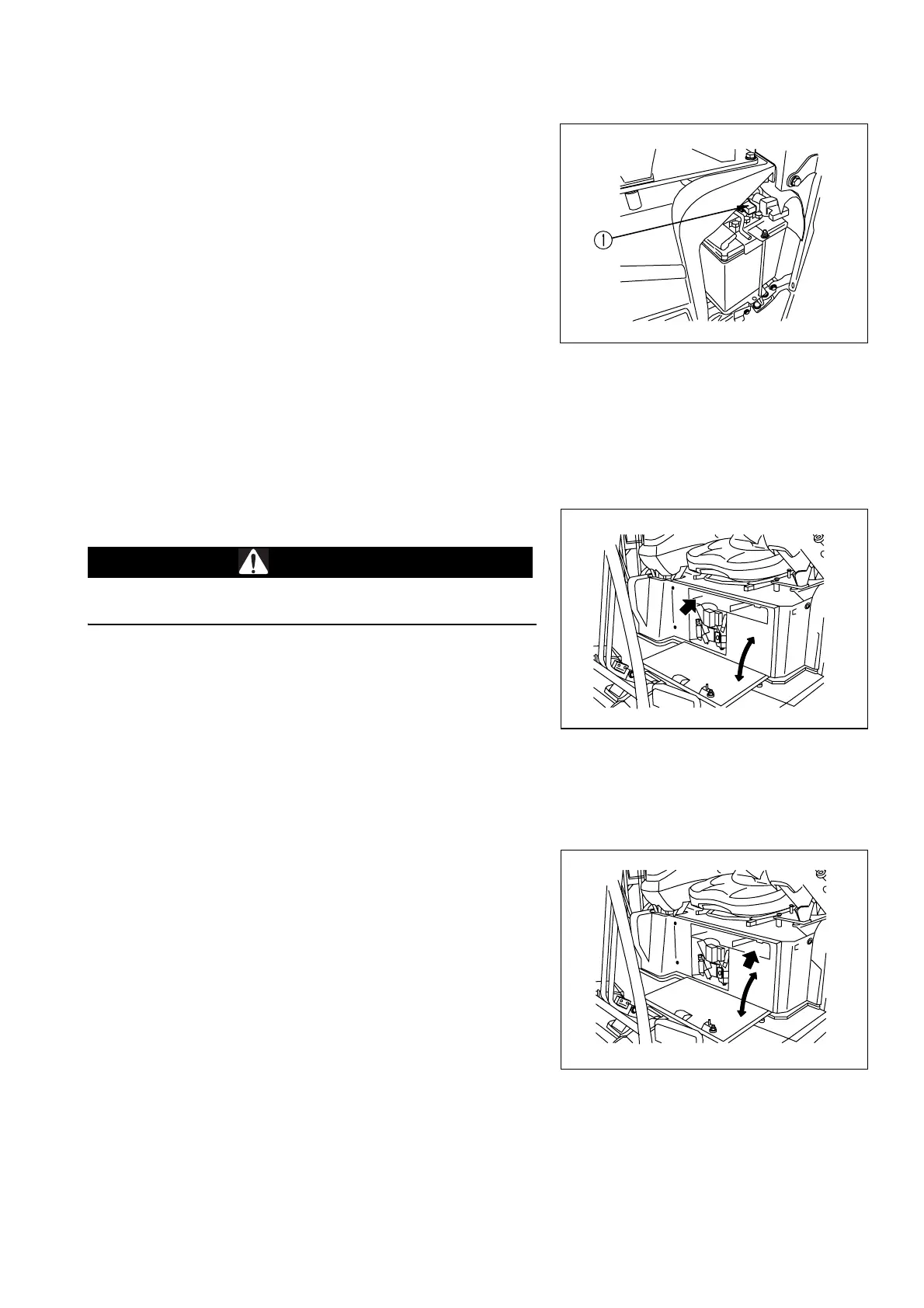

3.2.12 MAIN FUSE
IMPORTANT
q When changing a fuse, make sure that the ignition key is in
position OFF.
If the starter does not run when the ignition switch is turned to
position ON, the fuse (1) may have blown. Open the cover on the
left side of the machine to check the fuse and change it if
necessary. The main fuse is positioned on the battery.
For further details on how to open and close the cover on the left
side of the machine, see "3.2.8 BATTERY COVER".
NOTE
q The main fuse is the high-capacity fuse installed to protect the
electric components and the wiring.
3.2.13 TECHNICAL DOCUMENTATION
COMPARTMENT
CAUTION
q The use and maintenance manual is an integral part of the
machine and must accompany it even in case of resale.
The use and maintenance manual must be stored with care and
always kept on board the machine, so that it can be consulted at
any moment; it must be placed in the technical documentation
compartment inside the seat support.
3.2.14 TOOL BOX
The tool box is positioned inside the seat support and can be
reached by opening the front panel.
RKA22800
RKA22810
RKA22820
